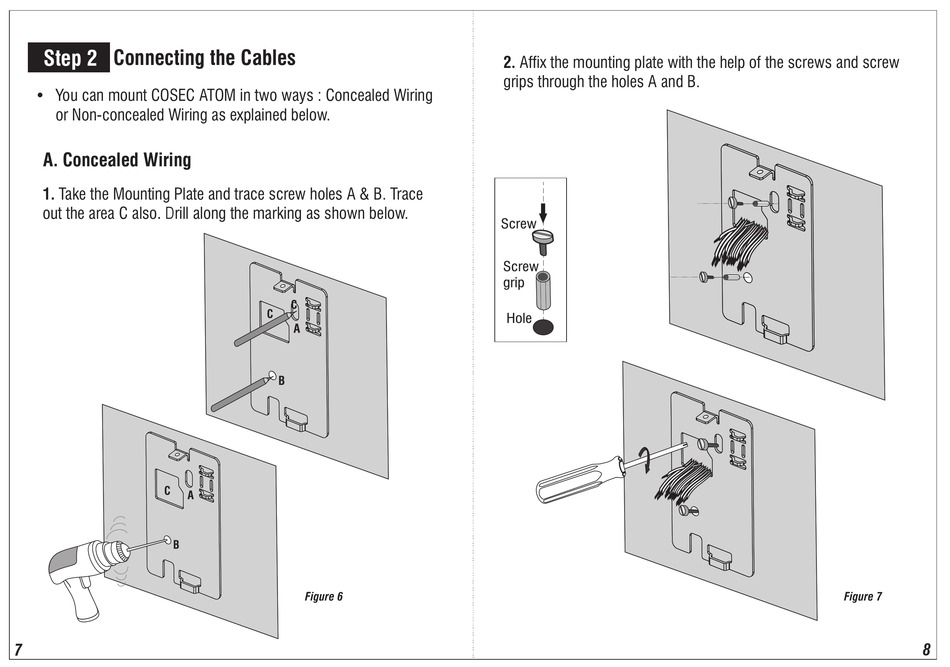

Step 2 Connecting the Cables
Ÿ You can mount COSEC ATOM in two ways : Concealed Wiring
or Non-concealed Wiring as explained below.
A. Concealed Wiring
1. Take the Mounting Plate and trace screw holes A & B. Trace
out the area C also. Drill along the marking as shown below.
C
A
B
7
C
C
A
B
Figure 6
2. Affix the mounting plate with the help of the screws and screw
grips through the holes A and B.
Figure 7
