Matrix COSEC ATOM RD100 Quick Installation Manual page 6

2. Unscrew the Back Plate screw with the help of screwdriver and
remove the Back Plate.

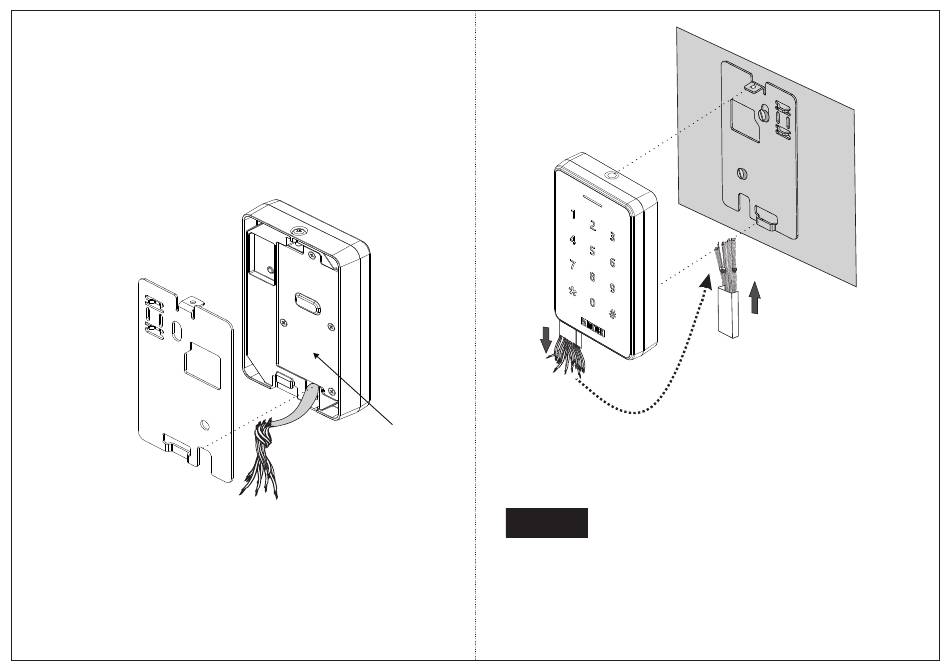

3.Pull out the Cables from the Back Plate hole and lead the cables
outside from the bottom opening of COSEC ATOM, as illustrated
in Figure 10.
4. Connect the necessary cables and align the COSEC ATOM
body with the Mounting Plate.
11
Back Plate
Figure 10
1. Fix the Reader body with the mounting plate such as the
mounting slots of the Reader and Mounting plate align with each
other.
Inserting Mounting Screw
Step 3
Figure 11
12
