1

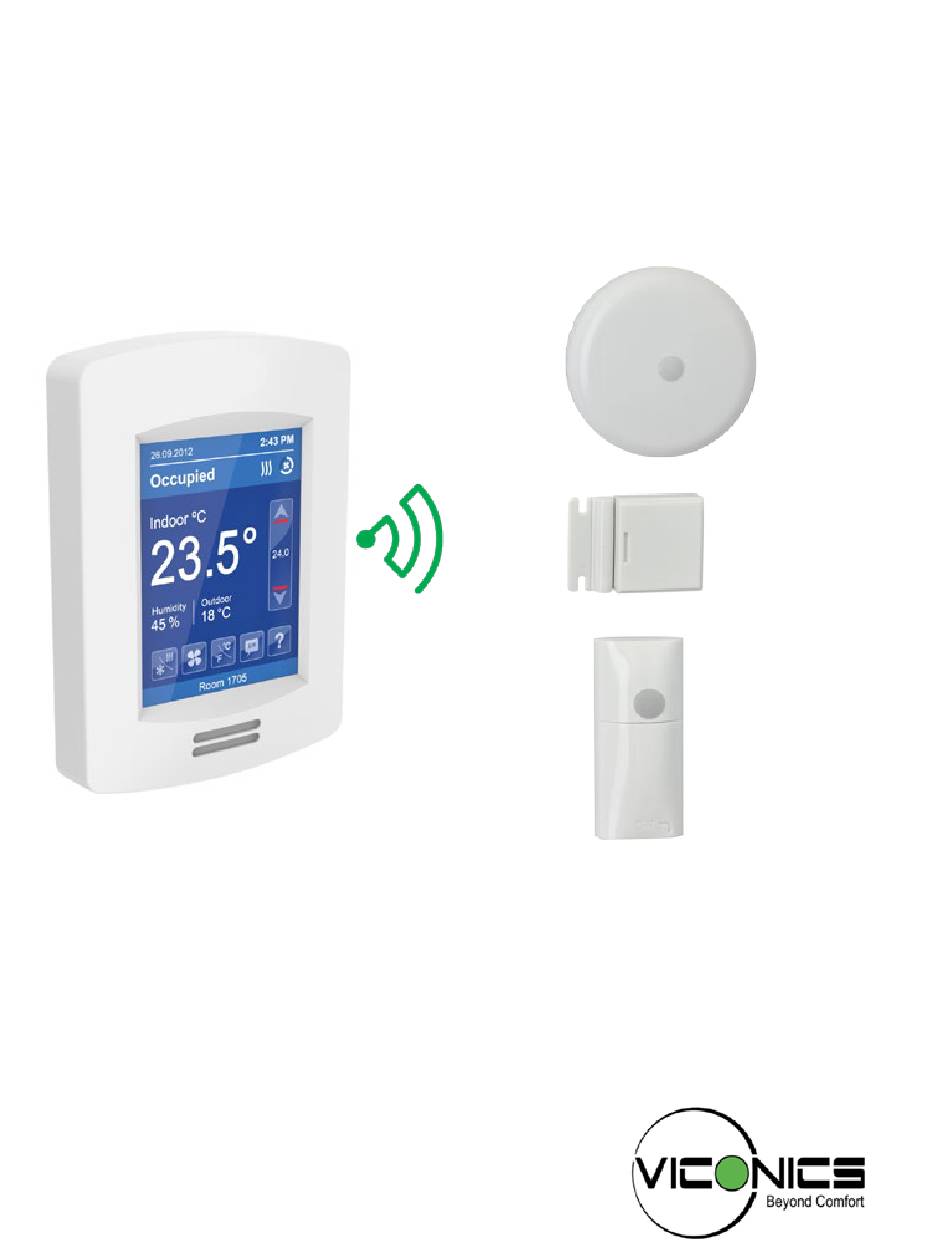

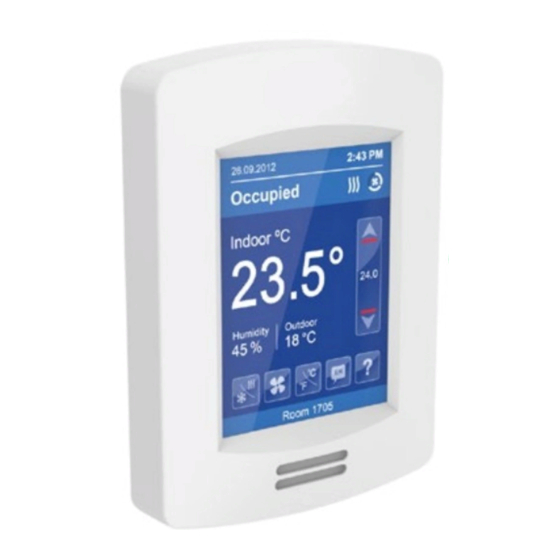

Pairing VT8000 Series Room Controllers
with ZigBee Sensors
Installation Guide and Procedure
Commercial and Hotel/Lodging HVAC Fan Coil Applications

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pairing VT8000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Viconics Pairing VT8000 Series

Summary of Contents for Viconics Pairing VT8000 Series

  • Page 1 Pairing VT8000 Series Room Controllers with ZigBee Sensors Installation Guide and Procedure Commercial and Hotel/Lodging HVAC Fan Coil Applications...

  • Page 2: Quick Setup

    For door sensor, set UI17 to Door Dry. Physically install the sensor. TROUBLESHOOTING If the short procedure described here is insufficient or an MPM or Room Controller needs to be configured, refer to the full procedure described later in this document. Viconics Technologies Inc. 028-0450-00 November 2014...

  • Page 3: Installation Steps

    2. Set the parameters for the MPM. 3. Set Permit Join to On in the Room Controller and MPM 4. Pair the Sensor with the Room Controller 5. Install the Sensor at the selected location (see Installation Guide). Viconics Technologies Inc. 028-0450-00 November 2014...
  • Page 4 This value should be 499 or less if the Room Controller is to be part of a network of Room Controllers, and 500 or greater if the Room Controller will be stand-alone. Select ZigBee channel. Using the up/down arrows, enter the channel number. Select the Back to Setup icon Viconics Technologies Inc. 028-0450-00 November 2014...
  • Page 5 Type the default address in the address bar (10.50.80.3 for MPM-GW and MPM-UN, 10.50.80.4 for MPM-VA). Verify Building Expert login page shows. Select Language (default English). Enter User name (default ‘admin’). Enter Password (default ‘admin’). Click on Login. Viconics Technologies Inc. 028-0450-00 November 2014...
  • Page 6 Click on Devices window, and select your MPM. Then scroll down the main Explorer tab window and select ZigBee Configuration. Click Configuration tab of the main window and go to ZigBee Settings (ZBC1) section. Viconics Technologies Inc. 028-0450-00 November 2014...
  • Page 7 Set PAN ID (dec) to a value matching the pan. ID value set on the Room Controller. 10. Set Stack Profile to 2 - ZigBee_Pro. 11. Set Security Profile to Home Automation 12. Click Save. Viconics Technologies Inc. 028-0450-00 November 2014...

  • Page 8: Add Device

    NOTE: The device model selected from the device list must be identical to the model number of your device. Click the Add Devices button. Building Expert automatically adds the device to your Room Controller. Viconics Technologies Inc. 028-0450-00 November 2014...
  • Page 9 Set Parameters for MPM BIND AND CONFIGURE ZIGBEE PRO ONLINE FOR VT8000 SERIES In Devices pane, select the newly added device. Navigate down the page to ZigBee Room Controller Configuration on the Explorer tab. Viconics Technologies Inc. 028-0450-00 November 2014...
  • Page 10 In the Select device window, select the device you want to bind with your MPM. Click Bind device. Building Expert adds the device’s Extended Node ID and COM Address information to the selected Room Controller in the device list. Viconics Technologies Inc. 028-0450-00 November 2014...
  • Page 11 For more information on which points to select and what they represent in terms of Room Controller functionality, refer to the VTR8300/ VT8300 Series BACnet Integration guide, or the VT8600 Series BACnet Integration guide. Viconics Technologies Inc. 028-0450-00 November 2014...
  • Page 12 B a t t er y al ar m O f f Pe r m it jo in Pe r mit joi n • For MPMs, Permit Join is one of the ZigBee settings accessible as described previously. Viconics Technologies Inc. 028-0450-00 November 2014...
  • Page 13 For this reason, make sure you never have more than one Room Controller at a time with an empty Zone screen open in the interface ready to pair with a ZigBee sensor. Viconics Technologies Inc. 028-0450-00 November 2014...
  • Page 14 A t ta c h S tp Note that these functions are not interchangeable; only UI16 can enable the window contact sensor functions for the Room Controller, and only UI17 can enable the door contact functions for the Room Controller. Viconics Technologies Inc. 028-0450-00 November 2014...
  • Page 15 Once the pairing procedure is complete, proceed with the physical installation of your ZigBee sensor(s) according to the instructions in the Installation Guide appropriate to the model(s) of ZigBee sensor(s) you are using. Viconics Technologies Inc. 028-0450-00 November 2014...

  • Page 16: Appendix A Binding Zigbee Sensors To Room Controllers In Network With Multiple Mpms

    Router Coordinator (MPM) (MPM) (MPM) PAN ID: 3 PAN ID: 2 PAN ID: 1 Room Room Room Controller Controller Controller PAN ID: 4 PAN ID: 5 PAN ID: 6 ZigBee end devices NON FUNCTIONAL Viconics Technologies Inc. 028-0450-00 November 2014...
  • Page 17 Coordinator Coordinator (MPM) (MPM) PAN ID: 1 PAN ID: 2 Room Room Room Controller Controller Controller PAN ID: 5 PAN ID: 3 PAN ID: 4 ZigBee ZigBee ZigBee end devices end devices end devices Viconics Technologies Inc. 028-0450-00 November 2014...
