VT8000 Room Controllers
CO2 + TRH Sensor Installation Guide

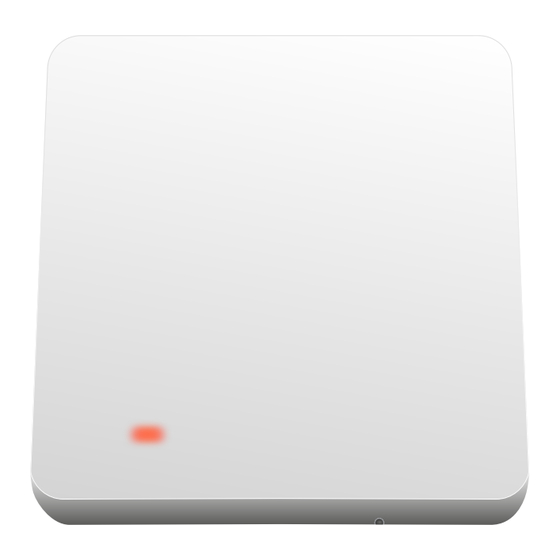

Wireless CO2, Temperature and Humidity Sensor
Version 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VT8000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Viconics VT8000

Summary of Contents for Viconics VT8000

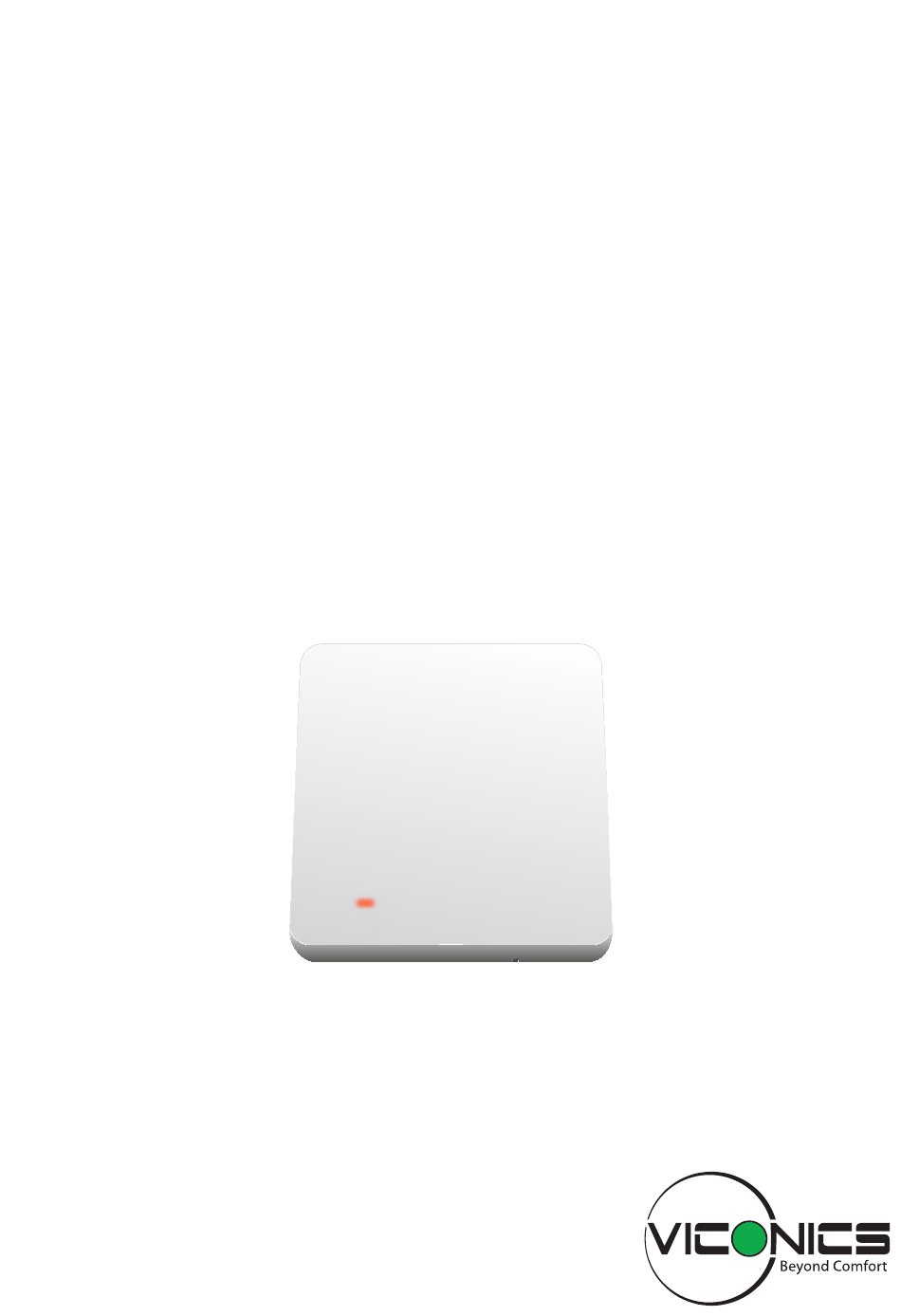

  • Page 1 VT8000 Room Controllers CO2 + TRH Sensor Installation Guide Wireless CO2, Temperature and Humidity Sensor Version 4...

  • Page 2: Box Contents

    • Two screws for wall-mounting bracket • Installation guide System Requirements When used with a Schneider Electric VT8000 Room Controller, it requires at least: • Firmware version: 1.7 • Zigbee VCM version: 10 The maximum number of sensors supported by the VT8000 Room Controller is: •...

  • Page 3: Installation

    VT8000 CO2 + TRH Sensor Installation Guide Installation The wireless CO + TRH sensor can be secured directly on a wall or flat surface using double-sided adhesive tape (Figure 2), or by securing the plastic bracket to the wall (Figure 1) and mounting the sensor (Figure 3). Using the screws is the recommended method.
  • Page 4 VT8000 CO2 + TRH Sensor Installation Guide 3. Ensure click sound is heard to verify sensor is secured to bracket and ensure side tab of bracket is aligned with opening on side of sensor (Figure 3). ZigBee Figure 3 De-mounting the sensor from the wall bracket To remove the sensor from the wall bracket, press on the side tab as circled in Figure 3 and slide the sensor up and then out.
  • Page 5 VT8000 CO2 + TRH Sensor Installation Guide Push button The push button can be pressed through a hole from the bottom side of the sensor, with a slim tool (Figure 4). Each recorded button press is signaled by 2 yellow LED flashes.

  • Page 6: Compliance Statements

    VT8000 CO2 + TRH Sensor Installation Guide Compliance Statements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • this device may not cause harmful interference • this device must accept any interference received, including interference that may cause undesired operation Changes or modifications not approved by the manufacturer could void the user’s authority to operate the equipment.

This manual is also suitable for:

Sed-co2-g-5045 and sed-trh-g-5045
