Summary of Contents for Viconics VT8000

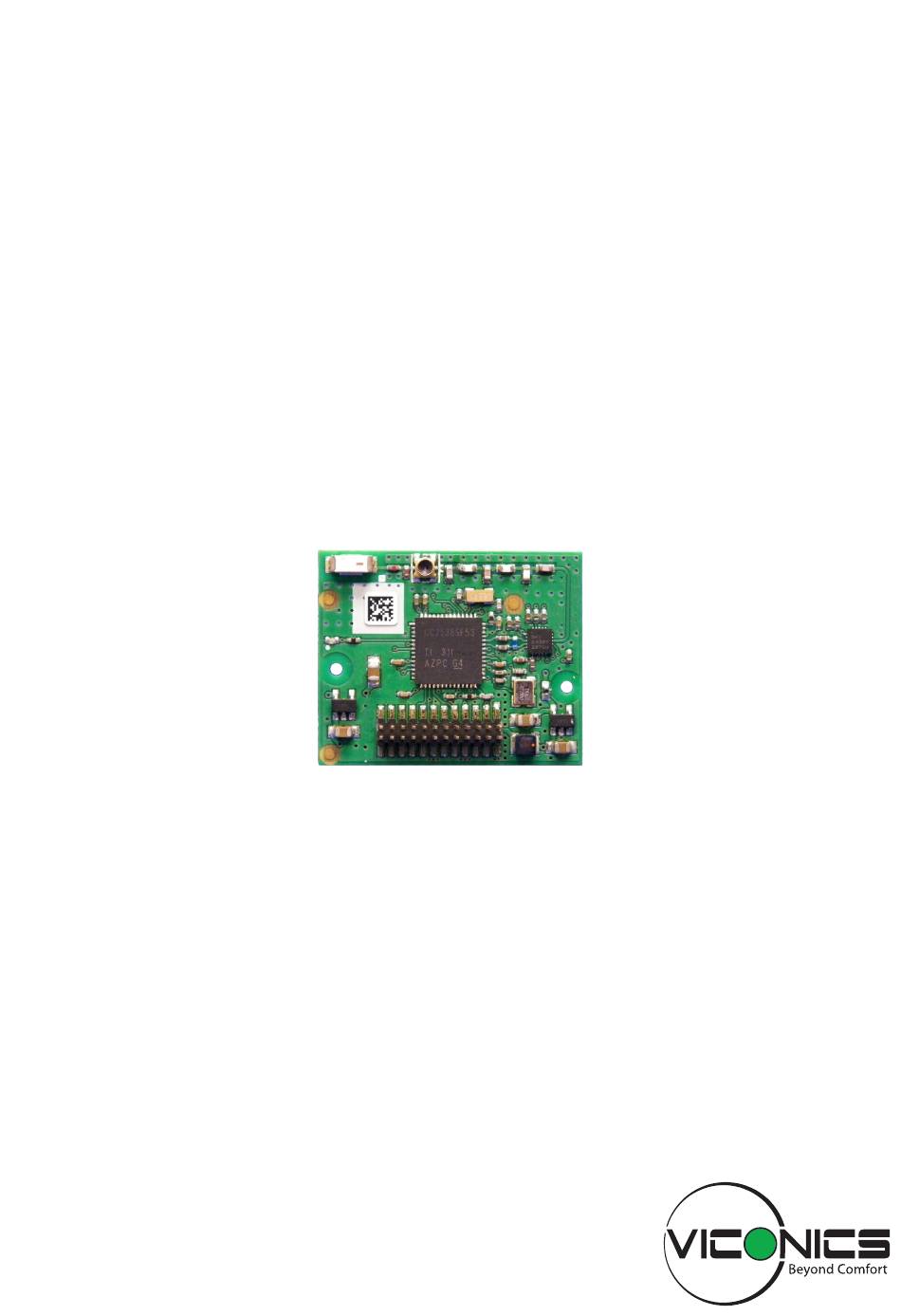

Page 1

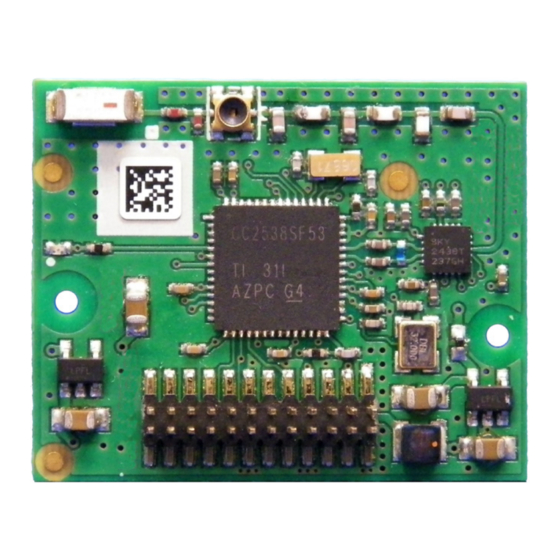

VT8000 Room Controllers VT8000 ZigBee Pro Module Installation Guide VCM8000V5045P Version 4...
Page 2
ZigBee Pro Module Installation Guide Installation This guide shows you how to install the ZigBee Pro wireless module with a VT8000 Room Controller. 1. Remove the security screw from the bottom of the Room Controller cover. 2. Open the unit by pulling on the bottom of the Room Controller (Figure 1).
Page 3
8. Physically install the sensor. Troubleshooting If the short procedure described here is insufficient or an MPM or Room Controller needs to be configured, please refer to the VT8000 Room Controllers ZigBee Sensors Integration Guide available on www.viconics.com. California Proposition 65...
