Delta marker measurement value
= Marker 1 - Marker 2
Marker 2

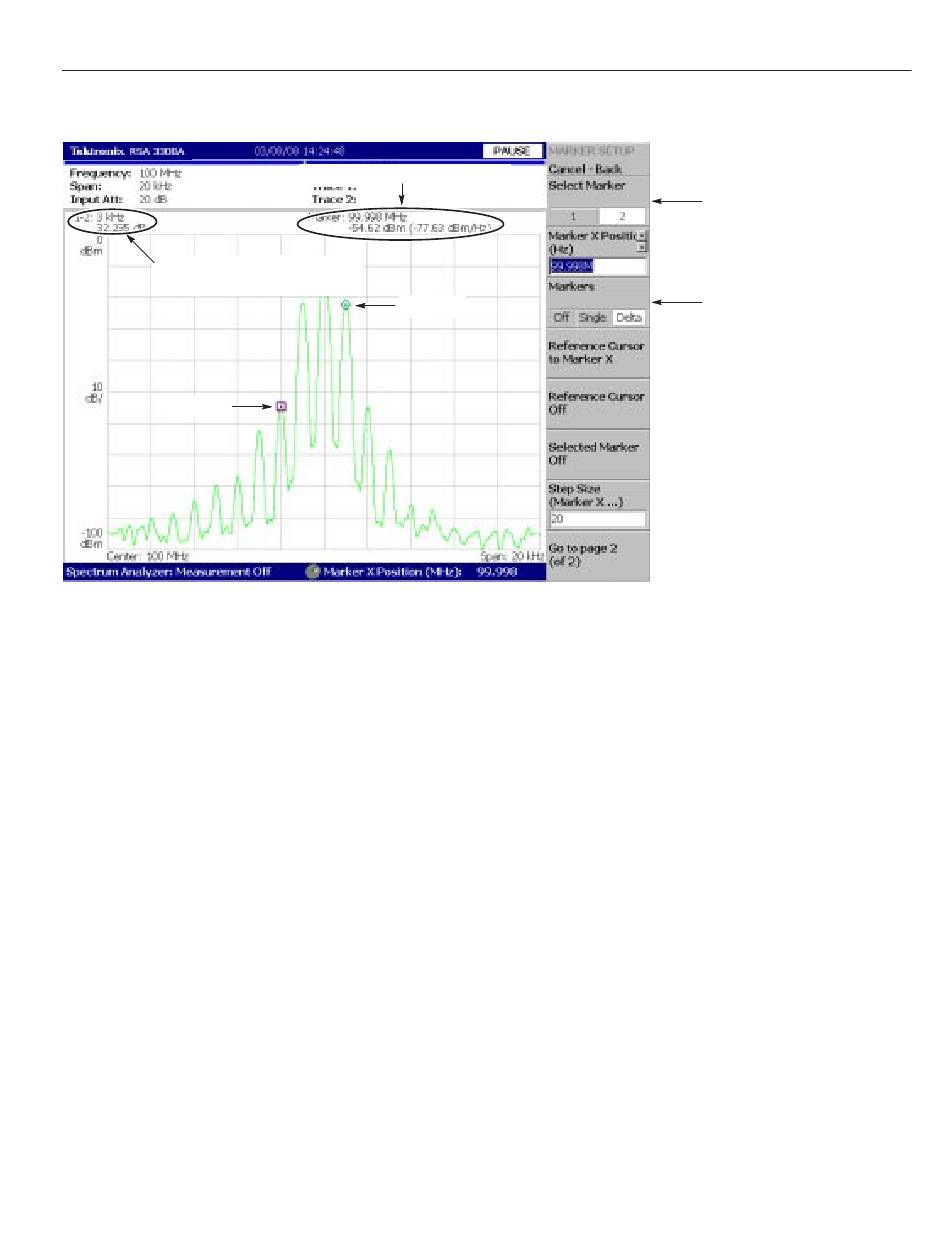

Figure 2-39: Measurement with the delta marker
RSA3303A & RSA3308A User Manual
Readout of the selected marker
Marker 1
5. Press the Select Marker side key (top) to select 2, making Marker 2 active.
You can also select the marker using the MARKERS: SELECT key on the
front panel. The MARKERS: SELECT key and the Select Marker side key
have the same function.
6. The Marker X Position menu item is selected. Using the general purpose
knob or the numeric input keypad, move the marker to a measurement point
(see Figure 2–39).
The difference between the two marker positions is indicated in the upper
left part of the screen:
7. Press the Markers side key to select Single.
The analyzer returns to the single marker mode.
Tutorial
Select Marker
Selects the active marker.
Markers
Delta is selected here to
show Marker 1 and 2.
