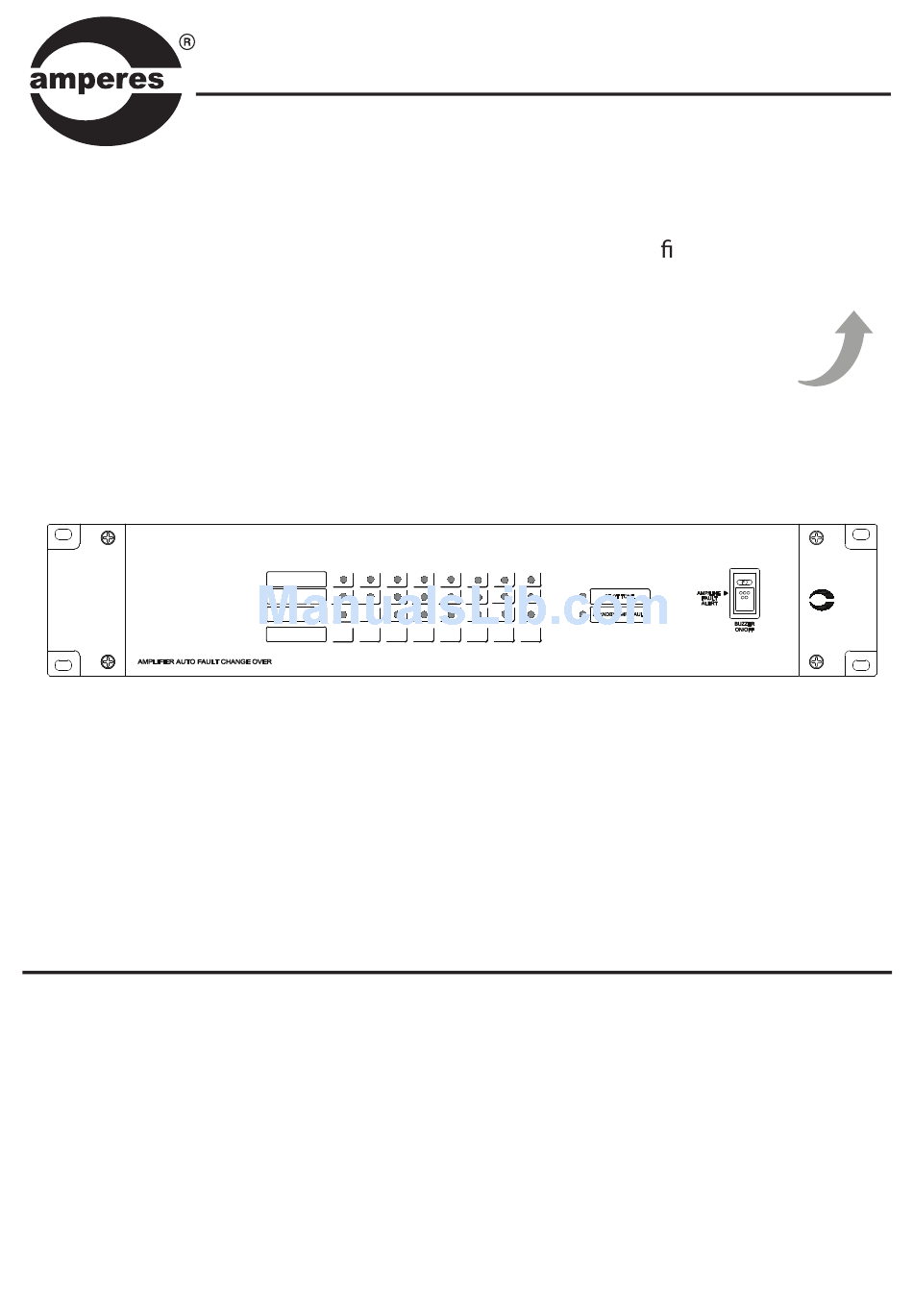

AX 3800
Thank you
for choosing another quality product from Amperes Electronics.

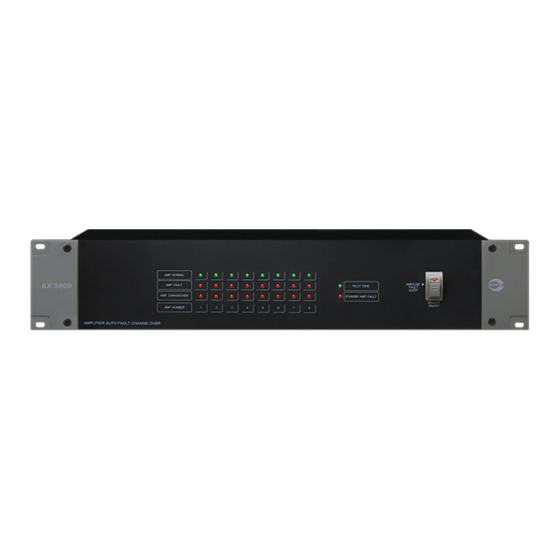

AX3800 provides a better way of a standby amplifier to overtake a failed duty unit automatically in PA installation. Packed
with efficient circuitry with features such as overload protection, interval Pilot Tone generation and data output for remote
monitoring, it shall be the right choice for setups with lesser human interaction in ensuring uninterrupted operation of PA
system.
Though it is rather simple in the installation works, a brief read through the manual is recommended and we are confident
that you are getting a product of excellence.
AMP. NORMAL
AMP. FAULT
AMP. CHANGEOVER
AMP. NUMBER
1
2
3
4
INSTRUCTION MANUAL
Auto Standby Ampli er Fault Changeover
PILOT TONE
STANDBY AMP. FAULT
5
6
6
7
8
AX3800
8 Duty / 1 Standby
IMPROVED
amperes
VER 3 / 2015
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Amperes AX3800
Summary of Contents for Amperes AX3800
- Page 1 Amperes Electronics. AX3800 provides a better way of a standby amplifier to overtake a failed duty unit automatically in PA installation. Packed with efficient circuitry with features such as overload protection, interval Pilot Tone generation and data output for remote monitoring, it shall be the right choice for setups with lesser human interaction in ensuring uninterrupted operation of PA system.
-
Page 2: Parts Identification
Pilot tone shall be sent at intervals to every channel of amplifier inputs. Whenever this is sent, the LED shall lit. 6. FAULT BUZZER Whenever a faulty channel is detected, a buzzer shall be activated and the alarm can be switched off while the red LED shall remain on. PAGE 2 AX3800 | AUTO STANDBY AMPLIFIER FAULT CHANGEOVER... - Page 3 15. CASCADE LINK Two or more of AX3800 can be used when only a standby amplifier is available to serve more than 8 duty units. Use this link in when more then one AX3800 is used in the system. Please refer to the section " Cascading more than one unit ".
- Page 4 General Schematic 1 : Single Source Setup PAGE 4 AX3800 | AUTO STANDBY AMPLIFIER FAULT CHANGEOVER...
- Page 5 General Schematic 2: Multiple Source Setup / Matrix AX3800 | AUTO STANDBY AMPLIFIER FAULT CHANGEOVER PAGE 5...
- Page 6 NOTE : Input and Output signal from AX3800 shall have unity gain. Therefore a single source shall be limited to max 6 output channels. If a source were to be connected to more than 6 amplifiers, it is recommended that a distribution amplifier is used before connecting it to the AX3800 input port.
- Page 7 AX3800 can be remotely monitored by PMX II LAN software RS485 output from AX3800 shall be connected to iPX5500 comm box, which is a UART - Ethernet convertor. AX3800 | AUTO STANDBY AMPLIFIER FAULT CHANGEOVER PAGE 7...
- Page 8 Cascading AX3800 When there is only one standby amplifier to serve more than 8 duty units, more than one AX3800 shall be used to serve the purpose. All other settings as shown earlier shall apply FAULT STANDBY CONT. 3A NO...
-
Page 9: How It Works
Although in principle most auto fault changeover works similarly in detecting faulty amplifiers, you may find some difference in how AX3800 operates. AX3800 sends out Pilot Tone of 20 KHz at intervals and shift from channel to channel. This reduces strain at the amplifiers in which continuous loading is avoided. Though some slight delay may occur during the detection period, this shall be beneficial in the long run. - Page 10 After channel 6, switch on the power amp in sequence from Ch6 to 1 and the results shall be as opposite to the earlier procedures. PAGE 10 AX3800 | AUTO STANDBY AMPLIFIER FAULT CHANGEOVER...
-
Page 11: Summary Of Features
Dimensions ( WxHxD ) 482 x 88 x 180 mm Weight 2.85 kg Note: The above specifications are correct at time of printing but subjected to changes without prior notice due to product improvements. AX3800 | AUTO STANDBY AMPLIFIER FAULT CHANGEOVER PAGE 11... -
Page 12: Warranty Conditions
Only Amperes Electronics Service Centres are allowed to make warranty repairs : a list of Amperes Electronics Service Centres may be asked for by the purchaser or send directly to Amperes Electronics Sdn Bhd at 70 Jalan Industri PBP 3, Tmn Perindustrian Pusat Bandar Puchong, 47100, Puchong, Selangor, Malaysia or its authorized master distributor, TNT Links Sdn Bhd / MyPA Systems Sdn Bhd.
