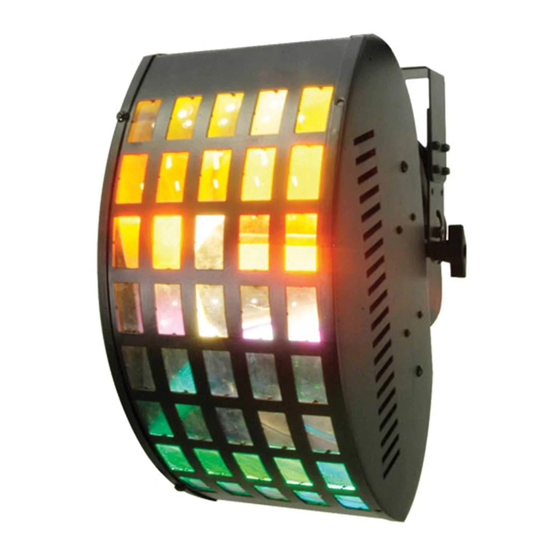

Page 1: User Manual
Stepper™ Snapshot Ok on Dimmer Outdoor OK Sound Activated DMX/Master/Slave 115V/230V Switch Replaceable Fuse User Serviceable USER MANUAL Chauvet, 3000 N 29 Ct, Hollywood, FL 33020 U.S.A. (800) 762-1084 . (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com... -
Page 2: Table Of Contents
Fixture Linking ... 10 DMX Q ... 11 UICK EFERENCE HART DMX C ... 12 HANNEL ALUES ... 12 AINTENANCE ... 13 ENERAL ROUBLESHOOTING ... 14 ROUBLESHOOTING ... 14 ETURNS ROCEDURE ... 14 LAIMS ... 15 ECHNICAL PECIFICATIONS Stepper User Manual 2006-12-12/09:53... -
Page 3: Before You Begin
There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact CHAUVET at: 954-929-1115. Stepper User Manual Figure 1 - AC Voltage Switch Not all fixtures have a voltage select switch. -
Page 4: Introduction
Additional Features 40 white lenses with a 4-color drum that rotates and shakes Linkable with Kinta™ & Oceana™ Automatically enters stand-alone when no DMX signal is present Fan cooled DMX Channel Summary Channel Function Rotate Strobe Stepper User Manual 2006-12-12/09:53... -
Page 5: Product Overview
Product Overview DMX Channel Select Stepper User Manual Lamp Access Safety Hook Hanging Bracket AC Voltage Switch DMX Input Connector DMX Output Connector Sound Sensitivity Wired Remote Built-in Microphone IEC Power Connector & Fuse Compartment Chassis Ground 2006-12-12/09:53... -
Page 6: Setup
Hold lamp with a napkin as indicated in Figure 3, and pull directly away from the base plate. Hold new lamp with a lint-free cloth and insert directly into socket. Replace top cover. Figure 2 Stepper User Manual Lamp Cover Screws Figure 1 Figure 3 2006-12-12/09:53... -
Page 7: Mounting
Note: a spare fuse is included with this fixture in the fuse compartment. Insert the fuse holder back in its place. Reconnect the power cord. Stepper User Manual Hanging Clamp (sold separately) 2006-12-12/09:53... -
Page 8: Operating Instructions
The Stand Alone mode is activated automatically when no DMX signal is sensed, or a controller is not connected. The Stepper will run through its built in programs as it listens to the sound. The optional CH-X wired controller also provides a blackout function. -
Page 9: Setting The Starting Address
Resolving address using simple math. Address 233 Stepper User Manual 233 – (128) = 105, Turn ON Dip # 8 105 – (64) = 41, Turn ON Dip # 7 41 – (32) = 9, Turn ON Dip # 6 9 –... -
Page 10: Appendix
3-pin XLR male-to-female connectors. The shield connection is pin 1, while pin 2 is Data Negative (S-) and pin 3 is Data positive (S+). CHAUVET carries 3-pin XLR DMX compliant cables: DMX-10 (33’), DMX- 4.5 (15’) and DMX-1.5 (5’) -
Page 11: Dmx Quick Reference Chart
30 62 94 126 158 190 222 254 286 318 350 382 414 446 478 510 1 1 1 1 1 31 63 95 127 159 191 223 255 287 319 351 383 415 447 479 511 Dip Switch Position Stepper User Manual Dip Switch Position DMX Address 2006-12-12/09:53... -
Page 12: Dmx Channel Values
Clean with soft cloth using normal glass cleaning fluid. Always dry the parts carefully. Clean the external optics at least every 20 days. Clean the internal optics at least every 30-60 days. Stepper User Manual Function Stop... -
Page 13: General Troubleshooting
Make sure connector is firmly connected to work device Stand alone mode All Chauvet lighting fixtures featuring stand- alone functions do not require additional settings, simply power the fixture and it will automatically enter into this mode Stepper User Manual... -
Page 14: Troubleshooting
Package must be clearly labeled with a Return Authorization Number (RA #). Products returned without an RA # will be refused. Call CHAUVET and request an RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 15: Technical Specifications
Data input ... locking 3-pin XLR male socket Data output ... locking 3-pin XLR female socket Data pin configuration... pin 1 shield (ground), pin 2 (-), pin 3 (+) Protocols... DMX-512 USITT DMX Channels...2 ORDERING INFORMATION Stepper ...STEPPER Blackout Controller ...CH-X Stepper User Manual 2006-12-12/09:53...
