Summary of Contents for Chauvet STRIKE 1

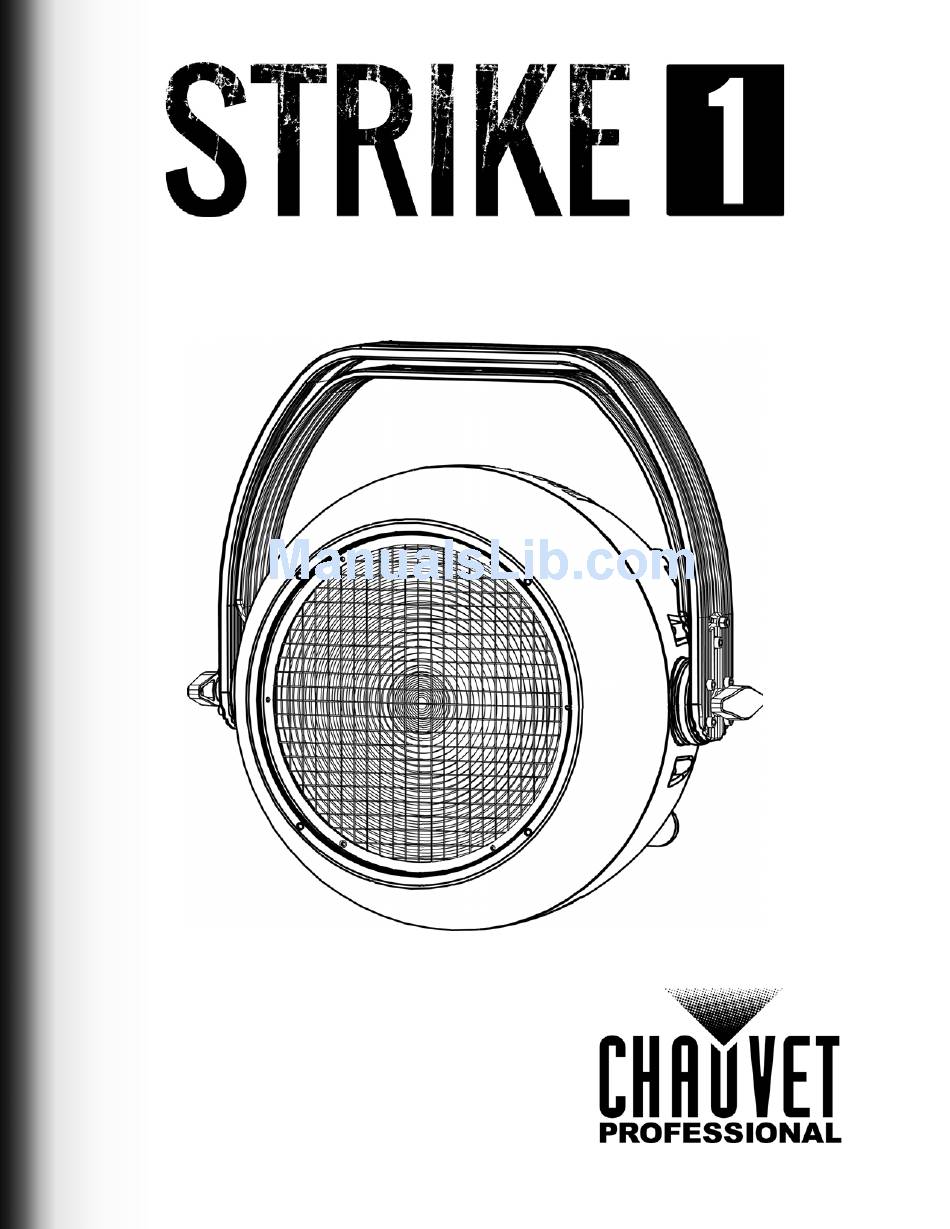

- Page 1 User Manual...
- Page 2 Chauvet reserves the right to revise the content of this document without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest version from www.chauvetprofessional.com.
-
Page 3: Table Of Contents
DMX Values ....................11 5 Ch..........................4 Ch..........................3 Ch..........................2 Ch..........................Configuration (Standalone) ................12 Static Mode ........................Auto Programs ....................... Red Shift ........................Master/Slave ........................Dimmer Profiles......................LED Frequency ......................STRIKE 1 User Manual Rev. 2 TOC 1... - Page 4 ABLE OF ONTENTS Fan Mode ........................Back Light ........................System Information ......................Factory Reset......................... 5. Technical Information ..............Product Maintenance ..................14 6. Technical Specifications ............Returns.................... Contact Us ..................TOC 2 STRIKE 1 User Manual Rev. 2...
-
Page 5: Before You Begin
If the box or the contents (the product and included accessories) appear damaged from shipping, or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. -
Page 6: Safety Notes
• In the event of a serious operation problem, stop using this product immediately! If your Chauvet product requires service, contact Chauvet Technical Support. Expected LED Lifespan LEDs gradually decline in brightness over time, primarily because of heat. LEDs that are arranged in clusters experience higher operating temperatures than single LEDs. -
Page 7: Introduction
Description The STRIKE 1 is a blinder powered by a 230 W warm white LED source. It can be used as a blinder, a strobe, or even a wide area flood light. The STRIKE 1 is IP65 rated and features an IP rated fan and IP rated power and DMX connections. -
Page 8: Product Dimensions
NTRODUCTION Product Dimensions 14.96 in 380 mm 14.61 in 371 mm 7.4 in 188 mm 9.25 in 11.69 in 235 mm 297 mm 12.52 in 318 mm Page 4 of 17 STRIKE 1 User Manual Rev. 2... -
Page 9: Setup
AC Power Each STRIKE 1 has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the power requirements for each STRIKE 1, refer to the label affixed to the product. -
Page 10: Remote Device Management (Rdm)
Master/Slave Connectivity The Master/Slave mode allows a STRIKE 1 (the master) to control one or more STRIKE 1 products (the slaves) without a DMX controller. One STRIKE 1 becomes the master when running an auto program, or by being in Static mode. -
Page 11: Strike 1 Multi-Bracket
ETUP STRIKE 1 Multi-Bracket Each STRIKE 1 comes with a Multi-Bracket that allows an array of STRIKE 1 products to be assembled together with ease. Each Multi-Bracket comes with a spacer bar that maintains the horizontal pixel pitch between each STRIKE 1 product, and a spacer that stabilizes the brackets. -
Page 12: Procedure
ETUP Procedure The STRIKE 1 comes with a double-bracketed yoke to which you can either attach the included Multi- Bracket or simply attach mounting clamps directly. You must supply the mounting clamps. Make sure the clamps are capable of supporting the weight of this product. Use at least one mounting point per product. -
Page 13: Operation
<DOWN> Navigates downward through the menu list or decreases the numeric value when in a function Control Options Set the STRIKE 1 starting address in the 001-512 DMX range. This enables control of up to 102 products in the 5-channel 5 Ch personality. -
Page 14: Configuration (Dmx)
Set the starting address: Go to DMX Address main level. Select the starting address (001–512). The highest recommended starting address for each DMX mode is as follows: DMX PERSONALITY DMX ADDRESS Page 10 of 17 STRIKE 1 User Manual Rev. 2... -
Page 15: Dmx Values
PERCENT/SETTING Dimmer 255 0–100% Fine Dimmer 255 0–100% Red Shift 255 Off 2 Ch CHANNEL FUNCTION VALUE PERCENT/SETTING Dimmer 255 0–100% Red Shift 255 Off STRIKE 1 User Manual Rev. 2 Page 11 of 17... -
Page 16: Configuration (Standalone)
The master should be the first product in the daisy chain. Dimmer Profiles This setting determines how fast the output of the STRIKE 1 changes when you modify the output value. This setting provides four different options to simulate the dimming curve of an incandescent lighting product. -
Page 17: Fan Mode
Back Light This setting allows for selection of the amount of time the backlight on the STRIKE 1’s display stays on after the last button is pressed on the control panel. Go to the Back Light main level. -
Page 18: Technical Information
Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Do not spin the cooling fan using compressed air because you could damage it. Page 14 of 17 STRIKE 1 User Manual Rev. 2... -
Page 19: Technical Specifications
EMPERATURE OOLING YSTEM 104 °F (40 °C) Fan-assisted convection I/O C ONNECTOR HANNEL ANGE 5-pin XLR 2, 3, 4 or 5 Ordering UPC N RODUCT UMBER STRIKE 1 03051214 781462215620 STRIKE 1 User Manual Rev. 2 Page 15 of 17... -
Page 20: Returns
ETURNS ETURNS Send the product prepaid, in the original box, and with the original packing and accessories. Chauvet will not issue call tags. Call Chauvet and request a Return Merchandise Authorization (RMA) number before shipping the product. Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return. -
Page 21: Contact Us
Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., United Kingdom, Ireland, Mexico or Benelux, contact the dealer of record. STRIKE 1 User Manual Rev. 2 Page 17 of 17...
