ProSoft Technology ProLinx ASCII Driver Manual page 16

ASCII ♦ ProLinx Standalone
Generic ASCII Serial Communication Module
Termination Type Field
Bit(s)
Bit Value
Definition
If none of the bits are set (Type=0), the port will be configured for stream mode.
Any characters received on the port are immediately sent to the processor. The
processor must buffer and assemble a packet of information if this mode is
selected as required by the application. If the data can be handled by the
processor in this mode and it is appropriate for your application, this is the fastest
method of communication between the device and the processor.

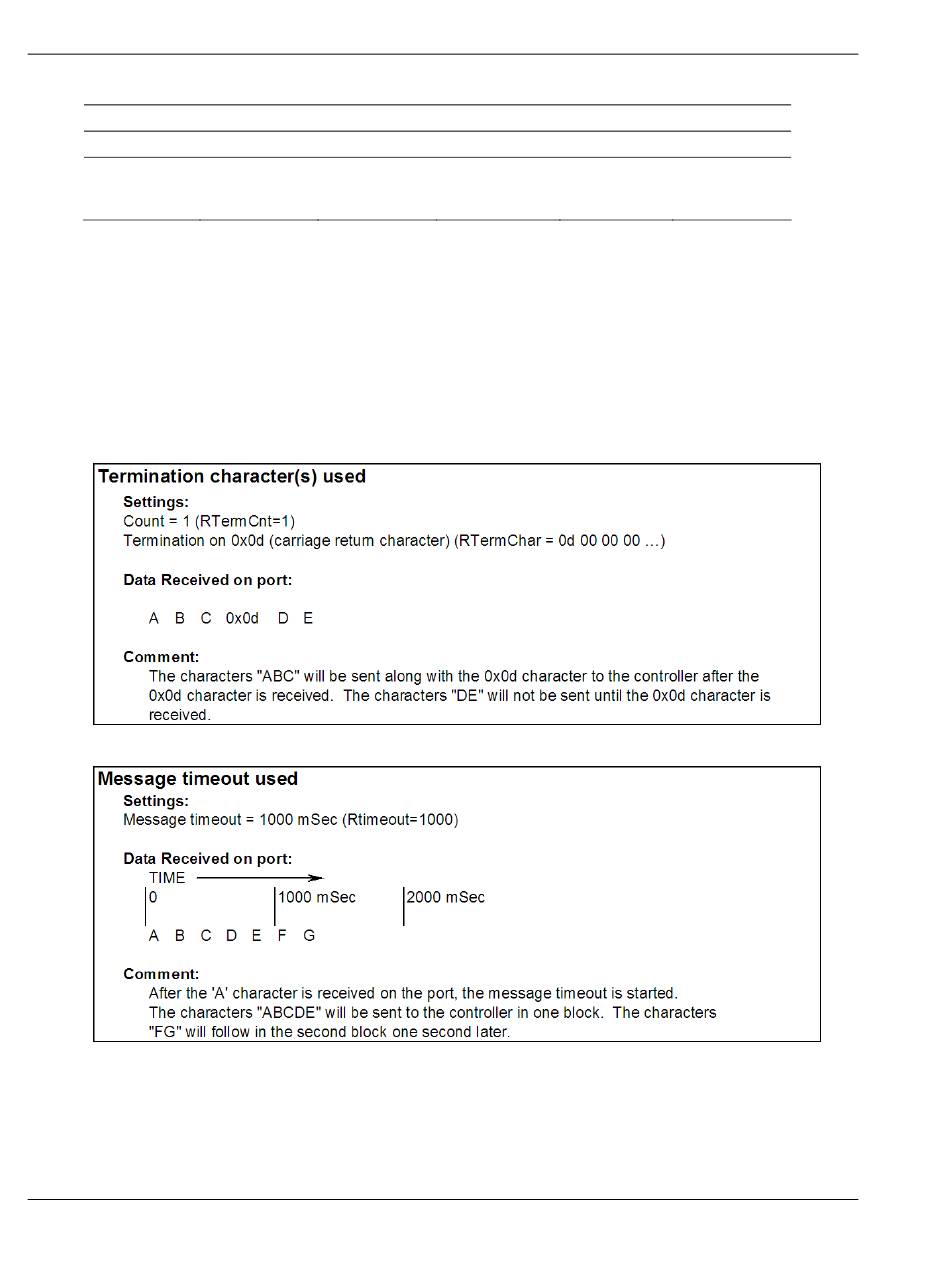

Any combination of bits is acceptable to the module and should be set to match
the device on the specific port. An example of each termination type is given
below.
Page 16 of 40
4 to 7 3
- 8
Reserved Packet size
limit used
2 1
4 2
Intercharacter Message
delay timeout timeout used
used
Modes of Operation
0
1
Termination
character(s)
used
ProSoft Technology, Inc.
July 7, 2008
