Quick Start Guide -

Getting to Know Your Sound System

Make note of the location of the speakers and ceiling sensor in your classroom. Ensure that you have unpacked and charged
your battery-powered microphones. Keep this guide handy for future reference.
Please note that some ampli er/receiver controls will di er. Refer to their markings, user manual, or our teachlogic.com for more
information on their function.
STEP 1. USING THE AMPLIFIER

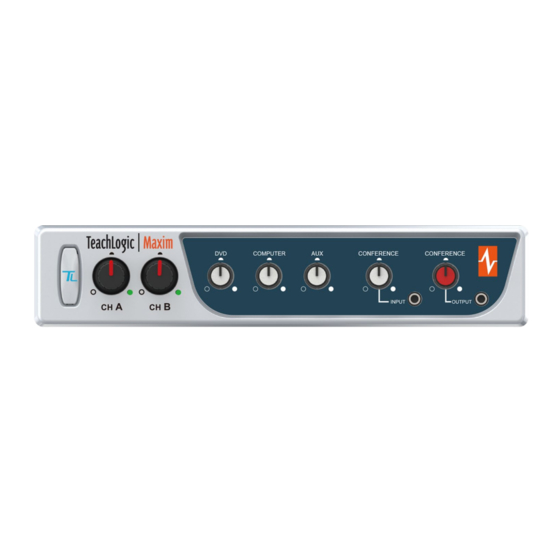

1. Power & Status Indicator
• Red: OFF
• Blue: ON and activated
• Amber: STANDBY
2. Mic Channels/Volume Controls
• Green light: Microphone on and connected to channel
• No light: Microphone is not on; and/or sensor is not
plugged in; and/or sensor is not receiving mic signal
3. Input Volume Controls
• Controls volume of connected external devices
STEP 2. USING THE SAPPHIRE™ PENDANT MICROPHONE
1. Power button and status indicator
• No Light: OFF
• Solid Blue: ON
• Solid Purple: 25-50% Battery Life
• Solid Red: 0-25% Battery Life
2. Power Button Function for Power & Muting
• To turn the mic ON press and hold button for 3 seconds. To turn OFF, repeat.
• Mute microphone: Tap power button once (blinking blue).
• Unmute microphone: Tap power button again (solid blue).
3. Aux Input: Connects devices (like music player) to microphone.
4. Priority Switch: Changes volume of devices plugged into amp inputs
• To increase/decrease volume level: Slide button up or down
• To immediately quiet volume level of external device: Push button once
• To resume volume level of external device: Push button again
5. Activate Security Alert Feature (when enabled)
• Hold Priority Switch down for 3 seconds. The power light on the amp
will ash green & red, then return to solid blue.
6. Gain Switch
• There are 3 levels to adjust your microphone volume: Normal | -3 dB | -6 dB
• You may increase/reduce the volume to accommodate changes in room noise.
7. Micro-USB Charge Port (found on the bottom of the mic)
• Take care to insert the charging cable right side up.
Maxim
(IMA-540)
TM
1
2
4. Input Jack and Volume Control
• Connects additional external devices to the system (ex. iPhone or mp3 player)
5. Output Jack and Volume Control
• Connects devices for recording lessons
• Use one input + one output to connect to computer for video conferencing
3
3
1
4,5
2
4
5
6
7
(1)
