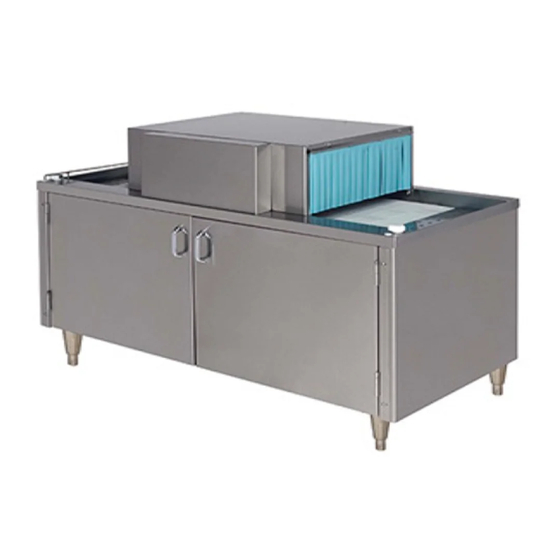

Champion
The Dishwashing Machine Specialists
June, 2001
P.O. Box 4149
Winston-Salem, North Carolina 27115-4149
Technical Manual
Pass-Through
Glasswasher
Machine Serial No.
Manual
Champion Industries, Inc.
www.championindustries.com
Model
CG4
CG6
111557
P/N
REV. E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CG4 and is the answer not in the manual?

Questions and answers

Related Manuals for Champion CG4

Summary of Contents for Champion CG4

  • Page 1 Champion The Dishwashing Machine Specialists June, 2001 P.O. Box 4149 Winston-Salem, North Carolina 27115-4149 Technical Manual Pass-Through Glasswasher Model Machine Serial No. 111557 Manual Champion Industries, Inc. www.championindustries.com REV. E...
