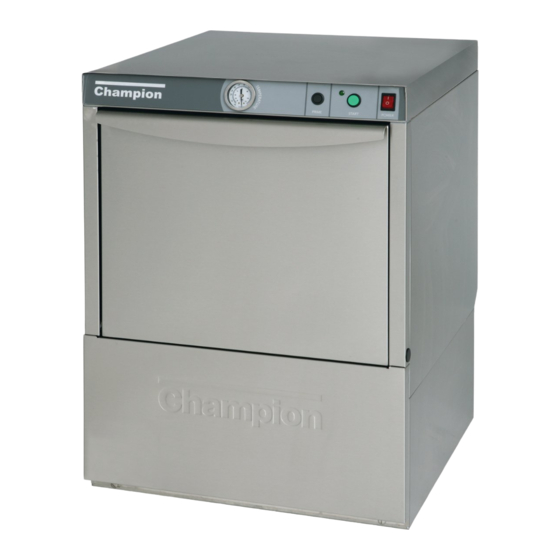

Champion UH-100B Specifications
Undercounter high temperature dishwashing machine with built-in booster heater
Hide thumbs
Also See for UH-100B:
- Technical manual (175 pages) ,
- Installation and operation manual (106 pages) ,
- Installation & operation manual (106 pages)
Advertisement
Quick Links
STANDARD FEATURES
NEW "Shear Energy" – a reduction in energy
•
requirements while maximizing performance!
NEW "Multi-Phase" – allows for in eld conversion
•
from single to three phase electrical with ease!
•
Rinse Sentry – extends the cycle time to ensure 180°F nal rinse.
•
Built-in electric booster for 180°F nal rinse water
(standard 40°F or optional 70°F rise)
•
Pumped drain
•
Door safety switch
•
Low-water tank heat protection
•
Detergent and rinse aid pumps
•
Quiet double-wall construction
•
15-3/4" door opening to accept larger wares,
including trays
•
Stainless steel top and side panels
•
141 second cycle
•
Wash pump, 1 Hp motor
•
Fill and dump
•
Prime switch on control panel
•
Automatic tank ll
•
One year parts and labor warranty
OPTIONS & ACCESSORIES
1-RDT Dish Table
Durable, heavy-gauge
stainless steel dish table with sink, stand-pipe
drain, removable scrap screen holder, drain-
board, backsplash and lower storage cabinet.
Sprayhose is optional. See 1-RDT catalog sheet.
Specify right hand or left hand sink.
Additional Dish Racks
17" Stand
Stainless Steel
6" Leg Stand
70°F Rise Booster
UH100 without Booster
(2M) 9/07 Printed in U.S.A.
Project
Item No.
Quantity
Peg
Flat
Undercounter High Temperature
UH-100 Model without Booster Heater
SPECIFIER STATEMENT
Speci ed unit will be Champion model UH-100B
undercounter high temperature dishwashing machine
with built-in booster heater.
Features 141 second total cycle, controls, Rinse Sentry,
detergent and rinse aid pump, stainless steel top and
side panels. Constructed of stainless steel.
1 year parts and labor warranty.
P. O. Box 4149, Winston-Salem, NC 27115
Tel: 336/661-1556 Fax: 336/661-1979
www.championindustries.com
Dishwashing Machine with
Built-in Booster Heater
Champion Industries, Inc.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Champion UH-100B
Summary of Contents for Champion UH-100B
- Page 1 Project Item No. Quantity SPECIFIER STATEMENT Speci ed unit will be Champion model UH-100B undercounter high temperature dishwashing machine with built-in booster heater. Features 141 second total cycle, controls, Rinse Sentry, detergent and rinse aid pump, stainless steel top and side panels.
-
Page 2: Front View
Field convertible to accept 3 phase power Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice. Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 336/661-1556 • Fax: 336/661-1979 • www.championindustries.com 40-1/2"...
Need help?
Do you have a question about the UH-100B and is the answer not in the manual?
Questions and answers
Model UH-100B, Many dishes coming out still dirty.
Dishes may come out dirty from the Champion UH-100B model due to the following reasons:
1. Detergent Issues:
- The detergent pick-up tube may be in the wrong container. Ensure it is in the correct detergent container.
- There may be no detergent in the container. Refill or replace it.
- The detergent setting may be too low. Have a chemical representative calibrate the setting.
2. Water Temperature:
- The wash water temperature may be too low. A service agent should adjust the wash thermostat.
3. Spray and Screen Blockages:
- Clogged spray arms or nozzles can reduce spray pressure. Clear any obstructions and flush with hot water.
- The scrap screen may be clogged. Clean or replace it.
4. Incorrect Loading:
- Wares may be incorrectly loaded in the rack. Use the correct racks and ensure dishes are loaded without nesting.
Checking these factors and addressing any issues should improve washing performance.
