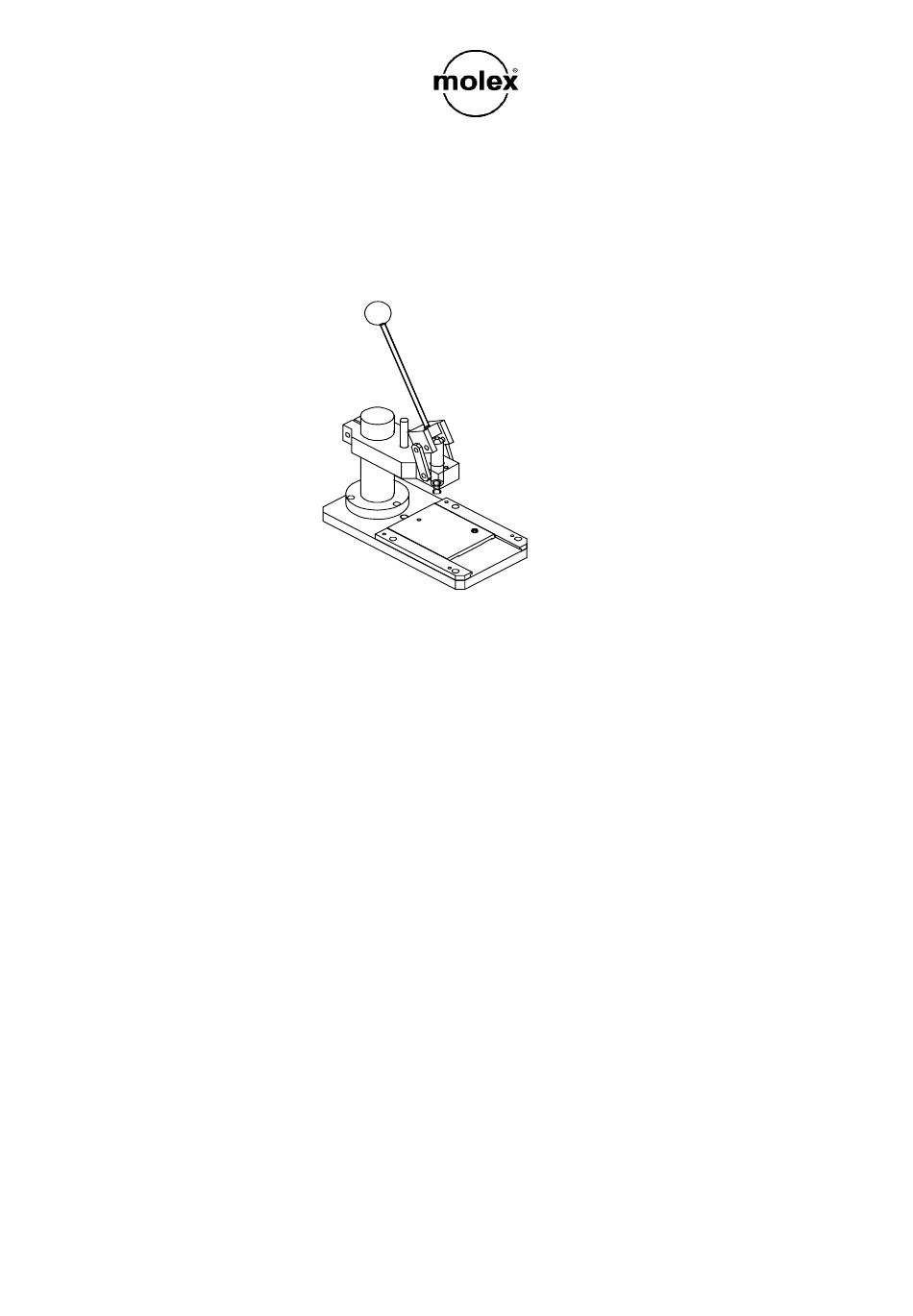

FOR MOLEX ARBOR PRESS FIXTURES
DESCRIPTION
This Arbor Press will accept Molex Arbor Press Fixtures 69020-
XXXX.
FEATURES
1.
Modular design with a selection of fixtures available for
Molex products.
2.
Small to medium production at low cost.
3.
Production rates of 100 to 400 assemblies per hour
(dependant on fixture type and operator).
4.
Manual operation only.
SPECIFICATION
SIZE:
152mm x 300mm x 230mm
WEIGHT: 5Kg
WORKING SERVICES:
ARBOR PRESS
PART No. 69020-0660
None
A.S. 04.03.15 /ISSUE D
FILENAME: SD-69020-0660
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for molex 69020-0660
Summary of Contents for molex 69020-0660
- Page 1 ARBOR PRESS PART No. 69020-0660 FOR MOLEX ARBOR PRESS FIXTURES DESCRIPTION This Arbor Press will accept Molex Arbor Press Fixtures 69020- XXXX. FEATURES Modular design with a selection of fixtures available for Molex products. Small to medium production at low cost.
- Page 2 Oil moving parts weekly, when in use. Store in a clean dry environment. QUALITY Check termination quality against the Molex wire termination specification for relevant product being terminated e.g.: 90650. A quality procedure should be in place to monitor output from this Arbor Press.
