DESCRIPTION
This fixture is used to terminate Molex connector 91317, 3 to
16 ckt. onto pre-cut ribbon cable.
FEATURES
1.
This fixture can only be used in a standard Arbor Press
part No. 69020-0660.
2.
Adjustable from 3 to 16 ckt.
3.
For loose piece terminals only.
4.
Hand loading of connector and cable.
SPECIFICATION
SIZE:
100mm x 100mm x 50mm
WEIGHT: 1.25 kg
WORKING SERVICES:

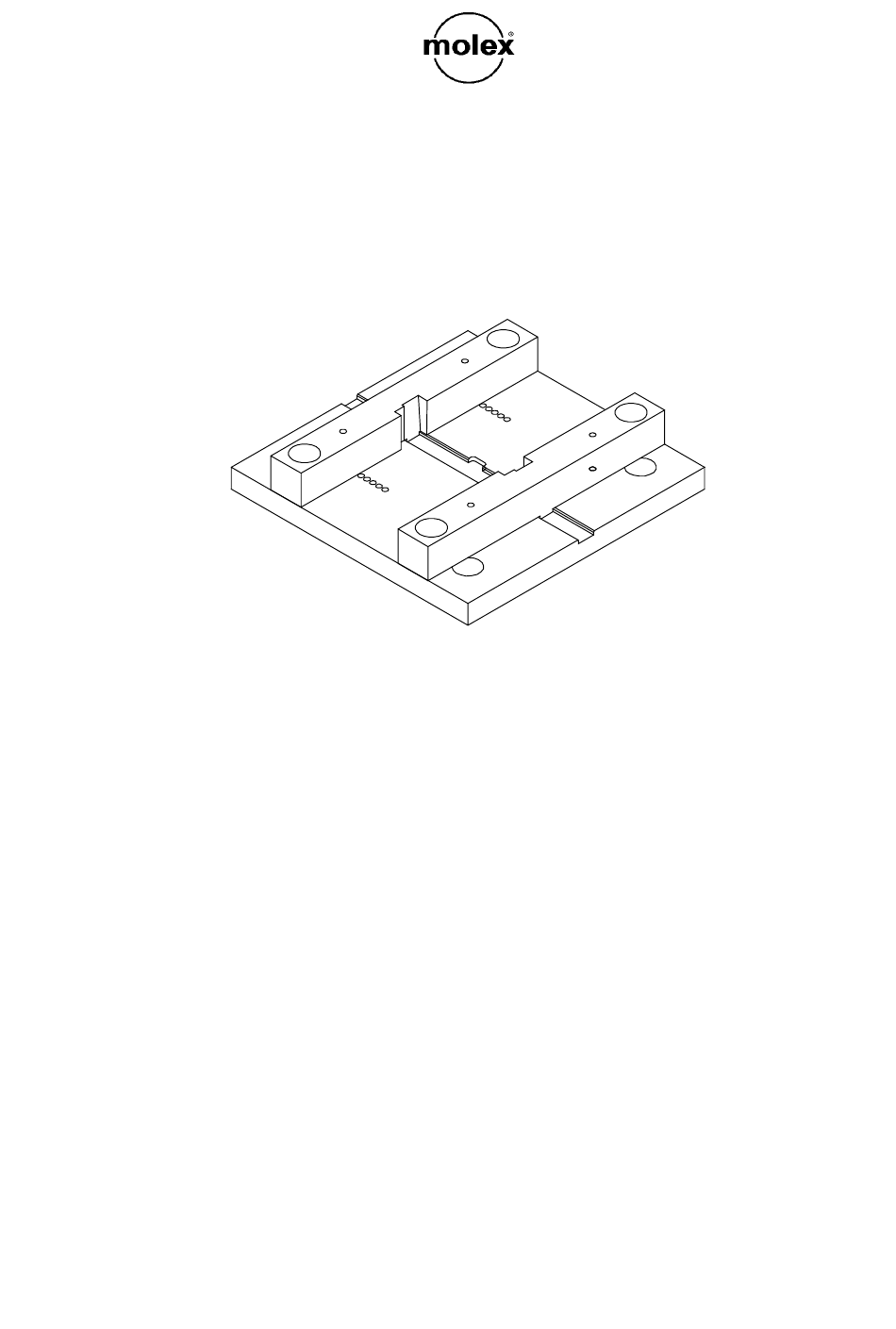

ARBOR PRESS FIXTURE
PART No. 69020-2025
FOR MOLEX PRODUCT ENG. No 91317
None.
A.S. 06.07.04
ISSUE C
FILENAME: ATS-69020-2025c
Advertisement
Table of Contents
Related Manuals for molex 69020-2025
Summary of Contents for molex 69020-2025
- Page 1 ARBOR PRESS FIXTURE PART No. 69020-2025 FOR MOLEX PRODUCT ENG. No 91317 DESCRIPTION This fixture is used to terminate Molex connector 91317, 3 to 16 ckt. onto pre-cut ribbon cable. FEATURES This fixture can only be used in a standard Arbor Press part No.
- Page 2 SET-UP Place lower termination fixture onto mounting platform of Arbor Press, locating it onto the two mounting pins. Adjust positioning bars to keep connector central on the base plate. Make a few samples following the next section (operation) and then check termination heights. If adjustment is required see adjustments section.
- Page 3 Oil moving parts weekly, when in use. Store in a clean dry environment. QUALITY Check termination quality against the Molex wire termination specification for relevant product being terminated eg: 90650. A quality procedure should be in place to monitor output from this fixture.
