4.4 Pinch Protection Module ACS-CB-PINCH

The ACS-CB-PINCH module is required to be able to connect a squeeze line to
LOGICDATA control boxes that are not equipped with the corresponding interface
(CBX, CBS, CBB).
Note: The ACS-CB-PINCH module is not part of the standard scope of
supply of the CBX, CBS and CBB control boxes! If you decide to use a
squeeze line with these control boxes, you have to order the pinch
protection module separately.

4.4.1. ACS-CB-PINCH Interfaces

The ACS-CB-PINCH module is equipped with following interfaces:

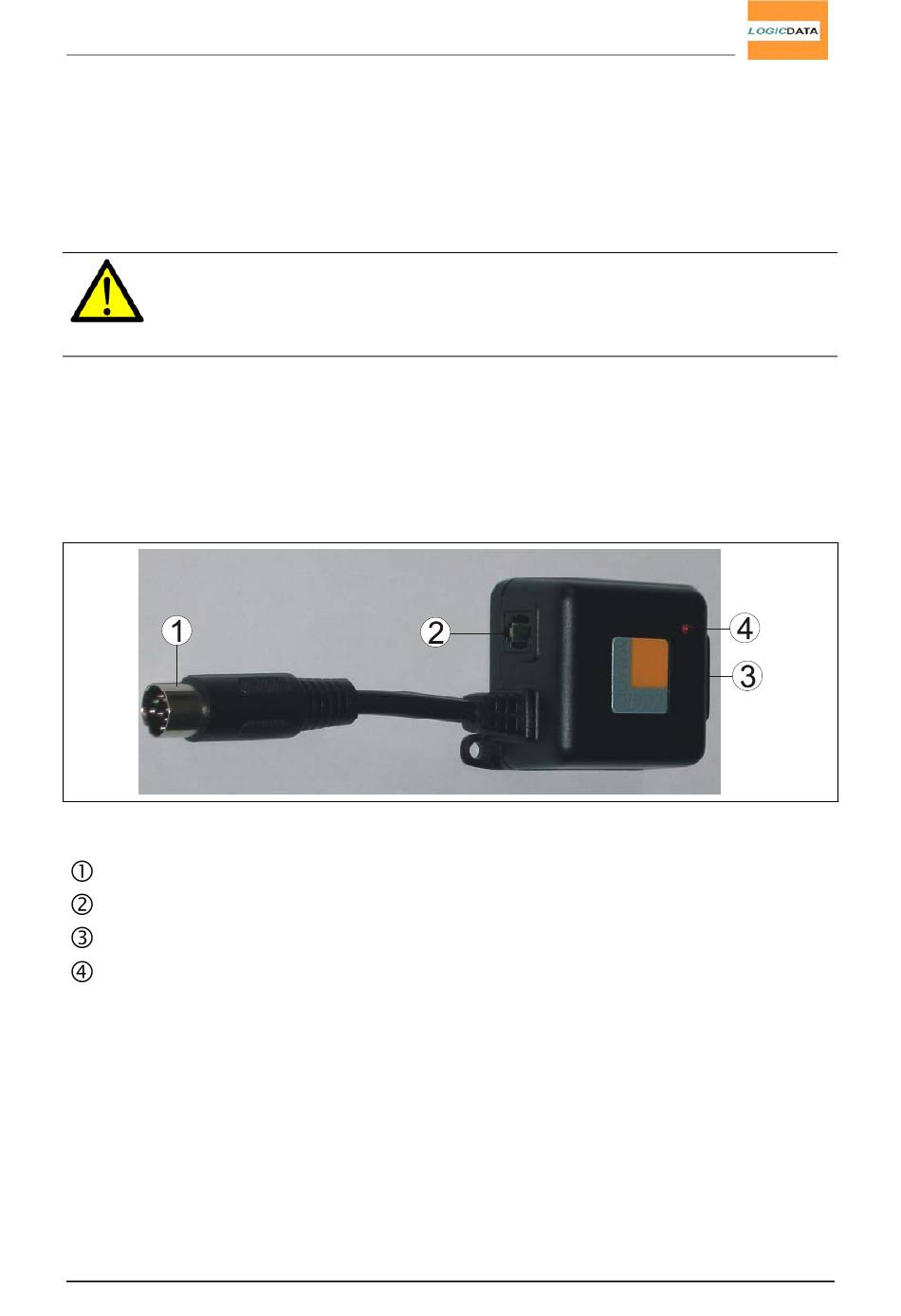

Fig. 5 - Package Contents
Interface to control box (M1 oder M2)
Interface to squeeze line
Interface to drive 1 or 2 (M1 oder M2)
Status-LED
The status-LED lights up when the squeeze line is conducting (when the person
sitting at the desk touches the squeeze line).
