4.2.5. Activation of the End Position Alignment Procedure

Activating the end position alignment procedure lies within the scope of initial
operation carried out by a service technician.
1.
o.
2.
3.
4.

4.2.6. End Position Alignment

The end position alignment procedure has to be carried out on initial operation after
the control box has been installed correctly.
Note: Selectively, all configurations needed for initial operation can be
factory-made.
To align the end positions, proceed as follows:
1.
2.
3.
4.

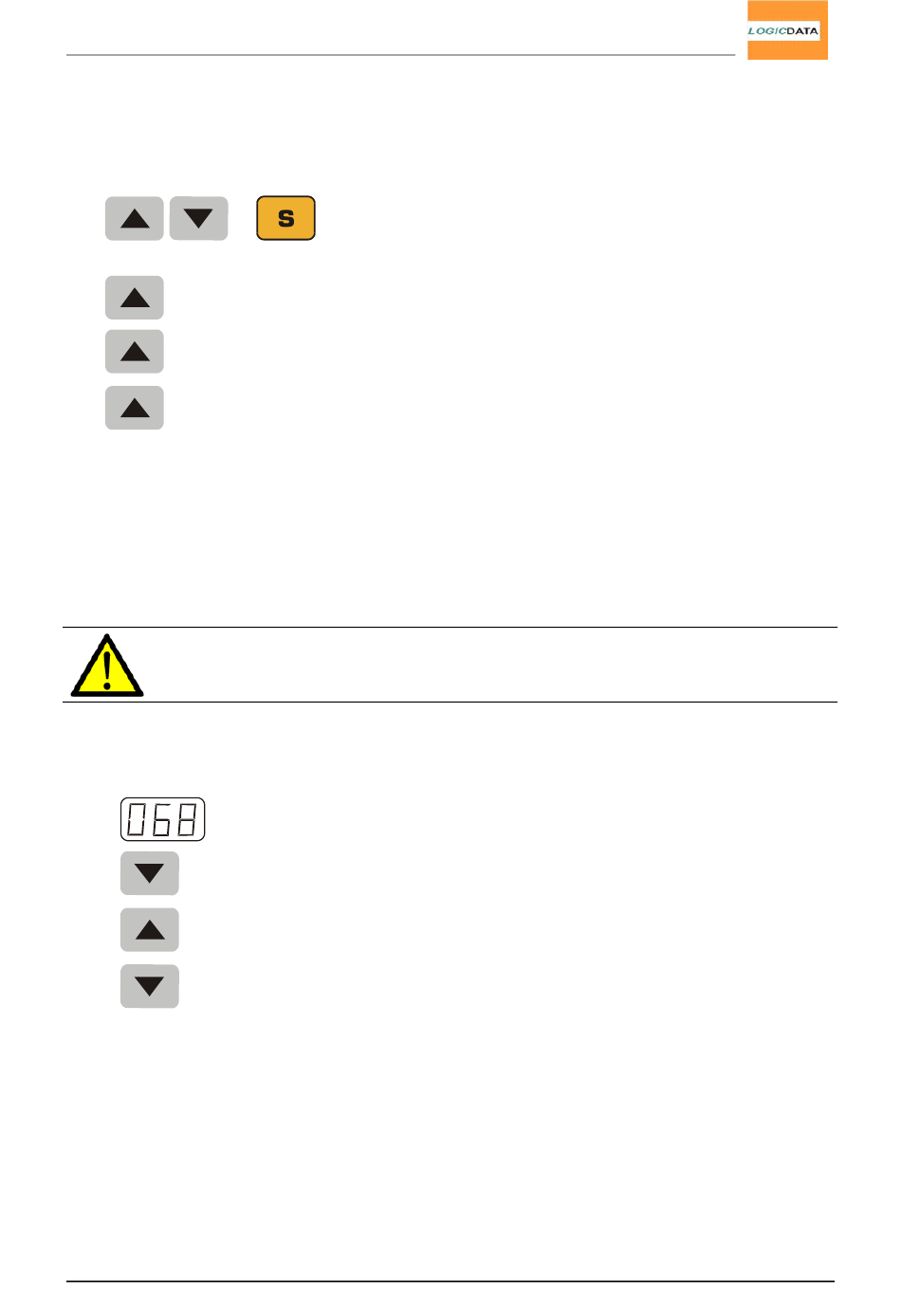

Press and hold keys desk up and desk down (or
alternatively the S key) simultaneously for about 5
seconds until the control box clicks once.
Press key desk up until the control box clicks once.
Press key desk up again until the control box clicks
once.
Press key desk up again until the control box double-
clicks.
The display reads 068.
Press and hold key desk down until the desk has
reached the lower end position.
Press and hold key desk up until the desk has reached
the upper end position.
Confirm the setting by pressing key desk down.
