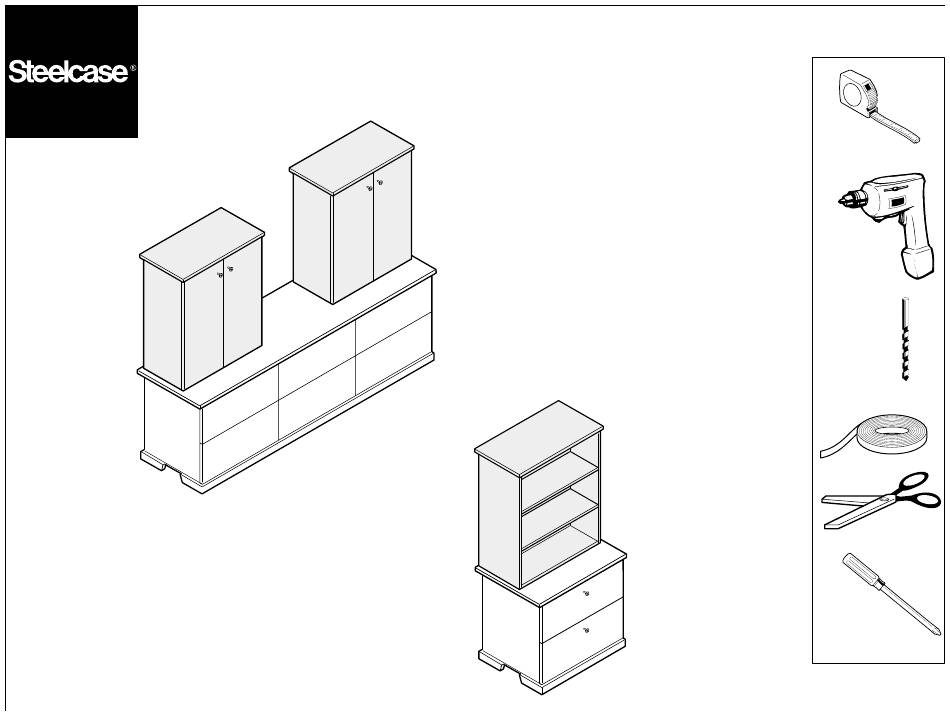

Arbor - Installation of Stacking Bookcases onto a Credenza

Stacking Bookcase with Doors

Open Bookcase

(shown in this direction)

Power Driver

with Phillips tip

#30 Drill Bit

#2 Posi Driver

Steelcase customer

service part number

YFS3534C

Page 1 of 4

Y9501721 Rev. D

Need help?

Do you have a question about the Arbor and is the answer not in the manual?

Page 1 Arbor - Installation of Stacking Bookcases onto a Credenza Stacking Bookcase with Doors Power Driver with Phillips tip #30 Drill Bit Open Bookcase (shown in this direction) If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE...
Page 2 31-1/8” (791 mm) 1-1/8” (28.6 mm) 4-1/4” Locate and drill (4) holes (108 mm) 5/8” (16 mm) deep using a 5mm drill bit. 8-13/16” (224 mm) Install (4) steel dowels into holes. Page 2 of 4 Y9501721 Rev. D...
Page 3 Be sure to leave access for holes, both sides Gently lay bookcase onto it’s side. Cut felt strips to length and apply to bottom of bookcase as shown. Carefully position bookcase over credenza so that holes in end panels are aligned with steel dowels.
Page 4 DOOR ADJUSTMENT REAR SCREW - IN/OUT MIDDLE SCREW - UP/DOWN DOOR HINGE FRONT SCREW - SIDE TO SIDE #2 Posi Driver recommended Page 4 of 4 Y9501721 Rev. D...
