Powerplus POWE30040 Manual

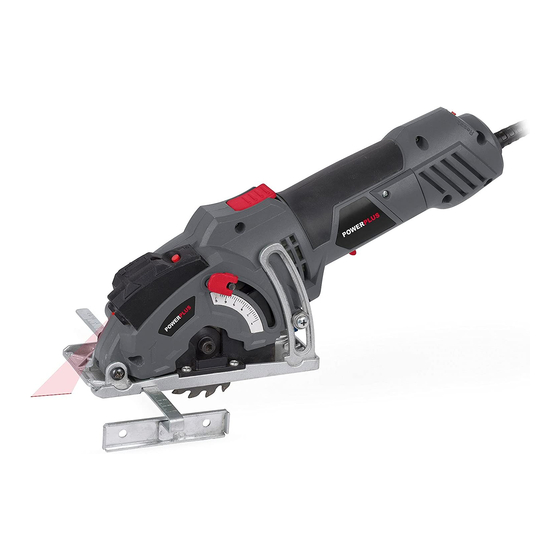

Mini plunge saw 500w-85mm
Hide thumbs Also See for POWE30040:
Table of Contents

Advertisement

Quick Links

Download this manual
1
APPLICATION ................................................................................... 3
2
OVERVIEW COMPONENTS (FIG. A) ............................................... 3
3
PACKAGE CONTENT LIST .............................................................. 3
4
SYMBOLS .......................................................................................... 4
5
GENERAL POWER TOOL SAFETY WARNINGS ............................ 4
5.1
Work area .................................................................................................................. 4
5.2
Electrical safety ......................................................................................................... 4
5.3
Personal safety ......................................................................................................... 5
5.4
Power tool use and care ........................................................................................... 5
5.5
Service ....................................................................................................................... 5
6
7
CAUSES AND PREVENTION OF KICKBACK ................................. 6
8
9
ASSEMBLY ........................................................................................ 7
9.1
Setting the cutting depth (Fig. 1) .............................................................................. 7
9.2
Changing a saw blade ............................................................................................... 8
10
OPERATION ...................................................................................... 8
10.1
Holding and switching ON/OFF ................................................................................ 8
10.1.1 Switching on the tool: .................................................................................................. 8
10.1.2 Releasing the plunge stop ........................................................................................... 8
10.2
Setting the guide fence ............................................................................................. 8
10.3
Laser line generator .................................................................................................. 9
10.4
Line following ............................................................................................................ 9
10.5
Dust extraction .......................................................................................................... 9
11
CUTTING ............................................................................................ 9
12
CUT-OUTS ....................................................................................... 10
13
.......................................................................................................... 11
13.1
Sheet metal: ............................................................................................................. 11
13.2
Ceramic tiles, slates etc.: ....................................................................................... 11
13.3
Plasterboard: ........................................................................................................... 11
Copyright © 2017 VARO
POWE30040
P a g e
| 1
EN
www.varo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POWE30040 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Powerplus POWE30040

Summary of Contents for Powerplus POWE30040

  • Page 1: Table Of Contents

    POWE30040 APPLICATION ................... 3 OVERVIEW COMPONENTS (FIG. A) ..........3 PACKAGE CONTENT LIST .............. 3 SYMBOLS ..................4 GENERAL POWER TOOL SAFETY WARNINGS ......4 Work area ........................4 Electrical safety ......................4 Personal safety ......................5 Power tool use and care ................... 5 Service ........................
  • Page 2 POWE30040 CLEANING AND MAINTENANCE ..........11 14.1 Blades ........................11 TECHNICAL DATA ................12 NOISE ....................12 WARRANTY ..................12 ENVIRONMENT ................13 DECLARATION OF CONFORMITY ..........14 Copyright © 2017 VARO P a g e www.varo.com...

  • Page 3: Application

    POWE30040 MINI PLUNGE SAW 500W – 85MM POWE30040 APPLICATION This machine is primarily intended for the sawing, longitudinally and transversely, of solid wood, chipboard, plywood, aluminium, tiles and stone held in a fixed position. Please note that the blade pre-installed in the saw as supplied is intended for use with wood only. Any other use or modification to the device shall be considered as improper use and could give rise to considerable dangers.

  • Page 4: Symbols

    POWE30040 SYMBOLS In this manual and/or on the machine the following symbols are used: Denotes risk of personal Class II - The machine is double injury or damage to the insulated; Earthing wire is tool. therefore not necessary. Read the manual carefully Always wear safety goggles.

  • Page 5: Personal Safety

    POWE30040  When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.  If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.

  • Page 6: Additional Safety Instructions For Plunge Saws

    POWE30040 6 ADDITIONAL SAFETY INSTRUCTIONS FOR PLUNGE SAWS  Make sure that the mains voltage matches the specifications on the type plate.  Persons with restricted physical, sensory or mental capabilities are not allowed to use the plunge saw unless they are supervised and instructed by a guardian.

  • Page 7: Additional Safety Instructions For Lasers

    POWE30040  If the saw blade jams or sawing is interrupted for any reason, release the ON / OFF switch and calmly hold the saw in the material until the saw blade stands completely still. Never attempt to remove the saw from the workpiece or pull it backwards as long as the saw blade is moving or a kickback might occur.

  • Page 8: Changing A Saw Blade

    POWE30040 Changing a saw blade WARNING: Incorrect positioning of the blade can permanently damage the tool.  Ensure the tool is unplugged from the mains supply.  Press and hold the spindle lock button (14) on, release the clamping screw with plain washer (7) by using the inner hexagon wrench (turn clockwise to open).

  • Page 9: Laser Line Generator

    POWE30040 10.3 Laser line generator Warnings: Do not stare directly at the laser beam, do not deliberately aim the beam at personnel and ensure that it is not directed towards the eye of a person for longer than 0.25 s.

  • Page 10: Cut-Outs

    POWE30040  Place the material to be cut onto a flat surface such as a workbench, table or floor. Use a piece of scrap material underneath if:  You do not wish to damage the work surface.  The work surface is likely to damage the blade. E.g. a concrete floor.

  • Page 11: Cutting Particularly Tough Or Abrasive Materials

    POWE30040 CUTTING PARTICULARLY TOUGH OR ABRASIVE MATERIALS Learn to use the tool by cutting wood before attempting to cut anything tougher. When cutting tougher material, such as metals, more force is required to hold the work piece and clamping may be required.

  • Page 12: Technical Data

    We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool.  Repairs may only be carried out by an authorised customer service centre for Powerplus tools.  You can always obtain more information at the number 00 32 3 292 92 90.

  • Page 13: Environment

    POWE30040  At the same time, no claim can be made on the warranty if the damage of the device is the result of negligent maintenance or overload.  Definitely excluded from the warranty is damage resulting from fluid permeation, excessive dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g.

  • Page 14: Declaration Of Conformity

    POWE30040 19 DECLARATION OF CONFORMITY VARO N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that, mini plunge saw 500W – 85mm product trade mark PowerPlus model POWE30040 is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards.
