Summary of Contents for Mobeye ThermoGuard CM2200

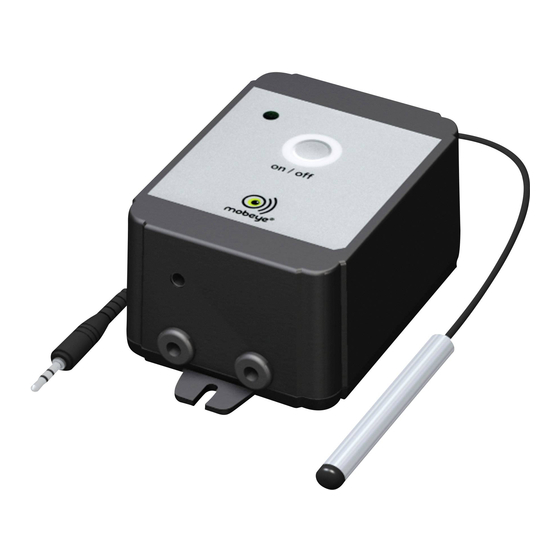

- Page 1 USER MANUAL ® Mobeye ThermoGuard CM2200 SW version 5.n...
- Page 2 • Do not let it fall from height. • Do not use in an environment where any inflammable gases, vapors or dust are present or could be present. • Repair of the device may only be carried out by people, trained for Mobeye ® repair.
-
Page 3: Table Of Contents
Connect the temperature sensor Connect an external power supply (optionally) Connect a sensor to the inputs (optionally) 4. Programming when using the Mobeye SIM and portal Sign up in the Mobeye Internet Portal Register the Mobeye SIM card Enter the program mode... - Page 4 6. Programming when using own SIM card Program mode Programming the settings by SMS Program at least one telephone number Program threshold values for the temperature 7. List of SMS commands for programming with own SIM List of SMS commands Switching on/off Confirmation of the alarm message System reset...
-
Page 5: General Description
First of all you’ll have to choose a SIM card to place in the device. You can use the Mobeye SIM card or your own SIM card. The Mobeye SIM card provides access to the Mobeye Internet Portal. In this management environment the device is given additional functions such as online programming, status and history display, more options for forwarding messages and it will monitor test messages (keep alive). -
Page 6: Standard Behaviour
- When one of the inputs remain in the alarm status, the ThermoGuard repeats sending the alarm message via the Mobeye Internet Portal every four hours. - When an external power supply is used and a power failure occurs, the Mobeye ThermoGuard sends a ‘power failure’ message to Mobeye Internet Portal, to be forwarded to the ‘alarm contacts’... -
Page 7: Mobeye Thermoguard With Own Sim Card
As described, the Mobeye ThermoGuard will, in addition to calling in the event of an alarm, send various messages to the Mobeye Internet Portal. This is done via data traffic where possible. As a fallback, the alarm messages are sent to the portal via SMS. -
Page 8: Getting Started
3. GETTING STARTED To get started with the Mobeye ThermoGuard, at least the following steps need to be taken in the following order: 1. Insert the SIM card 2. Connect the temperature sensor 3. Insert the batteries 4. Connect an external power supply (optionally) 5. -
Page 9: Insert The Batteries
3.4 CONNECT AN EXTERNAL POWER SUPPLY (OPTIONALLY) Although the Mobeye ThermoGuard is designed to run on batteries, it is possible to use an external power supply. In this mode the module is always connected with the GSM network and therefore always in program mode. When the power fails, the batteries take over and a power failure alarm message is sent. -
Page 10: Connect A Sensor To The Inputs (Optionally)
Connect the external power adapter (or any other regulated 12VDC power supply) to the power input of the connector (press on the green pins to connect the wires): - V+ (black lead with white stripe) to “+” - Ground (black lead) to “-“ 3.5 CONNECT A SENSOR TO THE INPUTS (OPTIONALLY) It is possible to connect external (NO/NC) sensors to the inputs. -
Page 11: Programming When Using The Mobeye Sim And Portal
You will receive an e-mail to confirm the new account. After confirmation login on the portal. If you do not receive this e-mail, please check your spam box or ask Mobeye (info@mobeye.com). 4.2 REGISTER THE MOBEYE SIM CARD... -
Page 12: Enter The Program Mode
3 seconds. 4.4 ACTIVATE THE DEVICE IN THE PORTAL If the LED on the outside flashes once per second, you activate the device in the Mobeye Internet Portal by clicking ‘Activate device’, which is written behind the registered SIM card. Contract SIM card + portal “Monitoring”... -
Page 13: Configuration And Synchronisation
The device settings can be programmed in the Mobeye Internet Portal. In this way you prepare the settings, to be picked up by the device. Since the Mobeye device is leading in the communication between the portal and the device, the data synchronisation is done after: 1) any message to the portal (e.g. - Page 14 Device Settings The device settings can be changed via the Mobeye Internet Portal. To do this, click on the "edit" icon and type in the security code (factory setting is "1111"). See chapter 5 for the description per setting. After saving the new settings, they must be retrieved by the device (synchronized).
-
Page 15: Switching On/Off
4.7 SWITCHING ON/OFF After the previous steps the Mobeye ThermoGuard is ready for use. It is armed (switched on) automatically. In order to switch off (disarm) the Mobeye ThermoGuard: - Press the on/ off button at the upper side for 1 second. The green LED switches off to indicate the disarmed status. -
Page 16: System Reset
The security code is back to factory settings as well. The SIM card is now disconnected and is visible on the "Add device" screen. The SIM card can be used again in another (or the same) Mobeye device in combination with the portal. -
Page 17: Possible Settings
The Mobeye ThermoGuard has many setting options that influence the behaviour of the module. If connected on the Mobeye Internet Portal, the settings are prepared in the portal (see chapter 4). If your own SIM card is used, programming is done via SMS commands (see chapter 7). -
Page 18: Set A Minimum And/Or Maximum Temperature Limit
The adjusted temperature will be used in the measurement and reports. Example: the Mobeye ThermoGuard measures 13 °C. Actual ambient temperature is measured as 13,5 °C. To adjust this difference, +0,5 degrees shall be programmed. -
Page 19: Alarm Delay Time
0 and 60 minutes. As default, the inactive time is set to “0”. 5.12 POWER FAILURE MESSAGE If the Mobeye ThermoGuard is powered externally and the power fails, it is able to make phone calls and/or send textual messages. There are three configuration options: Alert, Alarm, Off. -
Page 20: Power Failure Delay Time
"0". 5.14 AUTOMATIC ARMING / DISARMING The Mobeye ThermoGuard only works if the unit is armed, which is done via the on/off button. It is possible to automatically arm and disarm the unit, based on an arming and/or disarming time scheme. -
Page 21: Low Power Mode
The message will update the temperature in the status block. The test message will also be sent if the unit is disarmed. The Mobeye Internet Portal expects the test message and checks the timely receipt. The monitoring of the test messages follows the ‘management by exception’... -
Page 22: Programming When Using Own Sim Card
In the situation that the ThermoGuard is connected to an external power supply, it has continuous network connection and the unit is permanently in program mode A battery-operated Mobeye ThermoGuard switches to the program mode after pressing the on/off button for 5 seconds until the LED starts flashing. Alternatively the batteries are re-inserted. -
Page 23: Programming The Settings By Sms
In chapter 7.1 all possible SMS commands are listed. 6.3 PROGRAM AT LEAST ONE TELEPHONE NUMBER The Mobeye ThermoGuard is able to send messages up to 5 telephone numbers. The first telephone number (TEL1) belongs to the administrator. Technical messages (such as battery low) are sent to the administrator only. Without the administrator’s phone number, the Mobeye ThermoGuard cannot function. -
Page 24: Program Threshold Values For The Temperature
Both limits can be set between -35 ºC and +70 ºC with one decimal. Negative values are entered by placing a “-” in front of the value. To enter a temperature limit, be sure the Mobeye ThermoGuard is in program mode. Send an SMS text message to the unit with following content:... -
Page 25: List Of Sms Commands For Programming With Own Sim
Set telephone number for TEL1: Empty alarm messages TEL5: Delete telephone number DEL1 DEL5 Identification text NAME: 20 characters Mobeye Call on/off CALL: ON, OFF SMS on/off SMS: ON, OFF Lower limit temperature LTL: -35··· 70 (ºC) Upper limit temperature HTL: -35···... - Page 26 Setting SMS Command Options Default value temperature sensor too high: Text temperature TEXT3: 20 characters Temperature restoration Alarm text input 1 TEXT4: 20 characters Alarm 1 Alarm text input 2 TEXT5: 20 characters Alarm 2 Alarm text power failure TEXT6: 20 characters Power failure Alarm text power restore...
-
Page 27: Switching On/Off
7.2 SWITCHING ON/OFF After the previous steps the Mobeye ThermoGuard is ready for use. It is armed (switched on) automatically. In order to switch off (disarm) the Mobeye ThermoGuard: - Press the on/ off button at the upper side for 1 second. The green LED switches off to indicate the disarmed status. -
Page 28: System Reset
7.4 SYSTEM RESET To reset the Mobeye ThermoGuard to its factory settings: 1. Remove the batteries (and external power supply). 2. Press the outside button while reinserting the batteries. Keep it pressed for (about) another 5 seconds. 3. Release the button immediately after the LED starts to flash. -
Page 29: Sms Reports When Using Own Sim Card
The commands are case insensitive. ACTUAL TEMPERATURE The actual temperature values as measured by the Mobeye ThermoGuard can be requested by sending an SMS text message with the content (without code): STATUS REQUEST The status can be requested by sending following SMS text message. - Page 30 The signal strength of the used mobile network can be requested. If the network is weak, it is advised to use a SIM card of another network provider or an external GSM antenna (a Mobeye accessory). The GSM signal strength can be requested by sending following SMS text message:...
-
Page 31: Technical Messages
7.6 TECHNICAL MESSAGES In the event of technical issues the administrator receives an SMS message. Possible technical messages are: Message Reason Low batteries, external power Power is available, batteries need to be supply OK replaced. No external power supply, No external power supply, batteries are able to batteries OK take over operation in low power mode. -
Page 32: Status Feedback
8. STATUS FEEDBACK LED pattern Status Required action Blinking green, 1 second Module not configured Configure at least one on / 1 second off telephone number. 1 green flash every 3 Module is switched on, No action required. seconds powered by batteries Green LED stays on Module is switched on, No action required. - Page 33 Publisher. Reprinting, even in summary, is prohibited. This user manual meets the technical requirements at the moment of printing. Changes in technology and equipment are reserved. © Copyright 2019 by Mobeye, version CM2200C-EN191111...
