USER MANUAL
Mobeye

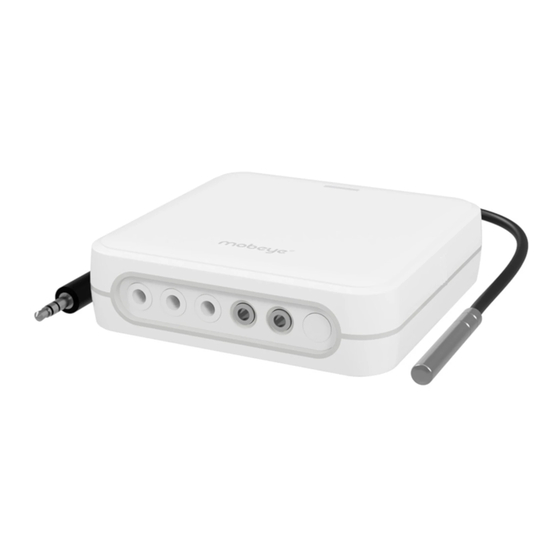

ThermoGuard TwinLog
®
CML4255
SW version 1.n

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ThermoGuard TwinLog CML4255 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mobeye ThermoGuard TwinLog CML4255

Summary of Contents for Mobeye ThermoGuard TwinLog CML4255

  • Page 1 USER MANUAL Mobeye ThermoGuard TwinLog ® CML4255 SW version 1.n...
  • Page 2 • Do not let it fall from height. • Do not use in an environment where any inflammable gases, vapors or dust are present or could be present. • Repair of the device may only be carried out by people, trained for Mobeye ® repair.

  • Page 3: Table Of Contents

    Connect a sensor to the input (optionally) Connect a device to the output (optionally) Network connection and program mode 4. Programming when using the Mobeye SIM and portal Sign up in the Mobeye Internet Portal Register the Mobeye SIM card...
  • Page 4 How to activate the CML4255 System reset SMS reports when using own SIM card Technical messages 8. Status feedback...

  • Page 5: General Description

    In order to activate the device, a few steps are to be followed. First of all, you need to insert a SIM card. With the Mobeye SIM card, the CML4255 uses the 4G LTE-M network. This network has a strong network coverage, deep penetrability in buildings and also works in remote areas.

  • Page 6: Standard Behaviour

    Mobeye Internet Portal. The Portal forwards the alarm to the ‘alarm contacts’. - In case one of the additional inputs is activated by a sensor, the Mobeye CML4255 sends an alarm message to the Mobeye Internet Portal. The Portal forwards the alarm to the ‘alarm contacts’.

  • Page 7: Mobeye Cml4255 With Own Sim Card

    SMS text message to first telephone number (TEL1) containing the text ‘Temperature sensor not connected’. - When one of the additional inputs is activated by a sensor, the Mobeye CML4255 sends an alarm SMS text message and calls the phone numbers programmed in by the user.

  • Page 8: Getting Started

    3. GETTING STARTED To get started with the Mobeye CML4255, at least the following steps need to be taken in the following order: 1. Open the casing and insert the SIM card 2. Connect the temperature sensor 3. Insert the batteries 4.

  • Page 9: Connect The Temperature Sensor

    When using the Mobeye SIM card: The Mobeye SIM card is PIN code secured and will only work in a Mobeye device. Please do not place it in another device. When using your own SIM card: An own SIM card has a “micro” format, is suitable for the 2G network and can make calls and send text messages.

  • Page 10: Connect A Sensor To The Input (Optionally)

    5.10. 3.6 CONNECT A DEVICE TO THE OUTPUT (OPTIONALLY) The Mobeye CML4255 has an open collector output, which switches after receiving a specific SMS or after an alarm. The output can switch permanently, or just switch for a pulse time after which the output automatically switches back (see 5.18).
  • Page 11 and next stay green (or flashes 1 sec. on/1 sec. off in case the unit has not been configured yet). In a battery-operated unit a time-out occurs after 3 minutes, after which the communication module switches off in order to save the batteries. In this low power mode the LED flashes once per 3 seconds.

  • Page 12: Programming When Using The Mobeye Sim And Portal

    Follow the instructions on the screen. You will receive an e-mail to confirm the new account. After confirmation login on the portal. If you do not receive this e-mail, please check your spam box or ask Mobeye (info@mobeye.com). 4.2 REGISTER THE MOBEYE SIM CARD...

  • Page 13: Configuration And Synchronisation

    4.3 CONFIGURATION AND SYNCHRONISATION The device settings can be programmed in the Mobeye Internet Portal. In this way you prepare the settings, to be picked up by the device. Since the Mobeye device is leading in the communication between the portal and the device, the data synchronisation is done after: 1) any message to the portal (e.g.
  • Page 14 Device Settings The device settings can be changed via the Mobeye Internet Portal. To do this, click on the "edit" icon and type in the security code (factory setting is "1111"). See chapter 5 for the description per setting. After saving the new settings, they must be retrieved by the device (synchronized).

  • Page 15: How To Activate The Cml4255

    4.5 HOW TO ACTIVATE THE CML4255 After the previous steps the Mobeye CML4255 is ready for use. It is armed automatically. In order to switch off (disarm) the Mobeye CML4255: - Press the button at the backside for 1 second.

  • Page 16: System Reset

    The security code is back to factory settings as well. The SIM card is now disconnected and is visible on the "Add device" screen. The SIM card can be used again in another (or the same) Mobeye device in combination with the portal.

  • Page 17: Possible Settings

    5. POSSIBLE SETTINGS The Mobeye CML4255 has many setting options that influence the behaviour of the module. If connected on the Mobeye Internet Portal, the settings are prepared in the portal (see chapter 4). If your own SIM card is used, programming is done via SMS commands (see chapter 8).

  • Page 18: Minimum And/Or Maximum Temperature Limit

    “-” before the value. 5.4 LOG INTERVAL When using the Mobeye Internet Portal the Mobeye CML4255 will log values and send these to the portal. The logging interval is the interval in which the measured values are logged (with a timestamp). The data are stored in the system until the next data transfer.

  • Page 19: Temperature Unit

    5.8 TEMPERATURE UNIT The temperature can be programmed and displayed in degrees Celsius (C) or Fahrenheit (F). As default this unit is set to C. 5.9 INPUT TYPE The input type defines the character of the additional inputs IN1 and IN2. This can be Normally Open (NO) or Normally Closed (NC).

  • Page 20: Power Failure Message

    "0". 5.15 AUTOMATIC ARMING / DISARMING The Mobeye CML4255 only works if the unit is armed, which is done via the on/off button. It is possible to automatically arm and disarm the unit, based on an arming and/or disarming time scheme. Two schemes can be entered, which can be assigned to the days in the week (e.g.

  • Page 21: Alarm Indication

    "ALARM" and the pulse time to "5" seconds. 5.19 LOW POWER MODE The low power mode is only important with an externally powered Mobeye CML4255. If the (factory) mode is set to “OFF”, the communication module will always have a network connection.

  • Page 22: Programming When Using Own Sim Card

    If the CML4255 is connected to an external power supply, it has continuous network connection and is permanently in program mode. A battery-operated Mobeye CML4255 switches to the program mode after re-inserting the batteries or pressing the button at the back for 5 seconds.

  • Page 23: Program At Least One Telephone Number

    In chapter 7.1 all possible SMS commands are listed. 6.3 PROGRAM AT LEAST ONE TELEPHONE NUMBER The Mobeye CML4255 is able to send messages up to 5 telephone numbers. The first telephone number (TEL1) is mandatory. This number will receive, next to alarm message, also system messages such as battery low and keep- alive message.

  • Page 24: List Of Sms Commands For Programming With Own Sim

    TEST: 0 ··· 30 (days) Time test message TESTTIME: hhmm Identification text NAME: 20 characters Mobeye Lower limit temperature LTL: -35,0 ··· 70,0 (ºC) Higher limit temperature HTL: -35,0 ··· 70,0 (ºC) Temperature delay DELAYTEMP: 000 ··· 999 (min) Temperature calibration TOFFSET: -5,0 ···...
  • Page 25 Setting SMS command Options Default value Assigning times 2 DAYS2: 1234567 Empty Use of on/off button BUTTONLOCK: ON (button locked) OFF (unlocked) Alarm indication ALARMSOUND: ON, OFF Pulse time output TO1: 0 … 999 (sec) Output behaviour OUTPUT: ALARM, RC ALARM Low power status LOWPOWER:...

  • Page 26: How To Activate The Cml4255

    7.2 HOW TO ACTIVATE THE CML4255 After the previous steps the Mobeye CML4255 is ready for use. It is armed automatically. In order to switch off (disarm) the CML4255: - Press the button at the backside for 1 second. The green LED switches off to indicate the disarmed status.

  • Page 27: Sms Reports When Using Own Sim Card

    The signal strength of the used mobile network can be requested. If the network is weak, it is advised to use a SIM card of another network provider or an external antenna (a Mobeye accessory). The signal strength can be requested by sending following SMS text message:...

  • Page 28: Technical Messages

    7.5 TECHNICAL MESSAGES In the event of technical issues the telephone number programmed in at position 1 (TEL1) receives an SMS message. Possible technical messages are: Message Reason Low batteries, external power Power is available, batteries need to be replaced. supply OK No external power supply, No external power supply, batteries are able to take...

  • Page 29: Status Feedback

    8. STATUS FEEDBACK LED pattern Status Required action Blinking green, 1 second Module not configured Configure at least one on / 1 second off telephone number. 1 green flash every 3 Module is switched on, No action required. seconds powered by batteries Green LED stays on Module is switched on, No action required.
  • Page 30 Publisher. Reprinting, even in summary, is prohibited. This user manual meets the technical requirements at the moment of printing. Changes in technology and equipment are reserved. © Copyright 2021 by Mobeye, version CML4255-EN211101...
