USER MANUAL

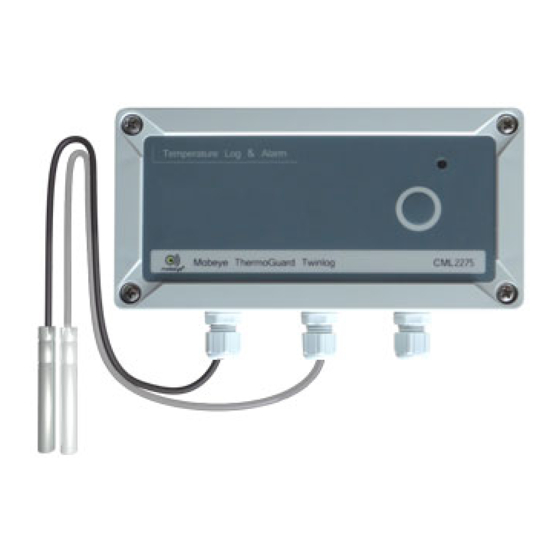

ThermoGuard TwinLog
CML2275
SW version 4.n

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ThermoGuard TwinLog CML2275 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mobeye ThermoGuard TwinLog CML2275

Summary of Contents for Mobeye ThermoGuard TwinLog CML2275

  • Page 1 USER MANUAL ThermoGuard TwinLog CML2275 SW version 4.n...
  • Page 3 • Do not use in an environment where any inflammable gases, vapors or dust are present or could be present. ® • Repair of the device may only be carried out by people, trained for Mobeye repair. • If the device must be repaired, only original replacement components may be used. The ®...

  • Page 4: Table Of Contents

    CONTENT 1. General description 2. Getting started Insert a SIM card Connect the temperature sensor(s) Insert the batteries Enter the program mode Program at least one telephone number Program threshold values for the inputs Switching on/off Confirmation of the alarm message 3.
  • Page 5 Output behaviour 6.19 Automatic arming / disarming 6.20 Buttonlock 6.21 Test message 6.22 Additional log functions in the Mobeye internet portal 6.23 System reset 7. Request list of the status, settings and signal strength 8. Technical messages and status feedback...

  • Page 6: General Description

    ‘Temperature OK’, followed by the measured temperature. - If one of the inputs is activated by a sensor, the Mobeye CML2275 sends an alarm SMS text message and calls the phone numbers as programmed.
  • Page 7 - The configuration of the Mobeye CML2275 can be done either via the web-based environment or via the SMS commands as described in this manual. - In the event of an alarm situation, the Mobeye CML2275 will call the phone numbers as programmed and send a message to the portal. The portal will despatch the message to contact persons (SMS and/or e-mail), which are preconfigured in the portal.

  • Page 8: Getting Started

    2. GETTING STARTED To get started with the Mobeye CML2275, at least the following steps need to be taken in the following order: 1. Insert a SIM card 2. Connect the temperature sensor(s) 3. Insert the batteries 4. Enter the program mode 5.

  • Page 9: Connect The Temperature Sensor(S)

    2.2 CONNECT THE TEMPERATURE SENSOR(S) Plug the external temperature sensor into the socket on the PCB (sensor 1) and press it firmly. It is possible to connect two temperature sensors. Then insert the sensor head through the swivel to outside. It is possible the bring out only the a part of the head of the sensor, or the entire sensor with a part of the cable, depending on the application.

  • Page 10: Enter The Program Mode

    2.5 PROGRAM AT LEAST ONE TELEPHONE NUMBER The Mobeye CML2275 is able to send messages up to 5 telephone numbers. The first telephone number (TEL1) belongs to the administrator. Technical messages (such as battery low) are sent to the administrator only.

  • Page 11: Program Threshold Values For The Inputs

    All limits can be set between -35 and +70 ºC. Negative values are set by placing a “-” in front of the value. To enter a temperature limit, be sure the Mobeye CML2275 is in program mode. Send an SMS text message to the unit with following content for the first sensor:...

  • Page 12: Confirmation Of The Alarm Message

    2.8 CONFIRMATION OF THE ALARM MESSAGE When the system is triggered it will send alarm notifications. First an SMS text message is sent to all programmed alarm numbers, followed by a phone call. When you pick up the phone, you will hear beeps. It is possible to confirm the phone call by answering the phone and pressing any key.

  • Page 13: Use Of External Power Supply

    3. USE OF EXTERNAL POWER SUPPLY Although the Mobeye CML2275 is designed to run on batteries, it is possible to use an external power supply. In this mode the module is always connected with the GSM network and therefore always in program mode. When the power fails, the batteries take over and a power failure message is sent.

  • Page 14: Use Of The Inputs And Output

    6.8. 4.2 CONNECT A DEVICE TO THE OUTPUT The Mobeye CML2275 has an open collector output, which switches after receiving a correct SMS or after an alarm. The output...

  • Page 15: Control The Output Via Sms Command

    To switch devices, a relay can be placed behind the output with an input voltage of 12VDC. The required switching voltage of the relay depends on the device connected. NOTE: The output does not work if the CML2275 is battery-operated. 4.3 CONTROL THE OUTPUT VIA SMS COMMAND If CML2275 has external power, the GSM module is always open, able to receive an SMS command to switch the output.

  • Page 16: Configuration

    5. CONFIGURATION To program the Mobeye CML2275, the GSM module must have network connection. In case only batteries are used, first switch the unit to the program mode. Next send SMS commands for the configuration. All settings are stored and will be kept in the unit, even in case the power supplies are removed.

  • Page 17: The (Security) Code

    5.2 THE (SECURITY) CODE For configuration activities the (security) code of the Mobeye CML2275 must be used. The initial (security) code is ‘1111’. You can change the (security) code to your own code. See section 4.4. 5.3 PROGRAMMING THE SETTINGS BY SMS To program the settings by SMS text message: 1.

  • Page 18: List Of Sms Commands For Configuration

    Lower limit temperature LTL1: -35··· 70 (ºC) sensor 1 and 2 LTL2: Upper limit temperature HTL1: -35··· 70 (ºC) sensor 1 and 2 HTL2: Mobeye Identification text NAME: 20 characters Call on/off CALL: ON, OFF SMS on/off SMS: ON, OFF...
  • Page 19 Setting SMS Command Options Default value Text temperature TEXT3: 20 characters Temperature restoration sensor 1 1 OK: Text at too low TEXT4: 20 characters Temperature temperature sensor 2 2 too low: Text at too high TEXT5: 20 characters Temperature temperature sensor 2 2 too high: Text temperature TEXT6:...

  • Page 20: Possible Settings

    6. POSSIBLE SETTINGS 6.1 PHONE NUMBERS The Mobeye CML2275 is able to send alarm messages to up to 5 phone numbers. The first telephone number (TEL1) belongs to the administrator. Only this number receives all system messages. The other phone numbers (including the administrator) only get the alarm messages.

  • Page 21: Identification Text

    It is possible to add a standard identification text (NAME) to all messages sent out by the Mobeye CML2275. The alarm messages are a combination of the name and the alarm text. A user defined identification has a length of maximum 20 characters. The default identification text is ‘Mobeye’.

  • Page 22: Call On/Off

    1111 SMS:OFF 6.6 CALL ON/OFF By default, the Mobeye CML2275 sends alarm notifications via text message and calls the preset contact persons. By turning off the CALL, the unit will only send an SMS text message as alarm notification. It is not possible to switch off both the SMS and the call.

  • Page 23: Input Type

    6.9 INPUT TYPE The input type defines the character of the inputs IN1 and IN2. This can be Normally Open (NO) or Normally Closed (NC). If an input is set to NO, the alarm will be triggered as soon as the terminals of the input are closed. If the input is set to NC, the alarm is triggered when the connection between the input terminals is broken.

  • Page 24: Power Failure Delay Time

    6.12 POWER FAILURE DELAY TIME If the Mobeye CML2275 is powered externally and the power fails it can notify the contact person(s). The power failure delay time defines the time between the initial power failure and the alarm notification. If the power is restored within the delay time, no alarm is sent.

  • Page 25: Temperature Calibration

    For each temperature sensor a calibration can be entered. Example: the Mobeye CML2275 measures 13 °C. Actual ambient temperature: 13,5 °C. To adjust this difference, +0,5 degrees shall be programmed.

  • Page 26: Output Behaviour

    1111 OUTPUT:ALARM 6.19 AUTOMATIC ARMING / DISARMING The Mobeye CML2275 only works if the unit is armed, which is done via the button. It is possible to automatically arm and disarm the unit, based on an arming and/or disarming time scheme. Two schemes can be entered, which can be assigned to the days in the week (e.g.

  • Page 27: Buttonlock

    1111 BUTTONLOCK:OFF 6.21 TEST MESSAGE The Mobeye CML2275 can send regular test SMS messages (keep alive) to the administrator (first phone number), to ensure the proper functioning of the unit. The test message function is only active if the unit is armed.

  • Page 28: Additional Log Functions In The Mobeye Internet Portal

    1111 TEST:21 6.22 ADDITIONAL LOG FUNCTIONS IN THE MOBEYE INTERNET PORTAL The Mobeye CML2275 can run standalone and is ready for use, after inserting a SIM card from any provider. However, with a subscription to the Mobeye SIM / portal services and a registration in the Mobeye Internet Portal (www.mymobeye.eu) the...

  • Page 29: System Reset

    6.23 SYSTEM RESET To reset the Mobeye CML2275 to its factory settings: 1. Remove the batteries (and external power supply). 2. Press the outside button while reinserting the batteries. Keep it pressed for (about) another 5 seconds. 3. Release the button immediately after the LED starts to flash.

  • Page 30: Request List Of The Status, Settings And Signal Strength

    Mobeye CML2275, from any telephone. Before sending the request, make sure the unit is in the program mode (please refer to 5.1). Upon sending the command, the Mobeye CML2275 returns an SMS text message to the originator of the request. The commands are case insensitive.
  • Page 31 The signal strength of the used mobile network can be requested. If the network is weak, it is advised to use a SIM card of another network provider or an external GSM antenna (a Mobeye accessory). The GSM signal strength can be requested by sending following SMS text message:...

  • Page 32: Technical Messages And Status Feedback

    8. TECHNICAL MESSAGES AND STATUS FEEDBACK Technical messages In the event of technical issues the administrator receives an SMS message. Possible technical messages are: Message Reason Low batteries, external power Power is available, batteries need to be supply OK replaced No external power supply, No external power supply, batteries are able to batteries OK...
  • Page 33 Status feedback LED pattern Status Required action Blinking green, 1 second Module not configured Configure at least one on / 1 second off telephone number 1 green flash every 3 Module is switched on, No action required seconds powered by batteries Green LED stays on Module is switched on, No action required...
  • Page 34 Publisher. Reprinting, even in summary, is prohibited. This user manual meets the technical requirements at the moment of printing. Changes in technology and equipment are reserved. © Copyright 2016 by Mobeye, version CML2275EN170209...
