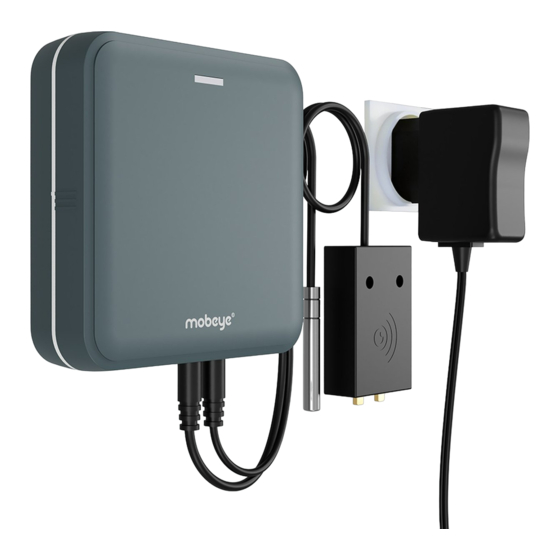

USER MANUAL
Mobeye
CombiGuard
®
CM4600
SW version 1.n

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CombiGuard CM4600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mobeye CombiGuard CM4600

Summary of Contents for Mobeye CombiGuard CM4600

  • Page 1 USER MANUAL Mobeye CombiGuard ® CM4600 SW version 1.n...

  • Page 3: Table Of Contents

    Connect an external power supply (optionally) Connect a sensor to input 1 (optionally) Network connection and program mode 4. Programming when using the Mobeye SIM and portal Sign up in the Mobeye Internet Portal Register the Mobeye SIM card Configuration and synchronisation...
  • Page 4 How to activate the CombiGuard System reset SMS reports when using own SIM card Technical messages 8. Status feedback...
  • Page 5 • Do not let it fall from height. • Do not use in an environment where any inflammable gases, vapors or dust are present or could be present. • Repair of the device may only be carried out by people, trained for Mobeye ® repair.

  • Page 6: General Description

    In order to activate the device, a few steps are to be followed. First of all, you need to insert a SIM card. With the Mobeye SIM card, the CombiGuard uses the 4G LTE-M network. This network has a strong network coverage, deep penetrability in buildings and also works in remote areas.

  • Page 7: Standard Behaviour

    Portal, to be forwarded to the ‘alarm contacts’. When the power is restored, the Mobeye CombiGuard sends a ‘power restored’ message. - When one of the sensor inputs remain in the alarm status, the Mobeye CombiGuard repeats sending the alarm message via the Mobeye Internet Portal every four hours.

  • Page 8: Mobeye Combiguard With Own Sim Card

    ‘Temperature OK’. - In the situation of a water alarm, the Mobeye WaterGuard sends an alarm SMS text message and calls the phone numbers programmed in by the user.
  • Page 9 SMS text message containing the text ‘Input 1 OK’ followed by the measured value. - When the second input is activated by a sensor, the Mobeye CombiGuard sends an alarm SMS text message and calls the phone numbers programmed in by the user.

  • Page 10: Getting Started

    3. GETTING STARTED To get started with the Mobeye CombiGuard, at least the following steps need to be taken in the following order: 1. Open the casing and insert the SIM card 2. Connect the water sensor (optionally) 3. Connect the temperature sensor (optionally) 4.

  • Page 11: Open The Casing And Insert The Sim Card

    Insert the SIM card into the module. When using the Mobeye SIM card: The Mobeye SIM card is PIN code secured and will only work in a Mobeye device. Please do not place it in another device. When using your own SIM card: An own SIM card has a “micro”...

  • Page 12: Connect The Temperature Sensor

    Be aware: connecting the wires wrongly can lead to a defective device! 3.5 CONNECT A DEVICE TO THE OUTPUT The Mobeye CombiGuard features an open collector output. The output can switch automatically after an alarm or after receiving the SMS text message CODE O1ON and CODE O1OFF (e.g.

  • Page 13: Connect An External Power Supply (Optionally)

    Connect the power adapter (or any other regulated 12-24V DC power supply) to the power input of the connector (press on the green pins to connect the wires). Mobeye adapter 10027 position - V+ to “+” black lead with white stripe left - Ground to “-“...

  • Page 14: Network Connection And Program Mode

    3.9 NETWORK CONNECTION AND PROGRAM MODE After placing the batteries (and external power) the Mobeye CombiGuard will search for the network. The outside LED flashes green and red. This process normally takes 10-30 seconds, in a new device this can take some minutes.

  • Page 15: Programming When Using The Mobeye Sim And Portal

    Follow the instructions on the screen. You will receive an e-mail to confirm the new account. After confirmation login on the portal. If you do not receive this e-mail, please check your spam box or ask Mobeye (info@mobeye.com). 4.2 REGISTER THE MOBEYE SIM CARD...

  • Page 16: Configuration And Synchronisation

    4.3 CONFIGURATION AND SYNCHRONISATION The device settings can be programmed in the Mobeye Internet Portal. In this way you prepare the settings, to be picked up by the device. Since the Mobeye device is leading in the communication between the portal and the device, the data synchronisation is done after: 1) any message to the portal (e.g.
  • Page 17 Device Settings The device settings can be changed via the Mobeye Internet Portal. To do this, click on the "edit" icon and type in the security code (factory setting is "1111"). See chapter 5 for the description per setting. After saving the new settings, they must be retrieved by the device (synchronized).

  • Page 18: How To Activate The Combiguard

    SMS command to switch off: CODE DISARM (e.g. 1111 DISARM) To update the status in the Mobeye Internet Portal: press the button for 5 seconds, or - if the device is externally powered - send a question mark to the unit (without code).

  • Page 19: System Reset

    The security code is back to factory settings as well. The SIM card is now disconnected and is visible on the "Add device" screen. The SIM card can be used again in another (or the same) Mobeye device in combination with the portal.

  • Page 20: Possible Settings

    5. POSSIBLE SETTINGS The Mobeye CombiGuard has many setting options that influence the behaviour of the module. If connected on the Mobeye Internet Portal, the settings are prepared in the portal (see chapter 4). If your own SIM card is used, programming is done via SMS commands (see chapter 9).

  • Page 21: Input Type

    messages can be set between 0 days (no test message) and 30 days. The default test interval is set to "0" (no test message). 5.3 INPUT TYPE The input type defines the character of the additional inputs IN1 and IN2. This can be Normally Open (NO), Normally Closed (NC), or Analog (AN).

  • Page 22: Minimum And/Or Maximum Temperature Limit

    0 and 48V can be entered, with one decimal (e.g. 10 or 10,2). 5.11 POWER FAILURE MESSAGE If the Mobeye CombiGuard is supplied with external power and the power fails, it can send alarm messages. If the setting is "OFF", no message is sent.

  • Page 23: Output Behaviour

    By default, the pulse time is set to "5" seconds. 5.15 AUTOMATIC ARMING / DISARMING The Mobeye CombiGuard only works if the unit is armed, which is done via the on/off button. It is possible to automatically arm and disarm the unit, based on an arming and/or disarming time scheme.

  • Page 24: Buttonlock

    5.17 LOW POWER MODE The low power mode is only important with an externally powered Mobeye CombiGuard. If the (factory) mode is set to “OFF”, the communication module will always have a network connection. When set to “ON” the behaviour is the same as for a battery-powered device;...

  • Page 25: Programming When Using Own Sim Card

    If the CombiGuard is connected to an external power supply, it has continuous network connection and is permanently in program mode. A battery-operated Mobeye CombiGuard switches to the program mode after re-inserting the batteries or pressing the button at the back for 5 seconds.

  • Page 26: Program At Least One Telephone Number

    Both limits can be set between -35 ºC and +70 ºC with one decimal. Negative values are entered by placing a “-” in front of the value. To enter a temperature limit, be sure the Mobeye CombiGuard is in program mode. Send an SMS text message to the unit with following content:...

  • Page 27: List Of Sms Commands For Programming With Own Sim

    Interval ‘test SMS’ TEST: 0 ··· 30 (days) Time test message TESTTIME: hhmm Identification text NAME: 20 characters Mobeye Input type input 1 TYPEIN1: NO, NC, AN Input type input 2 TYPEIN2: NO, NC, AN Delay on input 1 DELAY1: 0 ···...
  • Page 28 Setting SMS command Options Default value Output behaviour OUTPUT: OFF,ALARM,SMS Pulse time output TO1: 0 ··· 9999 (sec) Actual time TIME: hhmm Empty Actual date DATE: yyyymmdd Empty Arming time TIMEARM1: hhmm Empty Disarming time TIMEDISARM1: hhmm Empty 2nd arming time TIMEARM2: hhmm Empty...

  • Page 29: How To Activate The Combiguard

    7.2 HOW TO ACTIVATE THE COMBIGUARD After the previous steps the Mobeye CombiGuard is ready for use. It is armed automatically. In order to switch off (disarm) the CombiGuard: - Press the button at the backside for 1 second. The green LED switches off to indicate the disarmed status.

  • Page 30: Sms Reports When Using Own Sim Card

    Mobeye CombiGuard, from any telephone number. Before sending the request, make sure the unit is in the program mode (see 6.1). Upon sending the command, the Mobeye CombiGuard returns an SMS text message to the originator of the request. The commands are case insensitive.

  • Page 31: Technical Messages

    7.5 TECHNICAL MESSAGES In the event of technical issues the telephone number programmed in at position 1 (TEL1) receives an SMS message. Possible technical messages are: Message Reason Low batteries, external power Power is available, batteries need to be replaced. supply OK No external power supply, No external power supply, batteries are able to take...

  • Page 32: Status Feedback

    8. STATUS FEEDBACK LED pattern Status Required action Blinking green, 1 second Module not configured Configure at least one on / 1 second off telephone number. 1 green flash every 3 Module is switched on, No action required. seconds powered by batteries Green LED stays on Module is switched on, No action required.
  • Page 34 Publisher. Reprinting, even in summary, is prohibited. This user manual meets the technical requirements at the moment of printing. Changes in technology and equipment are reserved. © Copyright 2022 by Mobeye, version CM4600-EN220101...
