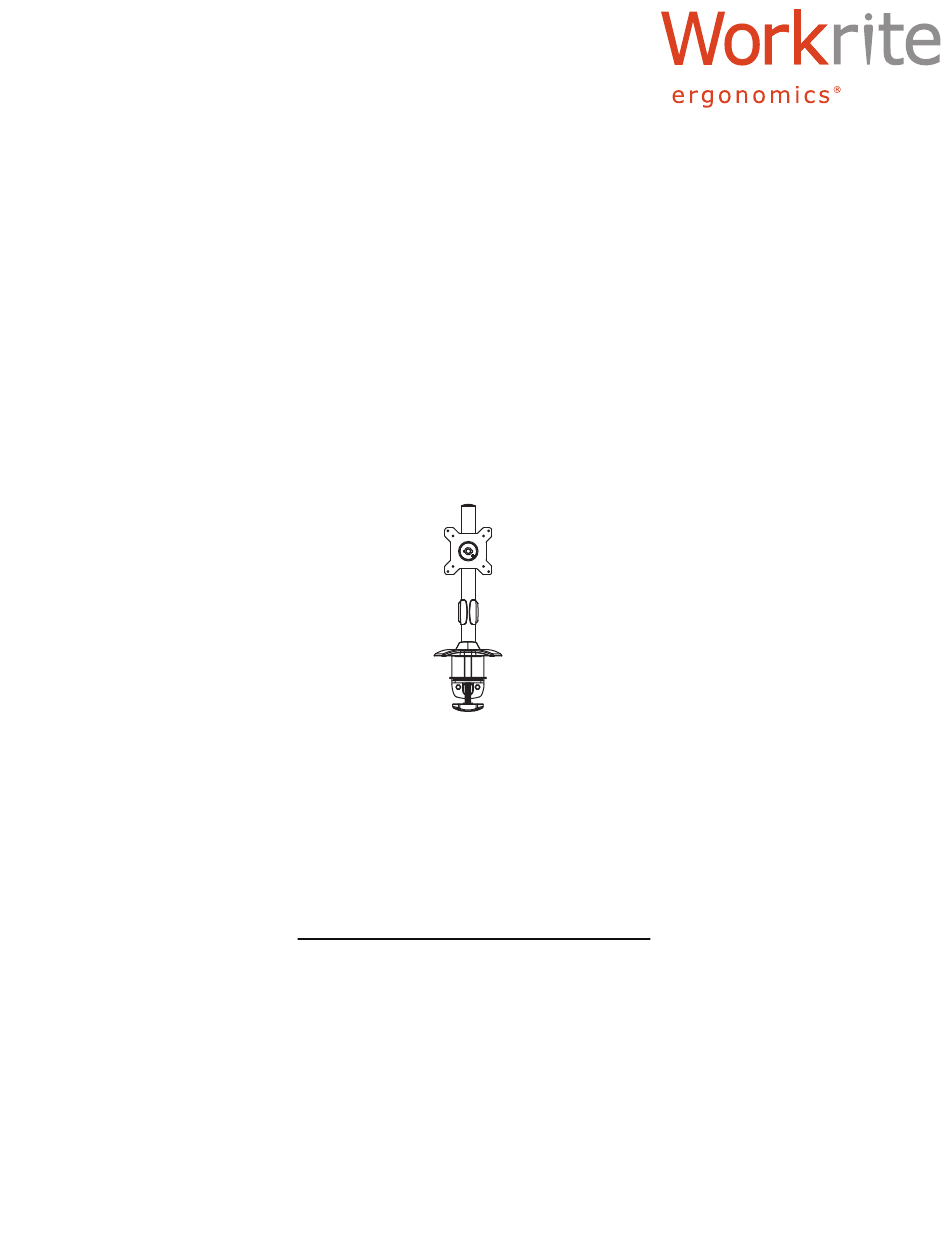

- Page 1 Workrite Sequoia Assembly Instructions for Model SQ-101 #1500200 - Rev A...
- Page 2 Parts grouped by carton Note: Part letters are nonsequential to accommodate all Sequoia Models Capped Pole carton, 1 monitor, includes base: Hardware Packs: Capped Pole Collar Qty: 1 Qty: 1 M5 × 4mm Set Screw for Collar Center VESA Mount Qty: 3 Qty: 1 Cable Manager...
- Page 3 2.5mm Hex Wrench (I) Install Cable Manager (B) onto the Pole and slide down to the bottom. Place Collar (C) onto the pole about 6” up from the bottom and install Set Screw (G) and tighten securely. Workrite Ergonomics 800.959.9675 www.workriteergo.com...
- Page 4 Center Monitor Mount: Align the Center VESA Mount (J) to the VESA pattern in the monitor. Install 4 VESA Mount Screws (H) and tighten securely with a #2 Phillips screwdriver. Workrite Ergonomics 800.959.9675 www.workriteergo.com...
- Page 5 Workrite Sequoia Monitor Arm - Assembly Instructions Attach Center Monitor to Pole Place Center VESA Mount (J) on Pole and rest on collar (C). Install Ratchet Lever (D) into the rear of the Center VESA Mount (J) and tighten. Workrite Ergonomics 800.959.9675 www.workriteergo.com...
- Page 6 Collar (C) to lower or raise the Center VESA Mount. Vertical Adjustment with Ratchet Lever & Collar Guide monitor and power cables over and around Ratchet Levers and Wing Knobs then through the Cable Manager (B). Workrite Ergonomics 800.959.9675 www.workriteergo.com...
