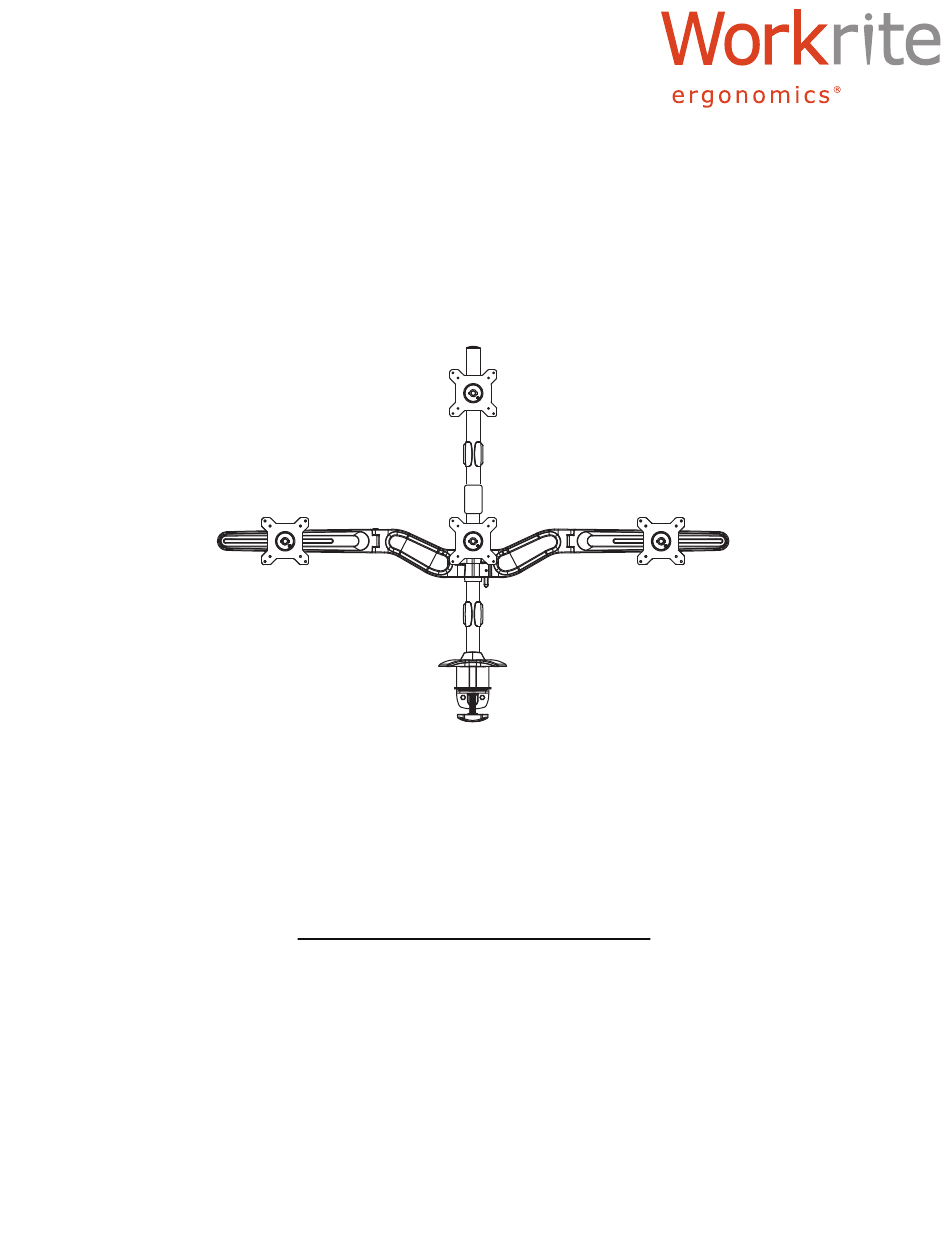

- Page 1 Workrite Sequoia Assembly Instructions for Model SQ-413 #1500206 - Rev A...
- Page 2 Parts grouped by carton Note: Part letters are nonsequential to accommodate all Sequoia Models Capped Pole carton, 3 monitors, includes standard base: Capped Pole Center VESA Mount M8 × 50mm Arm Bolt Qty: 1 Qty: 1 Qty: 2 Steel Spacers Cable Manager Qty: 2 Qty: 1...
- Page 3 Extension Pole carton, 1 monitor: Hardware Packs: Extension Pole Collar Qty: 1 Qty: 1 M5 × 4mm Set Screw for Collar Center VESA Mount Qty: 3 Qty: 1 Pole Coupler M4 × 8mm VESA Mount Qty: 1 Screws Qty: 4 Cable Manager 2.5 mm Hex Wrench Qty: 1...
- Page 4 Assemble Desk Mount C-Clamp Mount: Note: If you have easy access you can assemble the clamp before placing it onto the work surface and tightening it down. Place the Clamp Base (T) over the rear edge of the workstation. Attach the Clamp Bracket to the Clamp Base with 4 M6 ×...
-
Page 5: Important Note
Attach Monitor Mounts to Monitors Important Note It is strongly recommended to use the mounting screws provided by the monitor manufacturer if possible. Always use the shortest screws possible to avoid damage to the monitor. Note: At this time you can chose to install the monitors in landscape or portrait orientation. - Page 6 Left Attach Wing Bar Mounts to Pole Place the Right Wing Bar Mount (M) onto the Pole to rest on the Collar. Place the Left Wing Bar Mount (N) onto the extension pole to rest on the Right Wing Bar Mount. Install Ratchet Levers (D) into the rear of both Wing Bar Mounts and tighten.
- Page 7 Attach Center Monitor to Pole Place Center VESA Mount (J) on Pole and rest on Wing Mount. Install Ratchet Lever (D) into the rear of the Center VESA Mount and tighten. Note: It’s a combination of the Ratchet Lever, Wing Mount AND the Collar that holds the monitor in place.
- Page 8 Add Capped Pole Install the Pole Coupler (BB) into the threads on the Extension Pole (AA) and tighten securely. Install the Capped Pole (A) into the threads on the Pole Coupler and tighten securely. Insert 2 Set Screws (G) into the Coupler. Tighten securely with the 2.5mm Hex Wrench (I).
- Page 9 Attach Center Monitor to Pole Place Center VESA Mount (J) on Pole and rest on collar (C). Install Ratchet Lever (D) into the rear of the Center VESA Mount (J) and tighten.
- Page 10 Make Adjustments & Secure Cables Important Note It is recommended to have two people adjusting multiple monitor & configurations after monitors are mounted to the arm assembly. Monitor Tilt & Swivel Adjustments Depending on the size of your monitor, it may be necessary to adjust the tilt and swivel setting.
