Summary of Contents for Trumpf OMLOX SATELLITE

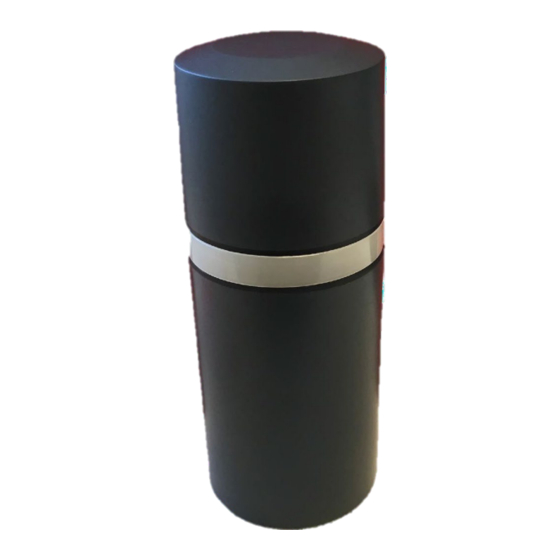

- Page 1 User Guide OMLOX SATELLITE...
- Page 2 TRUMPF. This document has been made available as part of the license that has been granted to an authorized user of TRUMPF software. It is intended solely for the information and use of parties operating and maintaining the equipment described herein.
-
Page 3: Table Of Contents
3.3. Antenna radiation patterns 3.4. Equipment needs System configurations 4.1. IP assignment for omlox Satellites 4.2. omlox Satellite used as Wi-Fi access point Deployment instructions 5.1. omlox Satellite start 5.2. omlox Satellite placement 5.3. omlox Satellite control Ask for support... -
Page 4: Introduction
(UWB) pulses for real-time 3D location of objects in buildings in various industries. omlox Satellites are used as fixed bases in TRUMPF RTLS. They are synchronized with each other and interface with mobile devices such as WTags and SmartAntennas. The mobile devices are tracked in two modes which can coexist: Multi- Tag Tracking (server-centric) and GPS-like Positioning (device-centric). -
Page 5: Safety And Compliance Information
CAUTION: UWB devices may not be employed for the operation of toys. Operation onboard an aircraft, a ship or a satellite is prohibited. CAUTION: Any changes or modifications not expressly approved by TRUMPF could void the user's authority to operate this equipment. - Page 6 EU Conformity Declaration omlox Satellite User Guide...
-
Page 7: Specification
∅ 92 mm Dimensions h 237 mm • Power supply RJ45 PoE, USB C • Operating temperature range 50° max. • IP code • Pre-programmed Unique ID 64 bits • Light indicators see table on next page omlox Satellite User Guide... -
Page 8: Hardware Overview
Connected, unmuted and ~1Hz heart beat scanning Connected, unmuted and White Continuous Lighting ranging level 100% On error Continuous 3.2. Hardware overview front view casing of integrated UWB antenna 360° RGB LED strip casing of core PCB omlox Satellite User Guide... - Page 9 USB C connector individual label Ethernet connector pulsing green mini LED (starting status) continuous orange mini LED (power supply) individual label omlox Satellite User Guide...
-
Page 10: Antenna Radiation Patterns
3.3. Antenna radiation patterns The 3D radiation pattern of omlox Satellite's omni-directional antenna is similar to a thick torus shape. Radiation pattern and diagrams following different planes complete device 350 8.0 350 8.0 350 8.0 -4.0 -4.0 -4.0 -10.0 -10.0 -10.0... -
Page 11: Equipment Needs
A device which hosts the location server (industrial PC such as TRUMPF LocBox, pre- • configured for TRUMPF RTLS) A PC with an Ethernet connection to access the Web UI of TRUMPF RTLS as well as the • maintenance application of the system –... -
Page 12: System Configurations
System configurations 4.1. IP assignment for omlox Satellites Within TRUMPF RTLS, every omlox Satellite is given an own IP address by a DHCP server. • The DHCP server role depends on the networks in the installation environment: Either the device which hosts the location server is used as DHCP server for omlox •... -
Page 13: Deployment Instructions
5.3. omlox Satellite control omlox Satellites are configured and controlled via the Web UI of TRUMPF RTLS or via another application based on a compatible session protocol. For more information, please refer to the corresponding documentation. It can be either the documentation included in the RTLS DELIVERY Pack or the documentation dedicated to the compatible application. -
Page 14: Ask For Support
We offer standardized as well as customized solutions. Please note that all documents may be updated without notice to individual customers beforehand. We provide remote assistance by e-mail at sven.futschik@trumpf.com. [WJ1][WE2] case of support request, please indicate your system references. omlox Satellite User Guide... - Page 15 Johann-Maus-Str. 2 71254 Ditzingen Germany Telephone +49 7156 3030 Fax +49 7156 30330309 mailto:info@de.trumpf.com...
