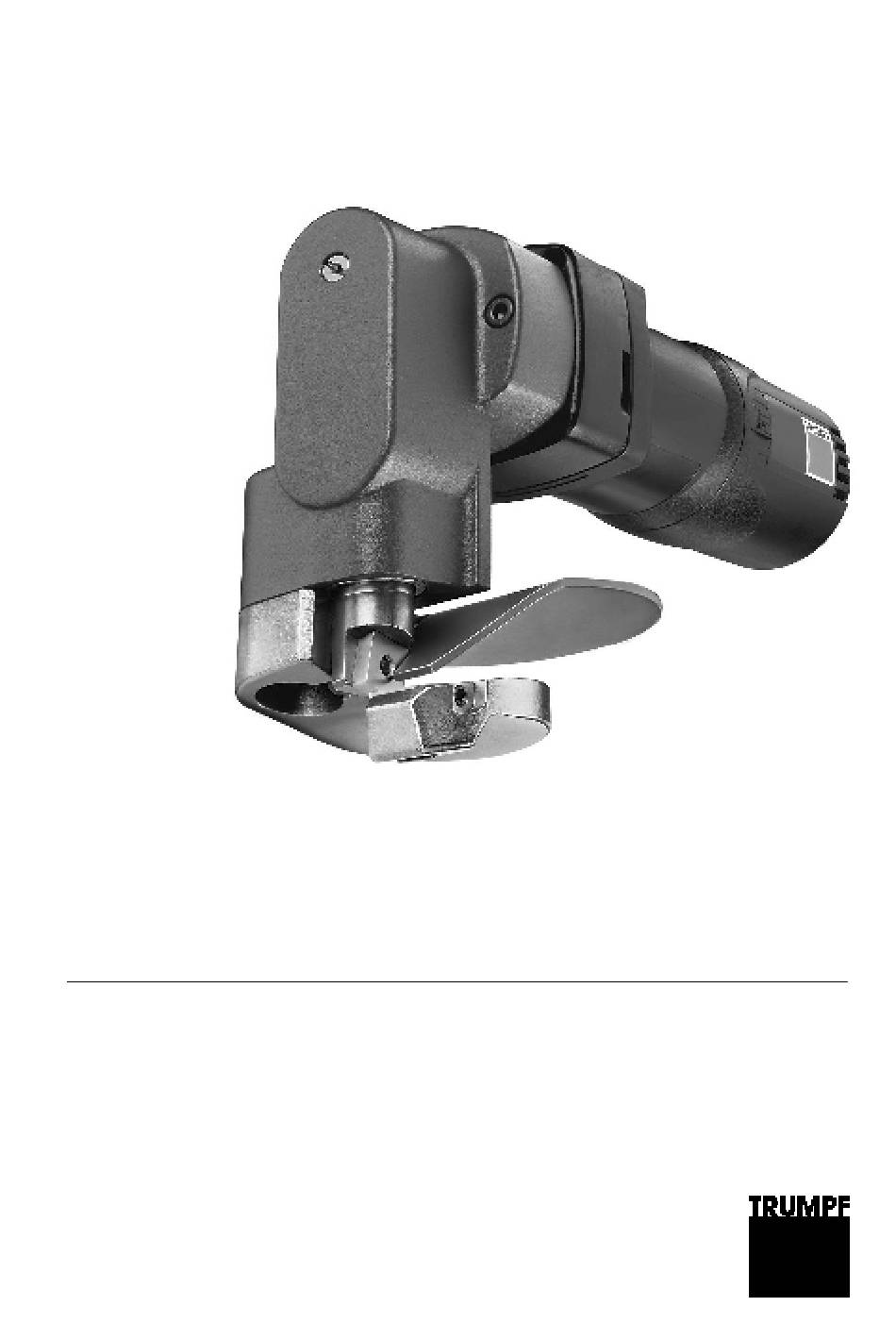

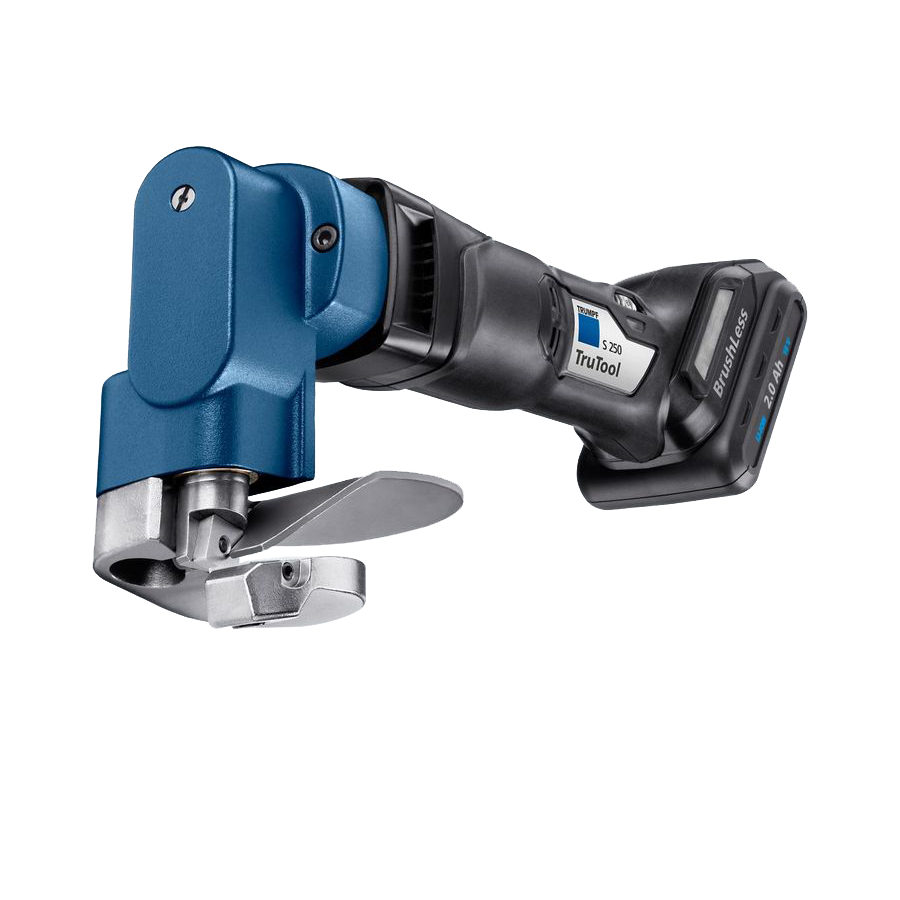

- Page 1 Operator's manual TruTool S 250 (1A1) english...
-
Page 2: Table Of Contents
Technical data TruTool S 250 ..........7 Tool assembly..............8 Selecting the blade ..............8 Setting the cutting clearance ..........9 Operation ................10 Working with the TruTool S 250 ........10 Maintenance ..............11 Changing the blade............12 Replacing carbon brushes ..........13 Original accessories and wearing parts......14... -
Page 3: Safety
Safety Read the Operator's Manual and the general safety rules USA/CAN (Material number 1239438, red document) in their entirety before starting up the machine. Follow precisely the directions contained therein. Rest of the world Read the Operator's Manual and the safety instructions (Material number 125699, red document) in their entirety before starting up the machine. - Page 4 Arrange for start-ups and checks on manual electric tools to be carried out by a trained specialist. Only used the original accessories provided by TRUMPF. Risk of injury from chip! Use chip deflector.
-
Page 5: Description
20 Upper blade and lower blade 24 Fixed blade carrier 15 Ram 21 Fixing screw for the upper blade 25 Chip deflector 19 Adjusting screw 23 Fixing screw for the lower blade 127 On/Off switch TruTool S 250 Fig. 36728 Description E518EN_04.DOC... -
Page 6: Correct Use
For processing and materials, only use machines which are named in "Correct use". Warning The TRUMPF portable shears TruTool S 250 are an electric hand tool used for the following applications: • Slitting of plate-shaped workpieces made of steel, aluminium, non-ferrous heavy metal and plastic. -
Page 7: Technical Data Trutool S 250
Technical data TruTool S 250 Rest of the world Values Values Values Values Voltage 230 V 120 V 110 V 120 V Frequency 50/60 Hz 50/60 Hz 50 Hz 50/60 Hz • Steel 2.5 mm 2.5 mm 2.5 mm 0.1 in 400 N/mm²... -
Page 8: Tool Assembly
Tool assembly Selecting the blade Damage to property can result from improper blade selection! The quality of the cut will be severely impaired and the individual tools will be overloaded. Caution Use only appropriate tools. The blade is notable for the following points: •... -
Page 9: Setting The Cutting Clearance
Setting the cutting clearance The blade clearance "a" is factory-set to a sheet thickness of 2.0 mm when the machine is first delivered (see Fig. 10182, Pg. 12). Set the following values to obtain optimum cutting results: Sheet thickness [mm] Blade clearance [mm] 0.3-0.8 0.8-1.3... -
Page 10: Operation
Operation Working with the TruTool S 250 Switching on the Move the On/Off switch to the front. TruTool S 250 Working with the TruTool S 250 Fig. 37872 1. Do not move the machine towards the workpiece until full speed has been reached. -
Page 11: Maintenance
Maintenance Possible lethal danger due to electric shock! Pull the plug out of the socket when carrying out tool changes and before all maintenance work on the machine. Danger Damage to property possible due to blunt tools! Overloading of the machine. Check the cutting edge of the cutting tool hourly for wear. -
Page 12: Changing The Blade
Changing the blade Possible lethal danger due to electric shock! Pull the plug out of the socket when carrying out tool changes and before all maintenance work on the machine. Danger Upper and lower blades are identical. They each have 4 cutting edges and can be used interchangeably. -
Page 13: Replacing Carbon Brushes
Replacing carbon brushes The motor comes to a standstill when the carbon brushes are worn out. Have the carbon brushes checked and replaced as needed by a trained technician. Note Only use original replacement parts and observe the specifications on the type plate. Maintenance E518EN_04.DOC... -
Page 14: Original Accessories And Wearing Parts
Required delivery type (e.g. air mail, courier, express mail, – ordinary freight, parcel post). 4. Send the order to the TRUMPF representative office. For TRUMPF service addresses, see the address list at the end of the document. Original accessories and wearing parts E518EN_04.DOC...
