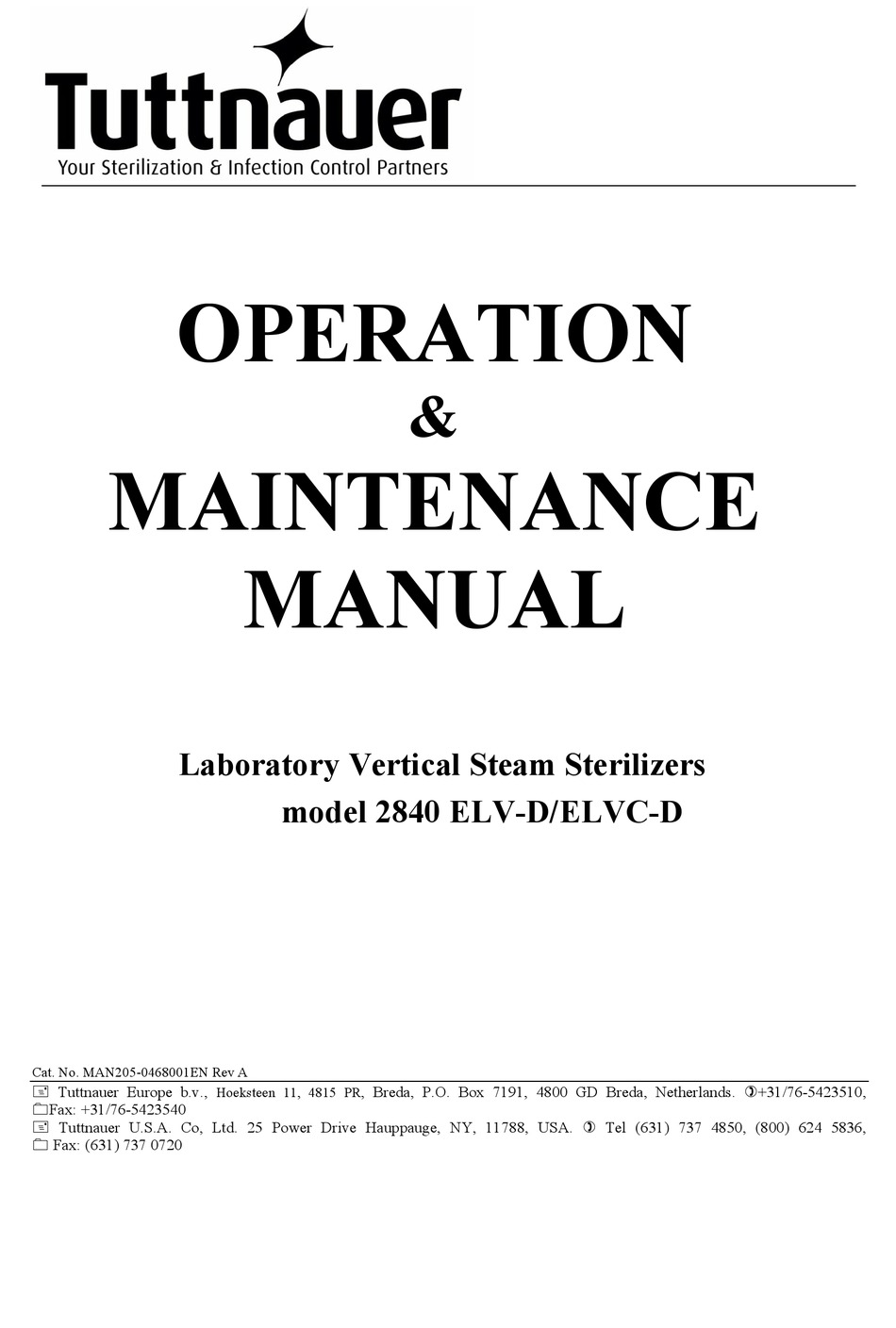

OPERATION
&
MAINTENANCE
MANUAL
Laboratory Vertical Steam Sterilizers
model 2840 ELV-D/ELVC-D
Cat. No. MAN205-0468001EN Rev A
 Tuttnauer Europe b.v.,
, Breda, P.O. Box 7191, 4800 GD Breda, Netherlands. +31/76-5423510,
Hoeksteen 11, 4815 PR
Fax: +31/76-5423540
 Tuttnauer U.S.A. Co, Ltd. 25 Power Drive Hauppauge, NY, 11788, USA.  Tel (631) 737 4850, (800) 624 5836,
 Fax: (631) 737 0720

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2840 ELV-D and is the answer not in the manual?

Questions and answers

Related Manuals for Tuttnauer 2840 ELV-D

Summary of Contents for Tuttnauer 2840 ELV-D

  • Page 1 , Breda, P.O. Box 7191, 4800 GD Breda, Netherlands. +31/76-5423510, Hoeksteen 11, 4815 PR Fax: +31/76-5423540  Tuttnauer U.S.A. Co, Ltd. 25 Power Drive Hauppauge, NY, 11788, USA.  Tel (631) 737 4850, (800) 624 5836,  Fax: (631) 737 0720...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS PARAGRAPH PAGE NO. GENERAL ......................4 Incoming Inspection ..................4 Warranty ......................4 Warranty Statement ..................4 Accessories....................5 SAFETY INSTRUCTIONS ..................6 TECHNICAL DATA.....................8 Introduction ....................8 Operating Conditions...................9 Directives and Standards ................9 Environment Emission Information ............10 Electrical Data ...................10 Specifications .....................10 Loading Capacities ..................10 Construction ....................11 Utilities .......................11 3.10 Symbol Description ..................11...
  • Page 4 Entering the main menu................36 Cycle Parameters (Custom 1) ..............38 System Parameters..................44 History......................47 Maintenance ....................49 Advanced Options ..................54 Version information...................57 SCREENS ......................60 Screens following a complete successfully cycle – "Cycle Ended" ..60 Screens following aborted cycles after complete sterilization stage..61 Screens following a fail cycle: ..............62 PRINTER......................63 Printer Output....................63 Printer Handling..................65...
  • Page 5 TABLE OF CONTENT (Cont.) DRAWINGS PAGE NO. FRONT VIEW ......................12 REAR VIEW ........................13 OVERALL DIMENSIONS DRAWING (mm).............14 CONTROL PANEL DRAWING ..................18 BASKETS AND CONTAINERS .................84 Page 3 of 85 Pages...

  • Page 6: General

     Tuttnauer Europe b.v., Hoeksteen 11, 4815 PR, Breda, P.O. Box 7191, 4800 GD Breda, Netherlands. +31/76-5423510, Fax: +31/76-5423540, E-mail: info@tuttnauer.nl  Tuttnauer USA Co., Ltd., 25 Power Drive Hauppauge, NY 11788, USA : (800) 624 5836, (631) 737 4850, Fax: (631) 737 0720 e-mail:info@tuttnauerUSA.com.

  • Page 7: Accessories

    All transportation charges must be paid both ways by the owner. This warranty will be void if the unit is not purchased from an authorized full service Tuttnauer dealer. Accessories Basket accessories: A set of two baskets is available for the unit. The baskets are made of stainless steel wire and have a handle.

  • Page 8: Safety Instructions

    SAFETY INSTRUCTIONS The autoclave has unique characteristics. Please read and understand the operation instructions before first operation of the autoclave. The following issues may require instructions guidance provided by the manufacturer: how to operate the autoclave, the door safety mechanism, the dangers involved in circumventing safety means, how to ensure that the door is closed, and how to select a correct sterilization program.
  • Page 9 Open the door slowly to allow steam to escape and wait 5 minutes before you remove the load. When sterilizing liquids, wait 10 minutes. Once a month, ensure that the safety valves are functioning, and once annually a certified tester must conduct pressure chamber safety tests. Once annually, or more frequently, effective tests must be performed, i.e., calibration and validation.

  • Page 10: Technical Data

    TECHNICAL DATA TECHNICAL DATA Introduction Models 2840 2840 ELV/ELVC are vertical sterilizers designed especially for are vertical sterilizers designed especially for sterilization of instruments, liquids and other materials in hospital sterilization of instruments, liquids and other materials in hospital sterilization of instruments, liquids and other materials in hospital laboratories, medical laboratories, research inst laboratories, medical laboratories, research institutes, food laboratories itutes, food laboratories and...

  • Page 11: Operating Conditions

    Operating Conditions  The autoclave is intended to work in ‘indoor’ conditions only.  Only autoclavable materials shall be used.  The environment shall not exceed an ambient temperature range of 5ºC (41ºF)-40ºC (104ºF) and a relative humidity of 85% respectively.

  • Page 12: Environment Emission Information

    Environment Emission Information A. Peak sound level generated by the sterilizer is 70 / dBA with a back « sound level of 60 dBA. B. Total heat transmitted by the sterilizer is < 100 W/h Electrical Data Ampere (A) Voltage (V) 230V/1ph Hertz (Hz) 50/60 Hz...

  • Page 13: Construction

    Construction Chamber and door material Stainless steel Outer Cabinet Stainless Steel Chamber insulation Fiberglass with reinforced material Utilities 1 Ph, 230V/50/60Hz Power Power Supply Recommended Circuit Breaker Compressed Air (ELVC only) 1/2" 3-4 Bar (44-58 psi) Tap water 1/2", 2-3 Bar (29-44 psi) Mineral free water 1/2", 2-3 Bar (29-44 psi) 2"...

  • Page 14: Front View

    FRONT VIEW Description Description Door handle Printer Door cover RJ45 connector USB socket Right service door Display Right service door grip Keyboard Front leg Main switch Front service cover Printer cover Ventilation grill Right service door lock Page 12 of 85 Pages...

  • Page 15: Rear View

    REAR VIEW Description Fan grill Mineral free water inlet Rear service cover Circuit breaker Left service door Cut-off reset button Safety relief valve cover Electrical socket City (tap) water inlet Safety relief valve (under cover) Left service door grip Compressed air inlet (ELVC only) Left service door lock Air pressure gauge (ELVC only) Left service door grill...

  • Page 16: Overall Dimensions Drawing (Mm)

    OVERALL DIMENSIONS DRAWING (mm) Page 14 of 85 Pages...

  • Page 17: Water Quality

    3.11 Water Quality 3.11.1 Water for Steam Generation The distilled or mineral – free water supplied to the autoclave should have the physical characteristics and maximum acceptable level of contaminants indicated in the table below: Physical Characteristics and Maximum acceptable contaminants levels in steam for sterilizers (According to EN 13060:2004).

  • Page 18: Safety Features

    3.11.3 Reverse Osmosis A Reverse Osmosis (RO) system may be used to improve the quality of the water used to generate steam in the autoclave chamber. In RO, the water is forced through a semi-penetrable membrane, which filters out contaminants to a high degree of efficiency. In deionisation (DI) ions and charged particles are removed either by electric fields or by ion exchange in resin beds.

  • Page 19: Description Of Operation

    3.13 Description of Operation 3.13.1 Heat The ELV vertical autoclaves are equipped with immersion type, heating elements. After water has been introduced to the chamber and the unit has been activated, the heating elements begin to heat. The temperature and pressure in the chamber increase until appropriate levels are reached.

  • Page 20: Control Panel

    CONTROL PANEL CONTROL PANEL DRAWING Description Display Keypad Printer Page 18 of 85 Pages...

  • Page 21: Description And Functions Of The Front Panel Keyboard

    Description and Functions of the Front Panel Keyboard The front panel is composed of 3 sections: 1. Display screen. 2. Keypad. 3. Printer 4.1.1 Display screen The display is a LCD panel used to display the current status of the autoclave while using Operational Messages and Error Messages.
  • Page 22 4.1.2 Keypad The keypad consists of three keys as described below: UP key This key has the following functions:  In the menu directories: o This key enables the operator to browse through the cycles.  In the directories available: o When the cursor is blinking on a number, the UP ▲...

  • Page 23: Displayed Error Messages / Symbols

    4.1.3 Printer The printer is an optional device. It prints the detailed history of each cycle performed by the autoclave. The printing is on thermal paper with 24 characters per line and records the sterilization cycle information for subsequent consideration. Displayed Error Messages / Symbols The failures are divided into two categories.

  • Page 24: Displayed Operational Messages / Symbols

    Displayed operational messages / Symbols Message / Message / Symbol Symbol Required Action Description Name This symbol is displayed Close the door. when the door is open. This message is displayed Door is open when the door is opened: In Close the door to perform a (during stand standby - if START/STOP...

  • Page 25: Sterilization Programs

    STERILIZATION PROGRAMS STERILIZATION PROGRAMS The autoclave offers The autoclave offers six sterilization programs as follows: Sterilization Sterilization Programs Sterilization Programs Temp time Program Description Description (minutes) Unwrapped Unwrapped 134°C instruments instruments Wrapped instruments Wrapped instruments 134°C Unwrapped pouches Unwrapped pouches 134°C Wrapped pouches Wrapped pouches...

  • Page 26: Program 1: Unwrapped Instruments

    Program 1: Unwrapped instruments Program 1: Unwrapped instruments For unwrapped instruments and materials, when the manufacturer For unwrapped instruments and materials, when the manufacturer For unwrapped instruments and materials, when the manufacturer F). recommends autoclaving at temperatures of 134 recommends autoclaving at temperatures of 134C (273 Nominal parameters default settings Nominal parameters default settings ...

  • Page 27: Program 2: Wrapped Instruments

    Program 2: Wrapped instruments For wrapped instruments, when the manufacturer recommends autoclaving at temperatures of 134C (273F). Nominal parameters default settings  Sterilization temperature: 134C (273F)  Sterilization time : 7 minutes Operations sequence:  Insert water to chamber and heating by actuation of electrical heaters until reaching the high preset air pulse.

  • Page 28: Program 3: Unwrapped Pouches

    Program 3: Unwrapped pouches For Unwrapped pouches, when the manufacturer recommends autoclaving at temperatures of 134C (273F). Nominal parameters default settings  Sterilization temperature: 134C (273F)  Sterilization time : 7 minutes Operations sequence:  Insert water to chamber and heating by actuation of electrical heaters until reaching the high preset air pulse.

  • Page 29: Program 4: Wrapped Pouches

    Program 4: Wrapped pouches For Wrapped pouches, when the manufacturer recommends autoclaving at temperatures of 134C (273F). Nominal parameters default settings  Sterilization temperature: 134C (273F)  Sterilization time : 7 minutes Operations sequence:  Insert water to chamber and heating by actuation of electrical heaters until reaching the high preset air pulse.

  • Page 30: Program 5: Unwrapped Delicate Instruments

    Program 5: Unwrapped delicate instruments For unwrapped delicate instruments, when the manufacturer recommends autoclaving at temperatures of 121C (250F). Nominal parameters default settings  Sterilization temperature: 121C (250F)  Sterilization time : 20 minutes Operations sequence:  Insert water to chamber and heating by actuation of electrical heaters until reaching the high preset air pulse.

  • Page 31: Program 6: Wrapped Delicate Instruments

    Program 6: Wrapped delicate instruments For Wrapped delicate instruments, when the manufacturer recommends autoclaving at temperatures of 121C (250F). Nominal parameters default settings  Sterilization temperature: 121C (250F)  Sterilization time : 20 minutes Operations sequence:  Insert water to chamber and heating by actuation of electrical heaters until reaching the high preset air pulse.

  • Page 32: Program 7: Custom 1

    Program 7: Custom 1 Sterilization parameters are adjustable for items that cannot be sterilized in any of the preceding default programs. Validation of the sterility when using this program is the responsibility of the user. Nominal parameters default settings  Sterilization temperature: 134C (273F). ...

  • Page 33: Program 8: Custom 2

    Program 8: Custom 2 Sterilization parameters are adjustable for items that cannot be sterilized in any of the preceding default programs. Validation of the sterility when using this program is the responsibility of the user. Nominal parameters default settings  Sterilization temperature: 121C (250F). ...

  • Page 34: Program 9: Liquid A

    Program 9: Liquid A For liquids in unsealed bottles when the manufacturer recommends autoclaving at temperatures of 121º C (250F) with no drying. Nominal parameters default settings  Sterilization temperature: 121C (250F).  Sterilization time: 20 minutes. Operations Sequence  Insert water to chamber and heating by actuation of electrical heaters until reaching the high preset air pulse.

  • Page 35: Program 10: Liquid B

    5.10 Program 10: Liquid B For liquids in sealed bottles when the manufacturer recommends autoclaving at temperatures of 121º C (250F) with no drying. Nominal parameters default settings  Sterilization temperature: 121C (250F).  Sterilization time: 30 minutes. Operations Sequence ...

  • Page 36: Checking And Changing Parameters And Other Data

    CHECKING AND CHANGING PARAMETERS AND OTHER DATA The control system prevents changing programs if the door is closed. This protection is intended to avoid program changes if the autoclave is loaded. If the operator for example inserts the load into the chamber, closes the door and leaves the room and another operator/user tries to change the program, the operator/user will not be able to do this unless the door is opened and the load inside the chamber can be seen.

  • Page 37: Table Of Parameters

    Table of parameters The parameter default depends on the selected program. The following table is an example to Custom 1 program Parameters Description Default Unit Range Resolution Define the number of pulses in the first pulses group Pulse A Count 0-10 Define the additional time that the vacuum pump will continue Pulse A Stay...

  • Page 38: Entering The Main Menu

    Entering the main menu Enter the SELECT USER screen by pressing the UP and DOWN keys simultaneously. To exit the SELECT USER screen move the cursor to Exit by pressing UP or DOWN keys and then press START/STOP key. SELECT USER screen will be displayed. Move the cursor to Admin and press START/STOP key.
  • Page 39 In order to exit the ENTER CODE screen move the cursor to Exit by pressing START/STOP Key. when Exit is blinking press UP or DOWN keys. To browse through the directories, use the UP or DOWN keys. When the required directory is blinking, press the START/STOP key.

  • Page 40: Cycle Parameters (Custom 1)

    Cycle Parameters (Custom 1) Cycle Parameters (Custom 1) This directory This directory applicable only for custom 1 and custom 2 programs custom 1 and custom 2 programs Subdirectory Subdirectory Property Pulse A Count Pulse A Stay Time Pulse A Low Pressure Pulse A High Pressure Create Pulse Create Pulse...
  • Page 41 6.4.1 Create Pulse 6.4.1.1 Pulse A Count Typical display for Create Pulse subdirectory Choose and enter Pulse A Count SET PARAMETER screen will be displayed Set the required value, move to Set and press UP or DOWN keys to confirm the parameter value. In order to exit move the cursor to Exit and press UP or DOWN keys 6.4.1.2...
  • Page 42 6.4.2 Heat 6.4.2.1 Sterilization Temperature Typical display for Sterilization Temperature subdirectory Choose and enter Sterilization Temperature SET PARAMETER screen will be displayed Set the required value, move to Set and press UP or DOWN keys to confirm the parameter value. In order to exit move the cursor to Exit and press UP or DOWN keys 6.4.3...
  • Page 43 6.4.4 Cooling Cooling 6.4.4.1 Cool Mode Typical display for Cool Mode subdirectory subdirectory Choose and enter Cool Mode SET PARAMETER screen will be displayed screen will be displayed Set the required value, move to Set Set and press UP or DOWN keys to confirm the parameter value.
  • Page 44 6.4.6 6.4.6.1 Dry Heat On 1 Typical display for Dry Heat On 1 subdirectory Choose and enter Dry Heat On 1 SET PARAMETER screen will be displayed Set the required value, move to Set and press UP or DOWN keys to confirm the parameter value. In order to exit move the cursor to Exit and press UP or DOWN keys 6.4.6.2...
  • Page 45 6.4.7 6.4.7.1 End Temperature Typical display for End Temperature subdirectory Choose and enter End Temperature SET PARAMETER screen will be displayed Set the required value, move to Set and press UP or DOWN keys to confirm the parameter value. In order to exit move the cursor to Exit and press UP or DOWN keys 6.4.7.2 Multiple Cycles...

  • Page 46: System Parameters

    System Parameters This directory includes three subdirectories The following screen will be displayed when entering SYSTEM PARAMETERS directory: In order to enter to the sub directories move the cursor by pressing UP or DOWN keys to the required item and press START/STOP In order to exit this screen follows one of the next: ...
  • Page 47 6.5.2 Print Rate Sterilization This subdirectory enables to change the printing rate during sterilization stage 1. To increase or decrease the digits, press the UP or DOWN keys. 2. After changing the value move the cursor to Set by pressing the START/STOP.
  • Page 48 6.5.3 Screen Saver This subdirectory enables the operator to set the screen saver time. The default time value is 90 minutes. It is possible to increase or decrease the time value up to a maximum of 600 minutes or down to a minimum 0 minutes. When entering the Screen Saver screen, the time will be displayed.

  • Page 49: History

    History This directory includes two subdirectories This directory includes two subdirectories The following screen The following screen will be displayed when entering ntering HISTORY directory: 1. In order to enter to the sub directories move the cursor by pressing In order to enter to the sub directories move the cursor by pressing In order to enter to the sub directories move the cursor by pressing UP or or DOWN keys to the required item and press...
  • Page 50 6.6.2 Export history to USB This subdirectory enables to Export history to USB device. 1. Insert the USB device into the USB Socket 2. Move the cursor to Export history to USB 3. Press the START/STOP key. 4. The following screen will be displayed: 5.

  • Page 51: Maintenance

    Maintenance This directory includes four subdirectories The following screen will be displayed when entering MAINTENANCE directory: 1. In order to enter to the sub directories move the cursor by pressing UP or DOWN keys to the required item and press START/STOP 2.
  • Page 52 To move the cursor from one digit to another press the START/STOP key. After changing the time and the date move the cursor to Set. Confirm the new time and date by pressing UP or DOWN keys. After saving is completed, SET DATE AND TIME screen is still displayed, move the cursor to Exit and press UP or DOWN keys to return to MAINTENANCE screen.
  • Page 53 6.7.2 Export gain offset to USB This subdirectory enables to Export gain offset to USB device. 1. Insert the USB device into the USB Socket 2. Move the cursor to Export gain offset to USB 3. Press the START/STOP key 4.
  • Page 54 6.7.3 Print Test This subdirectory enables the operator to test the printer. When pressing START/STOP key on the Printer Test item the printer will print out the following print out: Cycle errors: None Canceled By User Door is open Analog Input Error I/O Card Failed Power Down Invalid Parameter Value...
  • Page 55 6.7.4 Print All Gain and Offset This subdirectory enables the operator to print all the gain and offset values. When pressing START/STOP key on the Print all gain and offset item the printer will print out the following: Drain Temperature G:000.0400;O:-004.0000 Chamber Temperature G:000.0400;O:-004.0000...

  • Page 56: Advanced Options

    Advanced Options Advanced Options This directory includes two subdirectories This directory includes two subdirectories The following screen will be displayed when entering The following screen will be displayed when entering The following screen will be displayed when entering ADVANCED OPTIONS directory: 1.
  • Page 57 Enabling the START CYCLE BY CLOCK To increase or decrease the time use the UP or DOWN keys. To move the cursor from one digit to another press the START/STOP key. After changing the time move the cursor to Enabled Confirm the START CYCLE BY CLOCK by pressing UP or DOWN keys.
  • Page 58 6.8.2 Export all settings to USB device This subdirectory enables the operator to export all settings to USB device. 1. Insert the USB device into the USB Socket 2. Move the cursor to Export all settings to USB device 3. Press the START/STOP key. 4.

  • Page 59: Version Information

    Version information Version information This directory includes two subdirectories This directory includes two subdirectories The following screen will be displayed when entering The following screen will be displayed when entering The following screen will be displayed when entering VERSION INFORMATION INFORMATION directory: 1.
  • Page 60 DLL size Software Major Minor Bugs Automatic update date change change repair builder  Major change Concept change eg: changing the operating system, Changed by the programmer accordance with the change sequence.  Minor change Feature change or function change, changed by the programmer in accordance with the change sequence.
  • Page 61 6.9.2 View factory default version information This subdirectory enables the operator to see the factory default version information. In order to see this subdirectory press START/STOP key on the View factory default version information item. The following screen will be displayed: Software DLL size Major...

  • Page 62: Screens

    SCREENS Screens following a complete successfully cycle – "Cycle Ended" 1. System Ready 2. Starting 3. Insert Water 4. Steam Flush 5. Pulse H 6. Pulse L 7. Keep Heat * 8. Heat 9. Sterilization 10. Exhaust 12. Ending 13. Cycle Ended Display can be activated only by an authorized person.

  • Page 63: Screens Following Aborted Cycles After Complete Sterilization Stage

    Screens following aborted cycles after complete sterilization stage The sterilization phase ended successfully – cycle ended and the reason of failure is displayed For example the next two scenarios: 7.2.1 Canceled by user after complete sterilization stage The cycle ended successfully, the reason for aborted cycle is displayed.

  • Page 64: Screens Following A Fail Cycle

    Screens following a fail cycle: In this case, the display becomes yellow, a warning sign and the reason of failure will be displayed. For example the next two scenarios: 7.3.1 Failure according to Pressure Time Error 7.3.2 Failure according to Cancellation by user before complete sterilization stage When "Cycle Failed"...

  • Page 65: Printer

    PRINTER Printer Output The printing is on thermal paper with 24 characters per line and contains the following information:  Date:  Time:  Ser. Num:  Model:  Version:  Cycle Num:  Cycle:  Dry Time:  Ster Temp: ...
  • Page 66 PRINTER OUTPUT DESCRIPTION Operator: To be filled in manually by operator ____________ Time: 12:14:47 Time sterilization cycle ended Cycle Ended 00:24:43 101.3 099.7 Cycle finished time E 00:23:43 107.0 107.4 The time, temperature and pressure during exhaust E 00:22:08 134.5 311.9 The time, temperature and pressure during exhaust CLK 2:...

  • Page 67: Printer Handling

    Printer Handling 8.2.1 Maintenance Wipe off the soiling on the printer surface with a dry soft cloth with a weak neutral detergent. After that, wipe the printer with a dry cloth. 8.2.2 Setting paper PLUS II Front view 1-Paper mouth 2-STATUS Led 3-OPEN key (for paper roll compartment opening)
  • Page 68 Open the printer's cover door (1) by pulling it up (see Fig. Fig. 2 Press the OPEN key to open the printer cover as shown (see Fig. 3/1). Handle the paper cutter carefully not to cut your hand. Place the paper roll making sure it unrolls in the proper direction as shown (see Fig.
  • Page 69 8.2.3 Treating the thermal papers:  Store the papers in a dry, cool and dark place.  Do not rub the papers with hard substance.  Keep the papers away from organic solvent. Cautions Never disassemble printer. Failure to follow this instruction may cause overheating or burning of the printer or the AC adapter.

  • Page 70: Preparation Before Sterilization

    PREPARATION BEFORE STERILIZATION The purpose of packaging and wrapping of items for sterilization is to provide an effective barrier against sources of potential contamination in order to maintain sterility and to permit aseptic removal of the contents of the pack. Packaging and wrapping materials should permit the removal of air from the pack, penetration of the sterilizing water vapor into the pack and removal of the sterilizing vapor.

  • Page 71: Liquids

    9. Once a week, use a biological spore test indicator in any load to make sure sterilization is performed. 10. Make sure that all instruments remain apart during the sterilization cycle. 11. Load the basket loosely to capacity. Liquids 1. Use only heat- proof glass containers, filled to 2/3 capacity. 2.

  • Page 72: Operation

    OPERATION 10.1 Turning on the autoclave Turning on the autoclave  To start the system, turn on To start the system, turn on the main switch (1), located (1), located under the printer cover printer cover. The door is equipped with an electrical cylinder. This electrical cylinder The door is equipped with an electrical cylinder.

  • Page 73: Loading

    Press the Key in order to open the door The following screen will be displayed: If the door has opened successfully, the following screen will be displayed: 10.3 Loading  Load the autoclave properly according to instructions in sec. 9. PREPARATION BEFORE STERILIZATION.

  • Page 74: Closing The Door

    10.4 Closing the door In order to close the door, follow the next steps: When the door is open, the screen below will be displayed: In order to close the door push the door to the wall of the autoclave chamber for at least 5 seconds as shown in the picture below: While closing the door the following screen will be displayed: Page 72 of 85 Pages...

  • Page 75: Starting Cycle

    When the door is properly closed, open door symbol is replaced by the message "System Ready" and the following screen will be displayed: 10.5 Starting cycle  Start the cycle by pressing the START/STOP key. Page 73 of 85 Pages...

  • Page 76: Unloading

    10.6 Unloading When cycle ended successfully (including pressing START/STOP key, or any failure, after completing the sterilization stage) message "Cycle Ended" (and the relevant failure message, if applicable) is displayed on the screen.  Verify that there is no pressure in the chamber, according to the reading on the display.

  • Page 77: Moving The Autoclave

    10.9 Moving the Autoclave 1. Disconnect the power supply cord. 2. Disconnect the water and drain hoses. 3. Disconnect the compressed air hoses (if applicable). 4. Drain the water from the chamber. To avoid injuries, Moving the autoclave should be done by using a forklift.

  • Page 78: Door Safety System

    The load is suspected to be wet. d. The load fell on the floor. Condensed drops can be detected on the load. To avoid injuries use heat resistant gloves while unloading the autoclave. DOOR SAFETY SYSTEM The door safety consists of two safety means: 11.1 Electric door locking system Door closing: the user pushes the door towards the chamber frame, a switch located on the frame indicates that the door is in locking position and...

  • Page 79: Service And Maintenance

    SERVICE AND MAINTENANCE SERVICE AND MAINTENANCE 12.1 Preventive Maintenance Preventive Maintenance The maintenance operations described in this chapter must be fulfilled The maintenance operations described in this chapter must be fulfilled The maintenance operations described in this chapter must be fulfilled periodically in order to keep the autoclave in good working condition an periodically in order to keep the autoclave in good working condition an periodically in order to keep the autoclave in good working condition and to...

  • Page 80: Checking The Safety Valve

    12.2 Checking the Safety Valve The safety valve is located on the rear side of the autoclave In order to prevent the safety valve from a blockage, operate it once a month. 12.2.1 PED-approved type safety valve Operate the sterilization cycle according to the manual. Allow a pressure of approximately 200 kPa (29 psi) to build up in the chamber.
  • Page 81 12.2.2 ASME-approved type safety valve Operate the sterilization cycle according to the manual. Allow a pressure of approximately 200 kPa (29-psi) to build up in the chamber. Operate the safety valve by pulling the ring of the safety valve using a tool, i.e. screwdriver, hook etc and lift the safety valve ring for 2 seconds.

  • Page 82: Troubleshooting

    TROUBLESHOOTING This troubleshooting chart enables the user to solve minor malfunctions, prior to contacting our service department. Only technical personnel having proper qualifications and holding technical documentation (including a technician manual) and adequate information are authorized to service the apparatus. Message / Symbol / Failure Description...
  • Page 83 Message / Symbol / Failure Description Corrective Action Problem This message is displayed if the Heat Time system cannot reach the required Verify that the autoclave is not Error temperature, in the chamber, within the overloaded. preset time. This message is displayed if the system cannot reach the required Heat Time Verify that the autoclave is not...
  • Page 84 Message / Symbol / Failure Description Corrective Action Corrective Action Problem Cycle Failed This This message and symbol are displayed if an error occurs before displayed if an error occurs before Perform a new cycle. Perform a new cycle. sterilization cycle is completed. sterilization cycle is completed.
  • Page 85 Message / Symbol / Failure Description Corrective Action Problem Chamber This message is displayed if the pressure not in pressure in the chamber is too high or Call for service. range too low from the normal range. This message is displayed if I/O I/O Card Failed card is faulty (both while cycle is Call for service.

  • Page 86: Baskets And Containers

    BASKETS AND CONTAINERS Container for waste products High Basket Low Basket Stainless steel container for waste Stainless steel wire baskets products, with vent holes Dia. x Height (mm) Capacity Dia. x Height (mm) Capacity 250 x 190 265 x 200 250 x 250 265 x 390 Page 84 of 85 Pages...

  • Page 87: Spare Parts List

    SPARE PARTS LIST Description Cat. No. Cap for ¼” strainer FIL175-0027 Strainer element FIL175-0046 Teflon gasket 4 mm GAS082-0008 ACCESSORIES Description Cat. No. Printer, PLUSII-S2B-0004 THE002-0052 Thermal paper for CUSTOM PLUSII printer THE002-0066 roll 57mm, d=50mm High BSK411-0002 Stainless steel wire basket BSK411-0001 High BSK411-0003...

This manual is also suitable for:

2840 elvc-d

Table of Contents
