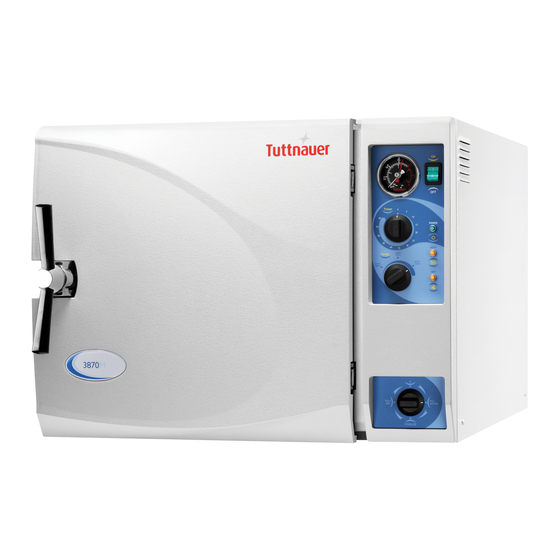

Tuttnauer 1730 Operation & Maintenance Manual

Table-top autoclaves
Hide thumbs Also See for 1730:
Table of Contents

Advertisement

Quick Links

OPERATION
&
MAINTENANCE
MANUAL
Table-Top Autoclaves
Models 1730, 2340, 2540, 3545, 3850, 3870M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1730 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tuttnauer 1730

Summary of Contents for Tuttnauer 1730

  • Page 1 OPERATION & MAINTENANCE MANUAL Table-Top Autoclaves Models 1730, 2340, 2540, 3545, 3850, 3870M...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS PARAGRAPH PAGE NO. GENERAL Incoming Inspection Warranty Warranty Statement TECHNICAL DATA Introduction Operating Condition Standards Storage conditions Construction Mains Waste Water Disposal Environment Emission Information Dimensions 2.10 Technical Specifications 2.11 Electrical Data 2.12 Symbol Description DESCRIPTION OF COMPONENTS Control Panel Other Components INSTALLATION, PLACING AND LEVELING INSTRUCTIONS...
  • Page 4 TABLE OF CONTENT (Cont.) SERVICE AND MAINTENANCE SECTION PARAGRAPH PAGE NO. TROUBLESHOOTING MAINTAINING AND REPLACING PARTS 11.1 Safety Tests after Repair 11.2 Dismantling the Outer Cover of the Autoclave. 11.3 Cleaning and Replacing Air Trap Jet 11.4 Replacing the Safety Valve 11.5 Replacing the Circuit Breaker 11.6...
  • Page 5 TABLE OF CONTENT (Cont.) DRAWINGS PAGE NO. Front View Closing Device Multi-Purpose Valve Assembly CMT240-0027 General View of Vessel, Door and Accessories Cover Autoclave Tray Handle CMT240-0001 Pouch Rack Tray Tray Holder Alternative Tray Holder Door Tightening Bolt – Assembly Drawing of Electrical System of Table Autoclave Model 1730M Drawing of Electrical System of Table Autoclave Models 2340/2540 M Drawing of Electric System of Table Autoclave Model 3545 M...

  • Page 6: General

    If any damage is found contact your dealer as soon as possible so that they can file a claim with the shipping carrier and also notify Tuttnauer. All Tuttnauer products are carefully inspected prior to shipment and all reasonable precautions are taken in preparing them for shipment to assure safe arrival at their destination.

  • Page 7: Technical Data

    TECHNICAL DATA Introduction The table-top autoclave is pressure controlled automatically. It is especially designed to meet the needs of effective and safe sterilization in all kinds of dental and medical clinics, first aid rooms, small laboratories etc. The autoclave models M are electrically heated sterilizers of different dimensions, using steam as the sterilizing agent.

  • Page 8: Construction

    A. The peak sound level generated by the sterilizer is « 78 / dBA with background noise of 60 dB. B. The total heat transmitted by the sterilizer is < 100 W/h for 1730/2340/2540 models and < 150 W/h for 3545/3850/3870 models. Page 6 of 63 Pages...

  • Page 9: Dimensions

    Dimensions 1730 2340 2540 3545 3850 3870 Model Inch Inch Inch Inch Inch Inch Dimensions A 17.4 20.0 20.0 23.2 26.0 26.0 Overall B 12.0 14.4 14.4 17.7 20.7 20.7 Dimensions C 17.9 21.5 21.5 21.9 27.5 34.5 Maximum D 29.5 35.8...

  • Page 10: Technical Specifications

    Page 8 of 63 Pages...

  • Page 11: Electrical Data

    2.11 Electrical Data Model 1730 2340 2540 3545 3850 3870 Specifications ― ― ― Total power model 120V 8.8A 11.7A 11.7A Total power model 230V 4.6A 6.0A 6.0A 10.4A 10.4A 13A Heaters W 1050 1400 1400 1800 2400 3000 Protection against electrical shock Class I (IEC 60601-1) 2.12...
  • Page 12 FRONT VIEW 1. Front legs 2. Reservoir water drain valve. 3. Door tightening bolt 4. Door Micro-switch 5. Autoclave cover 6. Water reservoir cover 7. Water reservoir 8. Safety valve 9. Air trap jet 10. Pressure gauge 11. Timer 12. Pressure switch (B10) knob 13.

  • Page 13: Description Of Components

    WATER RESERVOIR serves as a steam condenser. Blows off when pressure in the chamber reaches 40psi (2.7Bar) in models 1730, 2340, 2540 and SAFETY VALVE 37psi in models 3545, 3850, 3870. This type of safety valve is A.S.M.E. approved (located in water reservoir).

  • Page 14: Installation, Placing And Leveling Instructions

    (3). To check the water level fill a beaker (4) with the recommended quantity of water, pour the water into the chamber. The water must reach the indicator groove (1) in front of the chamber. 1730 2340/2540 3545 3850 3870 300 ml.

  • Page 15: Water Quantity For A Cycle

    Water quantity for a cycle The amount of water in the autoclave chamber necessary for each sterilization cycles as follows: 1730 2340/2540 3545 3850 3870 1000 ozs. ozs. ozs. ozs. ozs. It is imperative to have the correct amount of water for proper...

  • Page 16: Water Quality

    WATER QUALITY The distilled or mineral – free water supplied to the autoclave should have the physical characteristics and maximum acceptable level of contaminants indicated in the table below: Physical characteristics and acceptable contaminants levels in water, for sterlizers ≤ 15 mg/l Evaporate residue ≤...

  • Page 17: Preparation Before Sterilization

    PREPARATION BEFORE STERILIZATION The purpose of packaging and wrapping of items for sterilization is to provide an effective barrier against sources of potential contamination in order to maintain sterility and to permit aseptic removal of the contents of the pack. Packaging and wrapping materials should permit the removal of air from the pack, penetration of the sterilizing water vapor into the pack and removal of the sterilizing vapor.
  • Page 18 Wrapped instruments should be packed in material that promotes drying such as autoclave bag, autoclave paper, and muslin towels. It is highly recommended to utilize the Tuttnauer Pouch Rack. This rack allows the operator to place pouches on their side, thus increasing the capacity of the autoclave significantly and promoting better drying of the instruments.
  • Page 19 Packs Place packs upright on trays, side by side. Packs should not touch the chamber walls. Pack instrument sets in a manner that prevents damage to delicate items. Pack hollowware sets so that all openings face the same direction and so that the contents cannot move inside the pack. Load packs of folded operating room drapes with layers vertical, allowing air to be removed from the packs rapidly.
  • Page 20 Liquids Use only heat-proof glass, filled to 2/3 capacity. Ensure that the glass container is covered, but not sealed to prevent pressure build-up. Liquids Note: A table of suitability steam sterilization process for various goods and methods of packing is included with accompanying documents.

  • Page 21: Operation

    OPERATION To avoid possible damage, do not leave the autoclave un-attended while in operation 1. Ensure that the drain valve is in a CLOSED position. 2. Remove the water reservoir cover. 3. Pour distilled or mineral-free water into the reservoir through the opening on top of the autoclave until it reaches the base of the safety valve holder (the base must no immerse in the water.
  • Page 22 7. Set the multi-purpose valve knob to the FILL position. The water will now flow into the chamber. When the water reaches the mark at the bottom of the autoclave set the multi-purpose valve knob to the STE.(sterilize) position. Note: When used for the first time, the multi-purpose valve requires slight effort, but with use it will turn smoothly and easily.
  • Page 23 11. Set the STE. timer to the desired sterilization period according to the Sterilization Time Table (see table ahead). Recommended times for a, b, c are based on tests performed with a load according to Sterilization Load Test Table: Sterilization Load Test Table Loads Models 1730 2340 2540 3545 11.0 3850 13.6 3870 17.5...
  • Page 24 12. The POWER light is lit during the entire sterilization period, indicating connection to the power. The HEAT indicator signifies the operation of the pressure switch (B10), which keeps the temperature stable by connecting and disconnecting the heating elements. When the timer reaches 0, the sterilization process is complete and a buzzer will indicate that the cycle is complete.
  • Page 25 16.2 It is recommended to put the bottles on an un-perforated tray, which can be ordered at Tuttnauer, to prevent the clogging of the vessel opening in case the liquid starts boiling. 16.3 When the pressure decreases to “0” open the door and unload the autoclave.

  • Page 26: Maintenance Instructions

    7. Every 5 years test the locking device for excessive wear. 8. Perform safety tests according to local rules and regulations. Recommendation For OPTIMAL cleaning and de-scaling, use Tuttnauer’s powdered cleaner, ‘Chamber Brite ™’ which is user friendly and has excellent results. Page 24 of 63 Pages...

  • Page 27: Draining The Reservoir

    Draining the Reservoir 1. Turn the drain valve counter-clockwise (1turn) to drain the water. 2. Turn the drain valve clockwise to CLOSE position. 3. Fill the reservoir with distilled or mineral-free water up to the base of the safety valve holder. 4.

  • Page 28: Replacing The Door Gasket

    Replacing the Door Gasket Pull off the gasket from the door groove, thereby installing the new gasket referring to the drawings above 1, 2 and 3. Caution! This gasket is designed with a trapezoidal cross section. The gasket should be placed with the widest side towards the door. Page 26 of 63 Pages...

  • Page 29: Checking The Safety Valve

    Checking the Safety Valve (Located in the water reservoir.) In order to prevent the safety valve from blockage, every two months, under ordinary usage, it is necessary to allow the steam pressure to escape through it. Checking the safety valve shall be performed during any cycle, when the pressure in the chamber is approx.

  • Page 30: Cleaning Table Top Autoclaves With Chamber Brite

    CLEANING TABLE TOP AUTOCLAVES WITH CHAMBER BRITE ™ CHAMBER BRITE ™ is a cleaning and descaling agent designed specifically for the cleaning and removal of water deposits, oxides and other sediments that are found in steam sterilizers. The material is a combination of acidic salts and additional cleaning materials.
  • Page 31 MSDS available upon request. For models 1730, 2340, 2540 use one packet of CHAMBER BRITE ™. For models 3545, 3850, 3870 use two packets of CHAMBER BRITE ™.
  • Page 32 SERVICE AND MAINTENANCE SECTION Caution: These servicing instructions are for use by qualified personnel only. To avoid electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. Refer all servicing to qualified service personnel. Page 30 of 63 Pages...

  • Page 33: Troubleshooting

    TROUBLESHOOTING Symptom Possible Cause Correction 1. Multi-purpose valve is 1.1 No water in the 1.1 Fill the reservoir with in FILL position. reservoir. mineral-free water. 1.2 Multi-purpose valve of 1.2 Follow instructions in Water does not enter chamber is clogged. para.
  • Page 34 faulty. faulty thermostat. Symptom Possible Cause Correction 3.3 “HEAT” light is not on 3.3.3 Timer is faulty. 3.3.3 Fix or replace the and there is no heating. faulty timer. (cont.) 3.3.4 Microswitch No.3 is 3.3.4 Fix or replace the faulty. faulty microswitch.
  • Page 35 Symptom Possible Cause Correction 6.1 Amount of water in 6.1 Add water per para. 4. 6. Temperature safety chamber is insufficient. device is activated during the ste. cycles 6.2 The thermostat is not set 6.2 Set the thermostat to the due to overheating.

  • Page 36: Maintaining And Replacing Parts

    MAINTAINING AND REPLACING PARTS 11.1 Safety Tests after Repair ATTENTION! After every repair or dismantling the enclosure, the autoclave should pass two safety electrical test by the Service Engineer. The following shall be performed: 1. Enclosure Leakage Current Test. Every autoclave should pass this test as follows: 1.

  • Page 37: Dismantling The Outer Cover Of The Autoclave

    11.2 Dismantling the Outer Cover of the Autoclave. Caution: Allow the instrument to cool before removing the outer covers. Warning: Before starting disconnect the instrument from the power source and make sure there is no pressure in the autoclave. Then proceed as follows: 1.

  • Page 38: Cleaning And Replacing Air Trap Jet

    11.3 Cleaning and Replacing Air Trap Jet (Located in the water reservoir) The elimination of air pockets from the sterilization chamber during heating and sterilization phases is achieved by means of the air trap jet. This device consists of a small orifice that is obtrusive and opened by a small wire moving forth and back.

  • Page 39: Replacing The Circuit Breaker

    7. Turn on the autoclave and verify it operates correctly. 8. Move the circuit breaker’s lever to the “tripped” position and verify that the autoclave turns off. Make sure that the correct circuit breaker is installed as marked in the table below! 1730 2340/2540 3545 3850/3870 Description...

  • Page 40: Temperature Safety Thermostat

    11.6 Temperature Safety Thermostat (Located on the rear side of the heaters) The autoclave is supplied with a temperature thermostat that maintains the temperature during the dry stage, by connecting and disconnecting the electric power. This device automatically disconnects the heating elements in case of a rise in temperature.

  • Page 41: Cut-Off Thermostat

    11.8 Cut-Off Thermostat This thermostat cuts out power to the autoclave, in the event that all other safety systems do not function. For example: if the operator forgets to fill the chamber with water, and starts the sterilization cycle, the chamber will heat up and activate the cut-off thermostat.

  • Page 42: Replacing Multi-Purpose Valve

    11.10 Replacing Multi-Purpose Valve Caution: Before starting, make sure that the electric cord is disconnected from the power source and there is no pressure in the autoclave chamber. 1. Dismantle the autoclave cover (see para. 11.2 “Dismantling the Outer Covers of the Autoclave”). 2.

  • Page 43: Unclogging The Multi-Purpose Valve Or Chamber

    11.11 Unclogging the multi-Purpose Valve or Chamber VERY IMPORTANT! When sterilizing cotton wool or pads, it is essential to wrap them in paper or cotton bags in order to prevent the multi-purpose valve and the autoclave openings from becoming clogged with remnants of the material.

  • Page 44: Replacing The Door Bellows

    11.13 Replacing the Door Bellows (Located in the Door Bridge) Caution: Before starting, be sure that there is no pressure in the autoclave chamber. 1. Open the door. 2. Unscrew and remove the tightening screw (5). 3. Gently pull out the door safety device locking pin (13). 4.
  • Page 45 11.14 Replacing the pressure switch B10 Caution: Before starting, be sure that the electric cord is disconnected from the power source and that there is no pressure in the autoclave chamber. 1. Remove the autoclave cover (see para. 11.2 “Dismantling the Outer Covers of the Autoclave”).

  • Page 46: Replacement Of The Door Cover

    4.7. Repeat until leakage ceases. No. Description Model Cat. No. No. Description Model Cat. No. Washer 2340, 2540 BOL191-0032 All models ELE036-0009 Screw 1730, 3545, Spring BOL191-0091 All models SPR177-0012 3850, 3870 2340, 2540 BOL191-0033 1730 POL065-0001 3545 BOL191-0115 Door 2340, 2540...

  • Page 47: Replacing The Locking Device

    11.16 Replacing the Locking Device Caution: Before starting, verify that there is no pressure in the autoclave chamber. 1. Remove the security ring (9) using a special tool. 2. Remove pin (6). 3. Remove locking device. Take care not to lose the Teflon disk (10). 4.

  • Page 48: Replacing The Door Switch

    11.17 Replacing the Door Switch Caution! Before starting, disconnect the instrument from the power source and ensure that there is no pressure in the autoclave. Allow the autoclave to cool before removing outer covers. 1. Remove the autoclave cover (see para. 11.2 “Dismantling the Outer Covers of the Autoclave”).
  • Page 49 MULTI-PURPOSE VALVE ASSEMBLY CMT240-0027 Position of Micro-Switches and their Operation Situation M.Sw Stage Fill Ste. Exh. + Dry M.Sw.1 Tight Tight Loose Loose M.Sw.2 Loose Loose Loose Tight M.Sw.3 Loose Loose Loose Tight Notes: Microswitches MSw1 - STER. and MSw. 2- DRY are actuated by the multi- purpose valve.
  • Page 50 GENERAL VIEW OF VESSEL, DOOR AND ACCESSORIES Closing device Door Chamber Page 48 of 63 Pages...
  • Page 51 AUTOCLAVE COVER Page 49 of 63 Pages...
  • Page 52 TRAY HANDLE CMT240-0001 For 1730, 2340, 2450 models only POUCH RACK TYPE CAT No. 2340 ACS215-0008 2540 3870 ACS215-0010 TRAY MODEL SIZE CAT. No. 1730 TRY173-0001 2340 TRY240-0001 2540 TRY240-0001 TRY314-0001 3545 Small TRY314-0002 TRY385-0003 3850 Small TRY385-0004 TRY387-0001 3870...
  • Page 53 TRAY HOLDER MODEL TRAY HOLDER CAT. NO. 1730 TRH173-0001 2340 TRH234-0001 2540 TRH254-0001 3545 TRH314-0000 3850 TRH385-0001 3870 TRH387-0001 ALTERNATIVE TRAY HOLDER These tray holders are designed for use in models 2340 & 2540 only. Model Tray holder cat. No.
  • Page 54 DOOR TIGHTENING BOLT – ASSEMBLY Cat. No. Description 1730, 2340, 2540 3545, 3850, 3870 Bushing LOK240-0003 LOK387-0003 Door tightening bolt assembly LOK240-0036 LOK387-0007 Locking screw housing LOK240-0005 LOK387-0006 Locking base LOK240-0012 LOK387-0012 Locking housing axis LOK240-0014 LOK387-0014 Door locking device pin...

  • Page 55: List Of Acssesories

    Description 1730 2340 2540 3545 3850 3870 Handle, Tray, TTA CMT240-0001 CMT240-0001 CMT240-0001 — — — 1730, 2340, 2540 Pouch Rack — ACS215-0008 ACS215-0008 — — ACS215-0010 TRY314-0001 TRY385-0003 TRY387-0001 Tray TRY173-0001 TRY240-0001 TRY240-0001 Small TRY314-0002 TRY385-0004 TRY387-0003 Holder, Tray...

  • Page 56: List Of Spare Parts

    LIST OF SPARE PARTS Cat. No. Description 1730 2340 2540 3545 3850 3870 Thermostat, Cut-Off, THE005-0014 THE005-0014 THE005-0014 THE005-0014 THE005-0014 THE005-0014 TY95-H, Campini Thermostat, Safety, 180C, THE005-0003 THE005-0003 THE005-0003 THE005-0003 THE005-0003 THE005-0003 TY95/AC, Campini Heating Element, 120V HEA009-0001 HEA009-0002 HEA009-0003 HEA009-0014 —...
  • Page 57 Cat. No. Description 1730 2340 2540 3545 3850 3870 Disc, Silicone, Door GAS080-0006 GAS080-0006 GAS080-0006 GAS080-0006 GAS080-0006 GAS080-0006 Bellows Gasket, Silicone, Water GAS080-0007 GAS080-0007 GAS080-0007 GAS080-0007 GAS080-0007 GAS080-0007 Reservoir Cable, Plug+Socket 110V WIR040-0004 WIR040-0004 WIR040-0004 WIR040-0004 WIR040-0004 WIR040-0004 15A, USA...
  • Page 58 Cat. No. Description 1730 2340 2540 3545 3850 3870 SST bolt M4 x 12 BOL191-0140 BOL191-0140 BOL191-0140 BOL191-0140 BOL191-0140 BOL191-0140 SST bolt 4M x 8 BOL191-0158 BOL191-0158 BOL191-0158 BOL191-0158 BOL191-0158 BOL191-0158 Bushing for selector CMT240-0019 CMT240-0019 CMT240-0019 CMT240-0019 CMT240-0019 CMT240-0019...

  • Page 59: Conversion Table

    CONVERSION TABLE ºF ºC 18.0 22.2 29.6 37.0 44.4 Page 57 of 63 Pages...
  • Page 60 DRAWING OF ELECTRICAL SYSTEM OF TABLE AUTOCLAVE MODEL 1730M Page 58 of 63 Pages...
  • Page 61 DRAWING OF ELECTRICAL SYSTEM OF TABLE AUTOCLAVE MODELS 2340/2540 M Page 59 of 63 Pages...
  • Page 62 DRAWING OF ELECTRIC SYSTEM OF TABLE AUTOCLAVE MODEL 3545 M Page 60 of 63 Pages...
  • Page 63 DRAWING OF ELECTRIC SYSTEM OF TABLE AUTOCLAVE MODEL 3850 M Page 61 of 63 Pages...
  • Page 64 DRAWING OF ELECTRICAL SYSTEM OF TABLE AUTOCLAVE MODEL 3870 M Page 62 of 63 Pages...
  • Page 65 PIPING DIAGRAM TABLE TOP AUTOCLAVE Page 63 of 63 Pages...
