ARISM
User's Manual
This manual contains important information on product safety, set-up, operation, and maintenance. For optimum performance and safety,
read this manual carefully before using this product. Please keep this manual in a safe place for future reference.
IMPORTANT SAFETY INFORMATION
• Before connecting the compressor to a power outlet, check if the voltage indicated on the compressor corresponds to the mains
voltage (100-120 V or 220-240 V). Using the compressor with the wrong mains voltage could damage the unit, and could cause an
electrical fire.
• When using electrical appliances, basic precautions should always be followed to reduce the risk of damage, fire, electric shock, personal injury
or property damage.
• Do not overload wall outlets, extension cords, or power strips beyond their capacity. This could cause a circuit breaker trip, insufficient voltage
supply, or an electrical fire.
• To avoid electric shock, never operate the compressor outdoors when raining, or in wet conditions.
• Always place the compressor on a flat and stable surface.
• Always remain in attendance when the compressor is in operation.
• Never place objects against, or on top of, the compressor. Operate the compressor in an open area without any obstructions that would restrict
the flow of fresh air into the compressor.
• Exceeding the pressure rating of pneumatic tools, such as airbrushes, spray guns, or air operated devices, could damage the tool and could also
cause serious personal injury. Never exceed the maximum allowable pressure rating recommended by your pneumatic tool's manufacturer.
• Do not insert any foreign objects into the openings of the compressor.
• Do not disassemble the compressor or attempt to modify the compressor in any way.

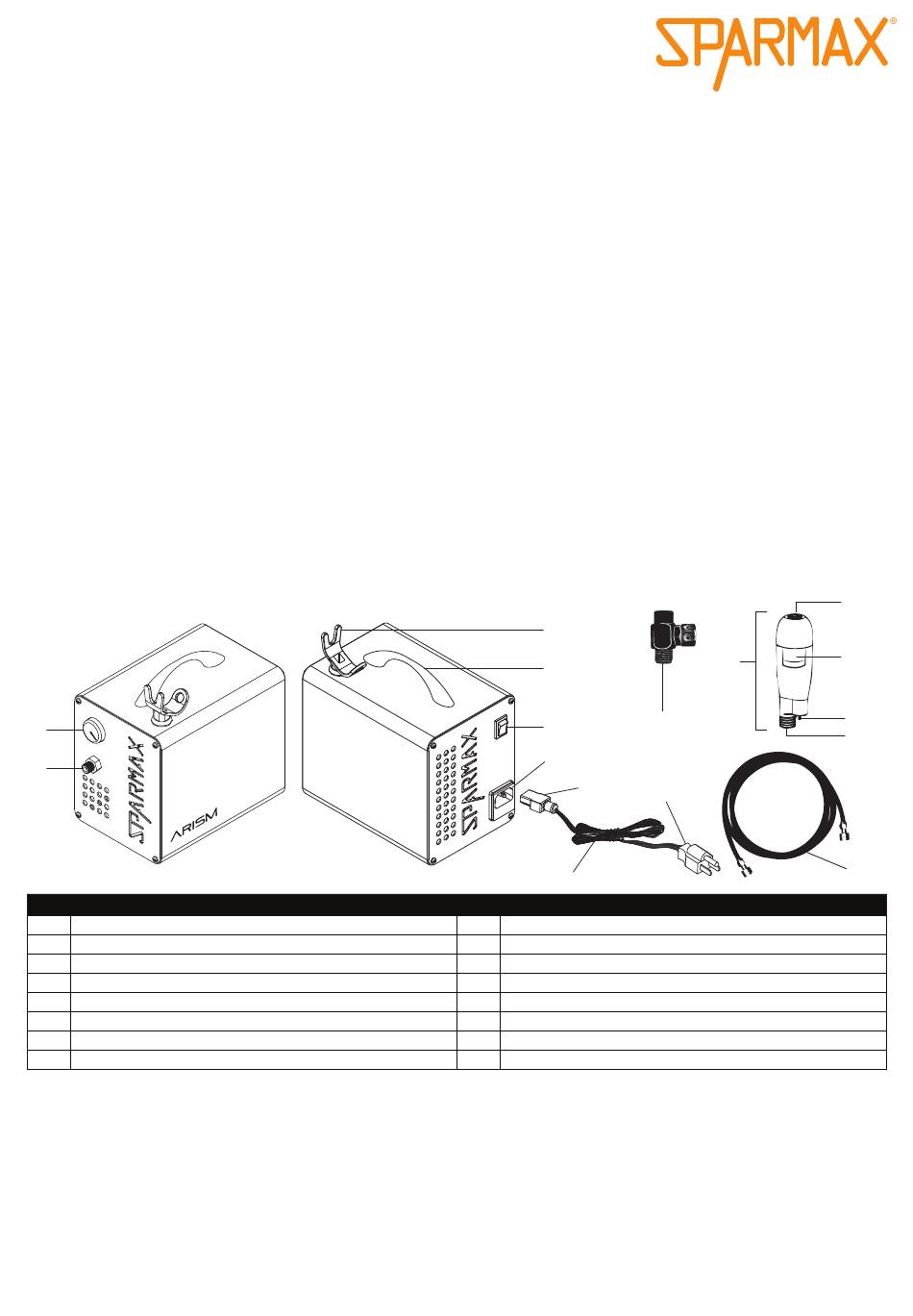

Product Overview
Front view
1
2
Parts List
1 Pressure Gauge
2 Air Outlet
3 Detachable Airbrush Holder
4 Handle
5 On/Off Switch
AC power inlet
6
Connector of power cable
7
8 Power cable
Specifications
Model: AC-66hx
14 -15
Air flow: l/min (0.49 - 0.53 cfm) at open flow *
Auto on/ off: 1.7/ 2.4 bar (25/ 35 psi)
Dimensions: L19.2 x W12 x H18.5 cm (7.6" x 4.7" x 7.3")
Weight: 2.6 kg (5.7 lbs)
* Air flow range indicated shows average values over different voltages and frequencies. There will be tolerance for each unit and current fluctuation also affects
actual airflow performance.
Copyright © 2013 Ding Hwa Co., Ltd. All rights reserved.
SP_MAN_ARISM_A4_20130614.1
Rear view
9 Plug *
10 Airbrush Bleed Valve
11 Silver Bullet™ Airbrush Moisture Trap **
12
13
14
15
16 Braided Air Hose
* illustration of plug is for reference only. Plug adaptor may vary depending on your region.
Included accessories
3
4
5 10
6
7
9 *
8
Silver Bullet™ Air Outlet
Silver Bullet™ Filter (full-sized, 5 micron filter)
Silver Bullet™ Drain Valve
Silver Bullet™ Air Inlet
** Silver Bullet™ Patent number: US D552806
www.SPARMAXair.com
12
13
11
14
15
16
