SET COMMUNICATION:

By Pressing the "Set Communication" button from the main window for SW67C52
(Fig. 2) the window "Set Communication" appears (Fig. 3).
The means for the fields for the "Modus Slave" are:
In the field "Serial" the serial port to use is defined (RS232 or RS485);
In the field "Baudrate" the baudrate for the serial line is defined;
In the field "Parity" the parity of the serial line is defined;
In the field "Stop Bits" the number of Stop Bits of the serial line is defined;
In the field "ID Device" the ID of Modbus side of the converter is defined;
If the field "Read with Input Register / Status
possible to read the Input bytes of EnOcean side with Input Registers (Function
04) and write the Output bytes of EnOcean side with Holding Registers
(Function 06/16). The Output bytes are readable with Function 03. Otherwise,
only Holding Registers will be used and the Output bytes of EnOcean side
cannot be read back.
The means of the fields for "Ethernet" are:
In the fields "IP Address" the IP address for Ethernet side of the converter is
defined;
In the fields "SubNet
converter is defined;
In the fields "Gateway" the default gateway of the net is defined. This feature
can be enabled or disabled pressing the Check Box field. This feature is used
for going out of the net;
ADFweb.com S.r.l.
Function" is checked, it is
Mask" the SubNet Mask for Ethernet side of the
User Manual EnOcean / Modbus Slave
Document code: MN67C52_ENG Revision 1.000

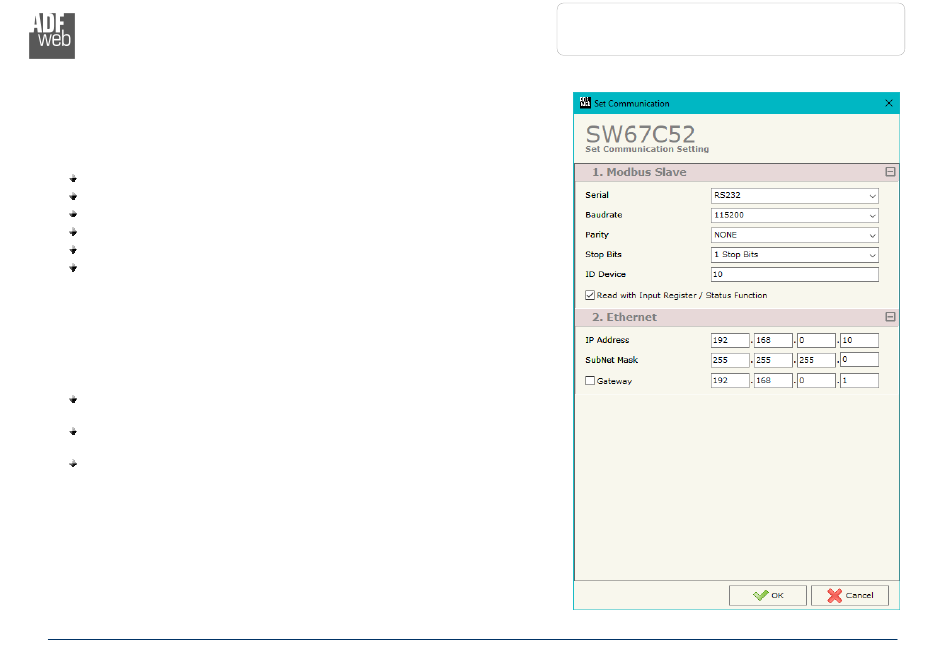

Figure 3: "Set Communication" window
