Worksman INB Owner's Manual And Parts List page 3

Wheels, Tires, Tubes, and Wheel Parts
Add "KVPR" to the wheel part number that you need to upgrade to Kevlar Tires and Puncture Resistant tubes!
Part # Description
4131Q 26" Front Wheel w/ Air Tire
4131QA 26" Front Wheel w/o Tire
4131QS 26" Front Wheel w/ Solid Tire
4131QAAL 26" Alloy Front Wheel w/o Tire
4136 26" Rear Coaster Brake Wheel w/ Air Tire
4136A 26" Rear Coaster Brake Wheel w/o Tire
4136S 26" Rear Coaster Brake Wheel w/ Solid Tire
4136ASS 26" Alloy Rear Coaster Brake Wheel
77R 26" Rear Drum Brake Wheel w/ Air Tire
77RA 26" Rear Drum Brake Wheel w/o Tire
77RS 26" Rear Drum Brake Wheel w/ Solid Tire
77RCAR 26" Alloy Rear Drum Brake Wheel
SS721 Coaster Brake Repair Kit (internal parts)
300 Coaster Brake Hub (36 hole x .120")
4922-372 26" x 2.35" Fat Frank™ Tire - Cream
4922 20" x 2.125" Tire (Low Gravity Front)
4922KV 20" x 2.125" Kevlar Tire
4922WSW 20" x 2.125" White Wall Tire
4938A 20" Solid Tire
4923 20" x 2.125" Tube
6023 20" x 2.125" Puncture Resistant Tube
1014E Spokes / Nipples for 20" Wheel (Min. 36)
1015 20" x 2.125" WTC Clincher Rim (Chrome)
1017A 20" Rimstrip
1018 Valve Cap
SS12N-1 Shimano Nexus Shifter Cable & Shifter
Safety and Comfort Accessories
Part # Description
3979 Ding Dong Chime Bell
3973 Mega-Horn (battery operated)
4963 Rear View Mirror (Chrome, rectangular)
3978 Safety Flag on Pole
101710 Flashing Strobe Light (clear lens)
7217-41197 Pedals with Velcro Foot Straps (pair)
1006 Air Foot Pump
202 Mini-Frame Pump w/ Attachment Strap
1265TW Crank Cone Wrench
1001 Pedal Wrench
6001A Patch Kit (5)
7217GS12 "Glowspeck" Flashing Pedals – Flash without batteries when you pedal!
A I W
SSEMBLY NSTRUCTIONS FOR
Please read this manual carefully prior to performing the simple finishing assembly and prior to riding. We recommend that a qualified bicycle mechanic
assemble this cycle. Carefully remove the bicycle from the carton. You will notice the bicycle is mostly pre-assembled at the factory.
TO ATTACH FRONT FORK/WHEEL ASSEMBLY TO THE FRAME: (If you have a front drum brake, proceed to Headset instructions.)
1) Attach front fender to fork.
2) Slide one axle washer over axle bolt. Insert axle through basket leg (optional), fender brace, and retention clip.
3) Insert axle through front wheel hub and out other side. Install retention clip, fender brace, basket leg (if
ordered), washer, and axle nut.

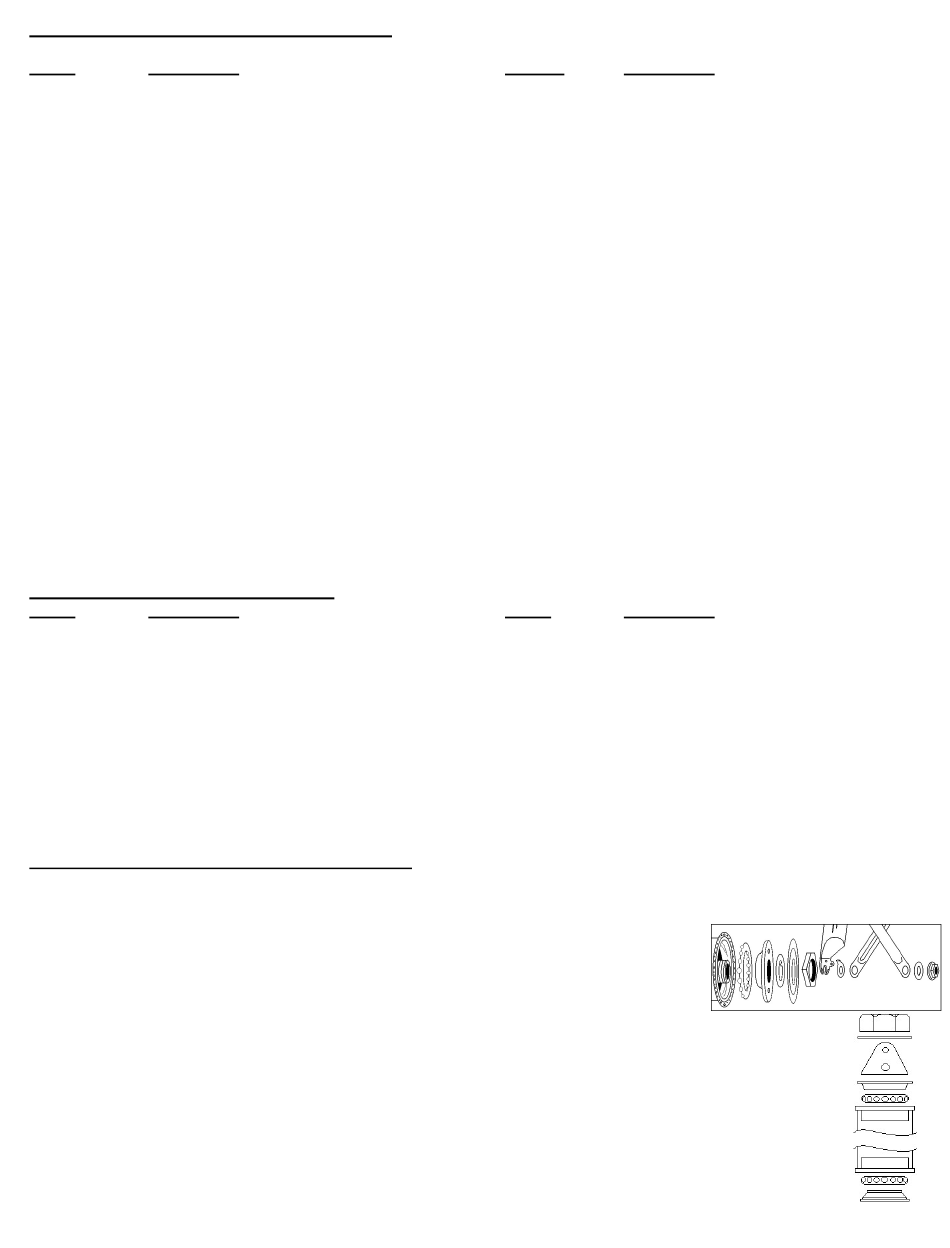

Headset:
1) Grease headset cups (48) with Rustolene 200 or equal. Bearings (49) are pre-greased at the factory, but it is
wise to add lubrication before assembly.
2) Place one headset bearing (49) onto fork steerer tube with balls facing up. Slide steerer tube into frame.
3) Place the other bearing on top of fork tube with balls facing down towards the cup (#48), which is already pressed onto the frame.
4) Install top-adjusting cone (52) onto treaded fork steering tube. Hand-tighten, making sure bearings do not bind. Turn back ¼ turn.
5) Install fork key washer (53) and reflector bracket on top of the adjusting cone with tip of washer in slot on steering tube.
6) Install head lock nut (54) and securely tighten. Make sure that the fork rotates freely without being loose. Excess play or resistance
must be adjusted. Failure to adjust properly can lead to improper steering response.
7) Install handlebar stem (55A) into the fork steering tube with the handlebar clamp facing forward. The stem must be inserted far enough
to reach the minimum insertion line. Tighten the stem bolt slightly at this point. Loosen the handlebar clamp nut and slide the handlebar
through the clamp, centering the knurled center section of the handlebar into the clamp.
8) Position the handlebar to the desired angle and tighten clamp securely. Recommended torque is 300 IN. LBS. Adjust the handlebar
rotation so that it is straight with the front wheel. Tighten stem bolt securely. Recommended torque 240 IN. LBS. Be sure not to over
tighten, as damage to the parts may occur causing steering failure.
9) If a drum brake was ordered, attach brake lever to handlebar Make sure brake cable is not tangled in any way.
(Alloy wheels include stainless steel spokes and zinc-plated brass nipples.)
H -D B
ORKSMAN EAVY UTY ICYCLES
Part #
77
77A
77S
77CAR
7208Q
7208QA
7208SQ
SMX262CB
SMX262CBAL 26" Alloy 2 Spd Kickback Rear CB Wheel
SMX263CB
SMX263CBAL 26" Alloy 3 Spd Rear Coaster Brake Wheel
SMX267CB
SMX267CBAL 26" Alloy 7 Spd Rear Coaster Brk Wheel
401
4922-376
4922A
4922AKV
4922AWSW
4939
4923A
6023A
1014A
1016
1016A
1017
SS01
Part #
303
201
5030B
P19
101714
3975
1000
2000
95021
7917A
3976
: (F L -G B ,
OR OW RAVITY IKES SEE
Description
26" Front Drum Brake Wheel w/ Air Tire
26" Front Drum Brake Wheel w/o Tire
26" Front Drum Brake Wheel w/ Solid Tire
26" Alloy Front Drum Brake Wheel
20" Front Low Gravity Wheel w/ Air Tire
20" Front Low Gravity Wheel w/o Tire
20" Front Low Gravity Wheel w/ Solid Tire
26" 2 Spd Kickback Rear Coaster Brk Whl
26" 3 Spd Rear Coaster Brake Wheel
26" 7 Speed Rear Coaster Brake Wheel
3 Speed Coaster Brake Hub (36 x .120")
26" x 2.35" Fat Frank™ Tire - Brown
26" x 2.125" Tire
26" x 2.125" Kevlar Tire
26" x 2.125" White Wall Tire
26" Solid Tire
26" x 2.125" Tube
26" x 2.125" Puncture Resistant Tube
Spokes / Nipples for 26" Wheels (Min. 36)
26" x 2.125" WTC Clincher Rim (Chrome)
26" x 2.125" WTC Clincher Rim (Alloy)
26" Rimstrip
Axle Nut (Rear Shimano Coaster Brake)
Description
Squeeze Bulb Horn (chrome w/ rubber)
Cable and Lock set (with keyed padlock)
Reflector Kit w/ Brackets
Bicycle Helmet
Flashing Strobe Light (red lens)
Generator Light Set
Spoke Wrench
Chain Rivet Remover Tool
Water Bottle w/ Cage, Attachment Strap
Backrest w/ Mounting Hardware
Battery Operated Headlight
ADDITIONAL
ASSEMBLY SHEET
.)
