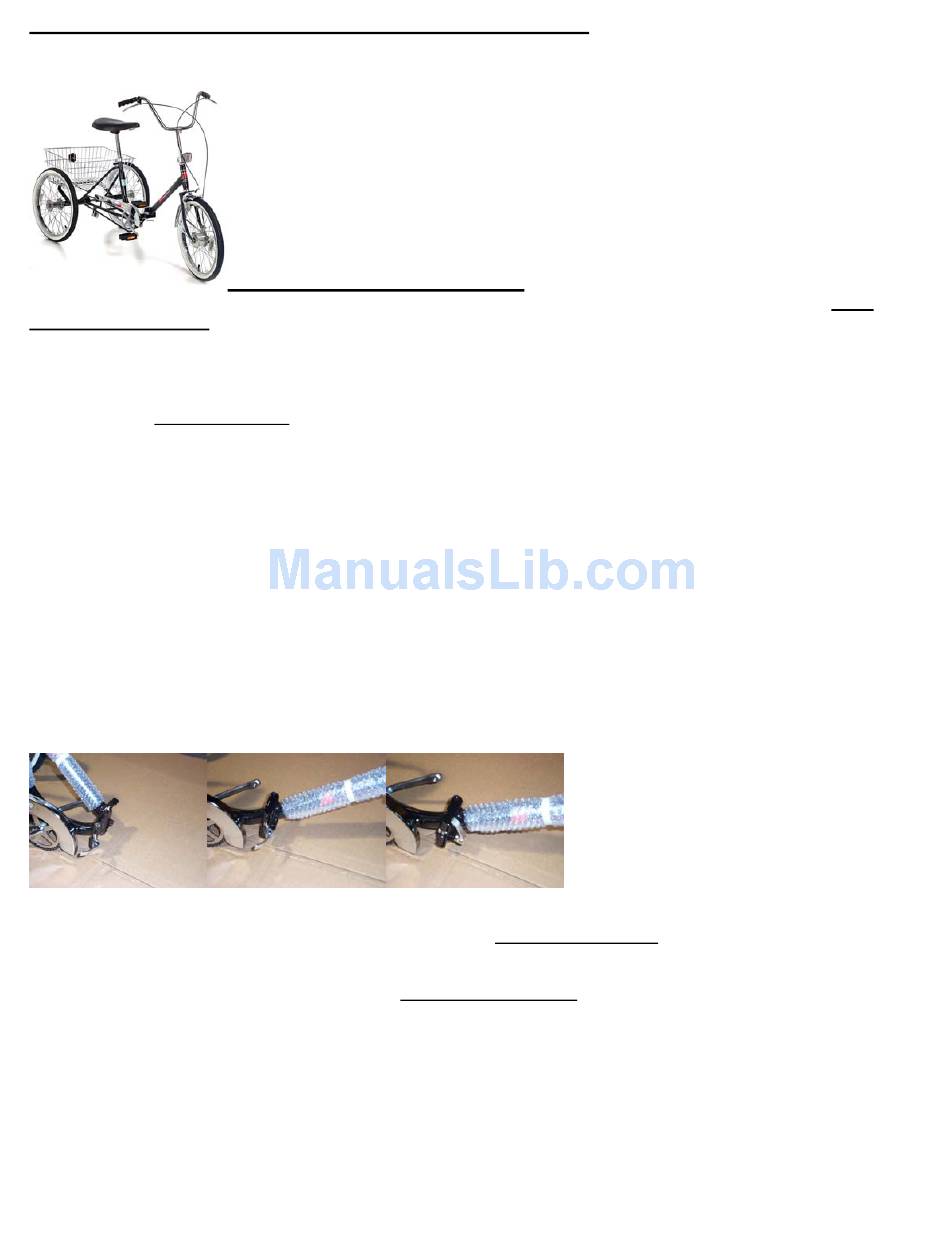

Assembly Instructions, Parts Listing and Manual
Worksman Port-o-trike- The Compact Deluxe Adult Folding Tricycle
Proudly made in the USA
Congratulations on your purchase of the Port-o-trike Compact Adult Folding Tricycle, one of the most popular Adult
Recreational Tricycles of all time. This is a consumer-recreational tricycle with a recommended weight limit of 210
pounds. This tricycle is very practical whether you choose to fold it or not. The low step through, compact design is ideal
for those riders who simply want to ride leisurely, safely and comfortably. The Port-o-Trike has been carefully
manufactured in the USA with simple finishing assembly required. It is always wise to have a qualified bicycle mechanic
perform repairs and assembly of any cycle. Please read these instructions thoroughly prior to assembly and riding.
Visit our website
www.worksman.com

Tools Required for assembly

Slotted Screwdriver
Pliers
Adjustable Wrench
A)

INITIAL ASSEMBLY

1) Remove Protective bubble wrap
2) Open Tricycle frame (unfold the all new "Safety-Loc" hinge in center of frame until frame is straight).
3) Rotate the hinge arm and bolt into slot on hinge and press the arm into the lock position (note: the new Safety-Loc
System has a pin that drops into the hole on the hinge to insure that the hinge cannot fold accidentally.)
B)
Front Wheel & Fork Assembly (See Headset Illustration)
1) Grease top and bottom cups (#48B) in fork head tube on tricycle frame
2) Slide one bearing (49B) on to the fork/wheel assembly with balls facing downward onto the cone which is already pre-
mounted on the fork.
3) Slide the Fork/wheel assembly up into the frame head tube of the tricycle and center the bearings so it seats properly
4) Slide the remaining bearing retainer(49B) with balls facing downward over the fork steer tube and into the fork cup
(48B) which is pre-mounted in the frame
5) Grease top adjusting cone (#52B) and thread it onto the threaded fork steer tube clockwise, Hand Tighten securely
without binding. Make certain that the balls of the bearings are aligned properly before final tightening so the fork can
rotate smoothly.
6) Install Reflector bracket with notch lined up with notch on fork steer tube
7) Place Quick Release Clamp (4911B) on fork assembly with the arm in open position and hand tighten the nut
8) Place key washer (53B) over clamp with notch lined up with notch on fork steer tube
9) Screw top lock nut (54B) clockwise onto fork assembly and tighten securely using an adjustable wrench.
W-108
For Models PT, PT2F and PTCB & PT3CB
The Worksman Port-o-trike
to see our complete line of Worksman recreational and industrial cycles.

Carton Contents

* Port-o-trike Tricycle
* Seat
* Cargo Basket
* Front Fork/Wheel Assembly
* Handlebar
* Parts kits which includes:
* Handlebar Grips
* Handlebar Stem
* Reflector Kit
* Seat post & Seat post Clamp
Parts list PT3CB-2003
