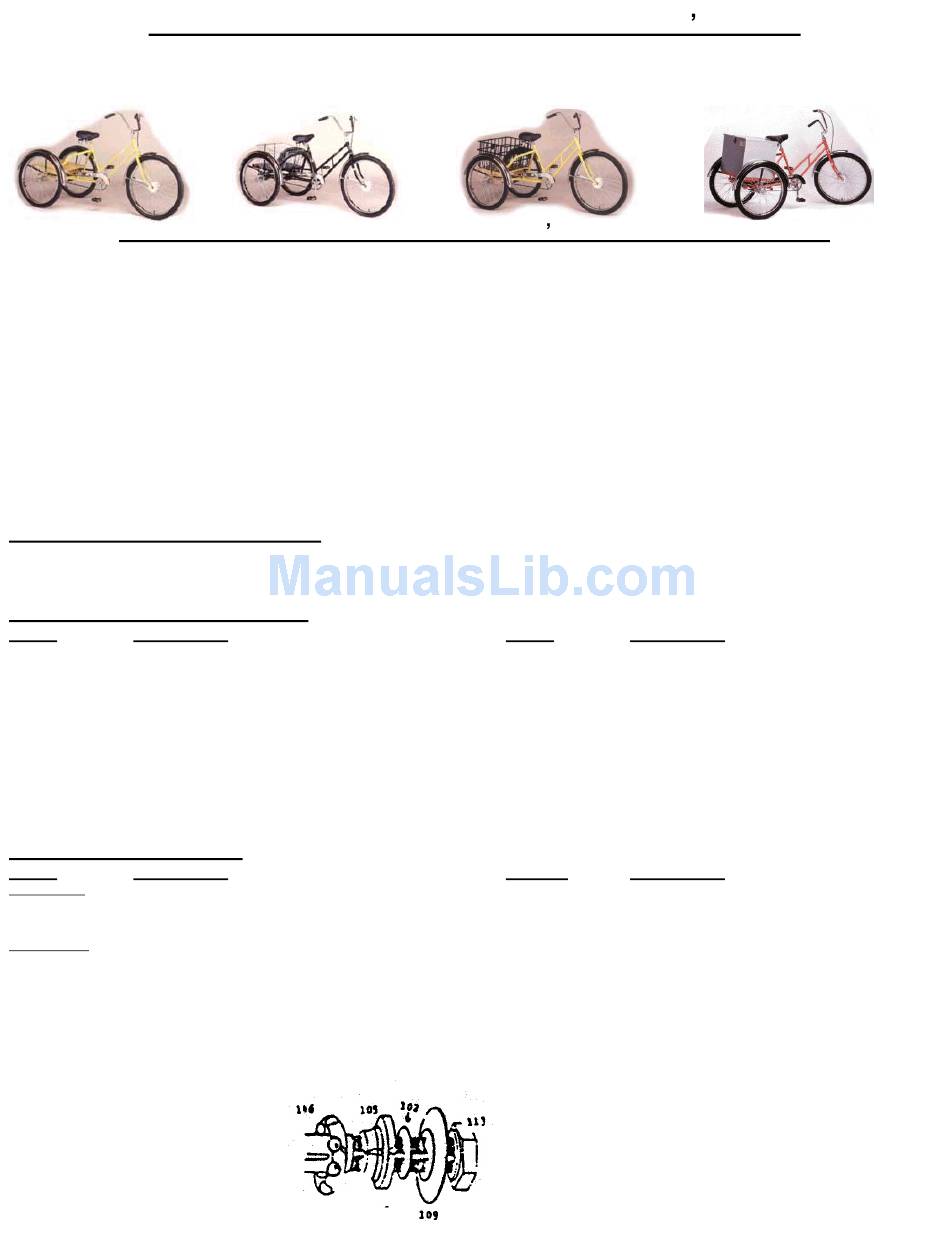

Worksman ADP-CB Owner's Manual

Worksman Adaptable Industrial Tricycle Owner s Manual
Worksman Trading Corporation
www.worksman.com
Models ADP, ADB, ADC, ADBB, -CB, -3CB, -NDB
Worksman Adaptable Tricycles - The World s Original Industrial Tricycle
Congratulations! You have purchased a true industrial tricycle
The Adaptable is considered the father of the Worksman Business Cycle System, which is undoubtedly the
finest line of industrial cycles. These durable tricycles are used around the world by leading companies and
organizations to move personnel and supplies efficiently and safely in an environmentally friendly manner.
Before assembling and riding, make certain to read this manual and any other literature provided thoroughly.
Always follow the rules of safe riding. Always keep your Adaptable tricycle in tip-top shape by replacing worn
parts as needed with genuine Worksman Cycles parts. (Do not use generic bicycle parts.) With simple
maintenance, your Worksman Adaptable Tricycle will perform reliably day after day, year after year.
·
This manual is intended as an assembly and maintenance guideline for a professional and qualified
bicycle mechanic. Failure to have this cycle professionally assembled could result in injury or death.
Worksman Adaptable Parts List
Note: As of 2013, Worksman uses ED (electrodeposition) black electro-coated components as standard equipment,
including black handlebars, crank parts, and stems to help prevent rust and increase parts lifespan.
Frame, Fork and Related Parts
Part # Description
72ACB Adaptable Frame (Specify color)
60HD Fork w/ Drum Brake Tab - Black
60HD-ORG Fork w/ Drum Brake Tab - Safety Orange
50A Headset Complete (48,49,52,53,54)
49 Headset Bearings (pair)
52 Top Adjusting Cone (threaded)
54 Fork Top Lock nut
55F Handlebar - Junior High Rise (Chrome)
55A Stem (Chrome)
Front Drum Brake Parts
Part # Description
OLD STYLE
L918 Bearing Cup (pair)
F817 Wheel Bearings - Loose 11 balls
NEW STYLE
L500-F Hub - NEW STYLE w/ pressed bearing
L517 Pressed Bearing - NEW STYLE
F719 Drum Brake Cable w/ F769 and F770
F769 Anchor Bolt Assembly for F719 Cable
L752R Brake Lever (Right) w/ Parking Lock
L752L Brake Lever (Left) w/ Parking Lock
94-15 100
(For all freewheel, coaster brake and three-speed coaster brake Adaptable Tricycles.)
(Forks include Bottom Cone # 51.)
(Old style hubs had loose bearings. New style hub has pressed bearings.)
Free Side Rear Wheel - Exploded View
th
Street Ozone Park, NY 11416
the Worksman Adaptable Industrial Tricycle.
Part #
60HD-YEL
60HD-SP
48
51
53
55B
55F-BLK
55A-BLK
Part #
L709
L725-1
L509
L725-1
F816
F770
160B
L815
(718) 322-2000
Parts list ADPT0714
Description
Fork w/ Drum Brake Tab - Safety Yellow
Fork w/ Drum Brake Tab - Special color
Headset Cups (pair)
Bottom Cone (Pressed on fork)
Key Washer
Handgrips (pair)
Handlebar - Junior High Rise (Black)
Stem (Black)
Description
Front Axle Set for Drum Brake
Drum Brake Plate Kit (Old or new style)
Axle - NEW STYLE for pressed bearing
Drum Brake Plate Kit (Old or new style)
Axle Washer
Adjusting Barrel for F719 Cable
Fork Retention Clip (each)
Outside Axle Nut (each)
