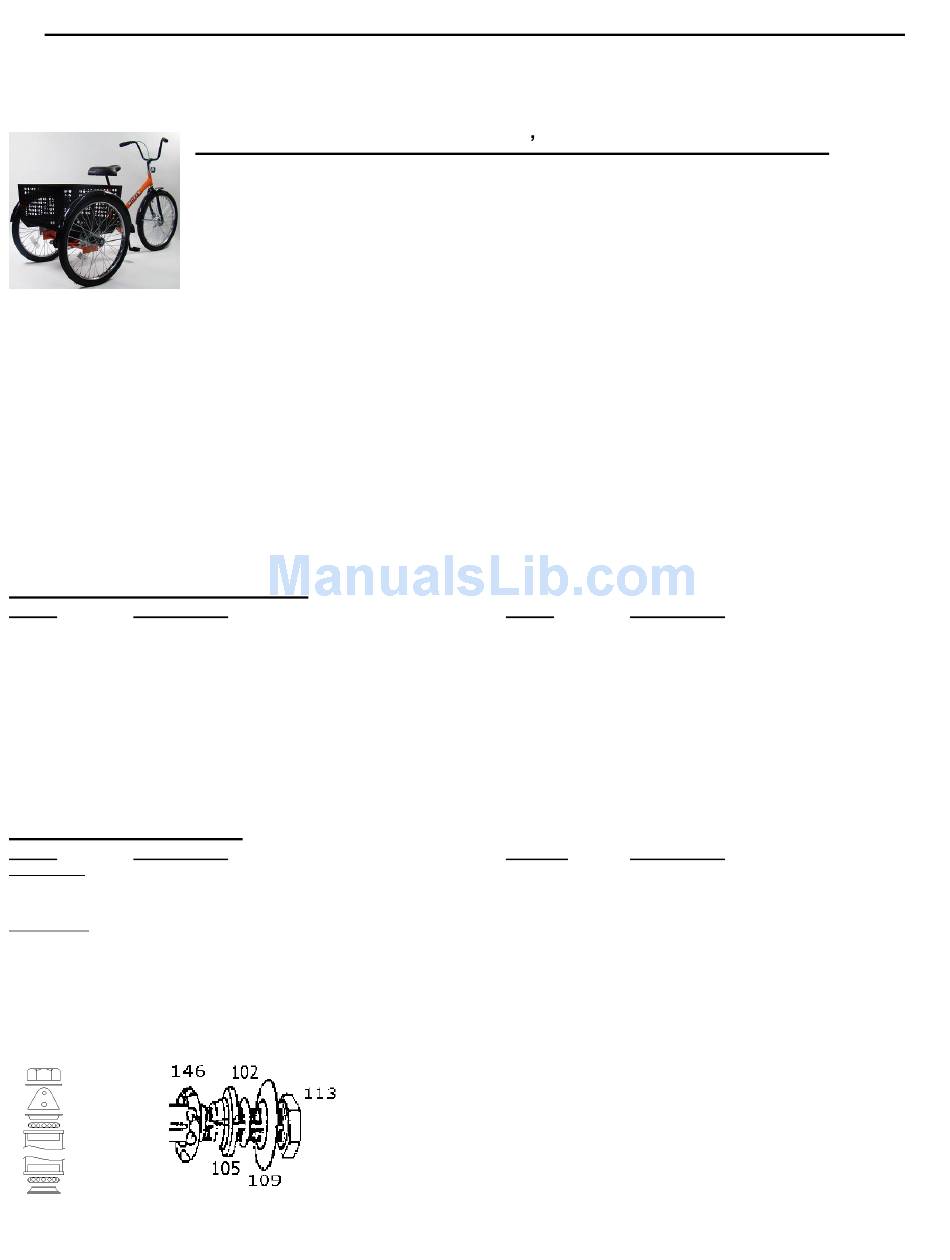

Worksman Mover Industrial Tricycles Assembly Instructions and Parts List
Worksman Trading Corp - 94-15 100
www.worksman.com
Models M2626, M2626-NDB, M2626-CB, M2626-3CB
M2626 = Drum Brake Only
Before assembly and riding, make certain to read this manual and any other literature provided
thoroughly. Always follow the rules of safe riding. Always keep your Mover Tricycle in tip-top shape
by replacing worn parts as needed with genuine Worksman Cycles parts. (Do not use generic bicycle
parts.) With simple maintenance, your Worksman Mover Tricycle will perform reliably day after day,
year after year.
·
This manual is intended as an assembly and maintenance guideline for a professional and qualified
bicycle mechanic. Failure to have this cycle professionally assembled could result in injury or death.
Worksman Mover Parts List
Note: As of 2013, Worksman uses ED (electrodeposition) black electro-coated components as standard equipment,
including black handlebars, crank parts, and stems to help prevent rust and increase parts lifespan.
Frame, Fork and Related Parts
Part #
Description
MF2626A
Mover Frame (Specify color)
60HD
Fork w/ Drum Brake Tab - Black
60HD-ORG
Fork w/ Drum Brake Tab - Safety Orange
48
Head Set Cups (pair)
50A
Headset Complete (48,49,52,53,54)
52
Top Adjusting Cone (threaded)
54
Fork Top Lock nut
55A
Stem for Handlebar
3927M
Rear Platform
Front Drum Brake Parts
Part #
Description
OLD STYLE
L900
Drum Brake Hub
F817
Wheel Bearings - Loose 11 balls
NEW STYLE
L500-F
Hub - NEW STYLE w/ pressed bearing
L517
Pressed Bearing - NEW STYLE
F719
Drum Brake Cable w/ F769 and F770
F769
Anchor Bolt Assembly for F719 Cable
L752R
Brake Lever (Right) w/ Parking Lock
L752L
Brake Lever (Left) w/ Parking Lock
50A Headset
Free (Left) Side Rear Wheel
th
Street - Ozone Park, NY 11416 - (888) 3-WHEELER or (718) 322-2000
M2626-NDB = Coaster Brake Only
The Worksman Mover - The World s Toughest Industrial Tricycle
Congratulations on the purchase of your Worksman Mover Industrial Tricycle.
The Mover is considered the flagship of the Worksman Business Cycle System,
which is undoubtedly the finest line of industrial cycles. These durable tricycles
are used around the world by leading companies to move personnel and supplies
efficiently and safely in an environmentally friendly manner.
(For the entire M2626 Series)
(Fork includes Bottom Cone # 51.)
(Old style hubs have loose bearings. New style hub has pressed bearings.)
Exploded View
M2626-CB = Drum & Coaster Brake
Part #
60HD-YEL
60HD-SP
49
51
53
55F
55F-BLK
55B
Part #
L709
L725-1
L509
L725-1
L816
F770
160B
L815
Parts list M2626-0416
M2626-3CB = Drum & 3 Speed Coaster
Description
Fork w/ Drum Brake Tab - Safety Yellow
Fork w/ Drum Brake Tab - Special color
Headset Bearings (pair)
Bottom Cone (presses on Fork)
Key Washer
Handlebar - Junior High Rise (Chrome)
Handlebar - Junior High Rise (Black)
Handgrips (pair)
Description
Front Axle Set for Drum Brake
Drum Brake Plate Kit (Internal parts kit)
Axle - NEW STYLE for pressed bearing
Drum Brake Plate Kit (NEW STYLE)
Axle Washer
Adjusting Barrel for F719 Cable
Fork Retention Clip (each)
Outside Axle Nut (each)
