Worksman EXEC-FW Owner's Manual

Worksman Trading Corporation
www.worksmancycles.com
Models EXEC-FW, EXEC-2F, EXEC-CB, EXEC-3CB
Worksman Executive Trike - The Light-Duty, Heavy-Duty Tricycle!
Congratulations! You have purchased an American-made Worksman Executive Tricycle.
The Executive is the highest quality light-duty, industrial strength tricycle available.
Before assembling and riding, make certain to read this manual and any other literature
provided thoroughly. Always follow the rules of safe riding. Always keep your Executive
Tricycle in tip-top shape by replacing worn parts as needed with genuine Worksman
Cycles parts. (Do not use generic bicycle parts.) With simple maintenance, your Executive will perform
reliably day after day, year after year. Your Executive Tricycle has been hand-made in the USA by our
American craftspeople. Our reputation rides along with you, so your ultimate satisfaction is our goal.
Worksman Executive Parts List

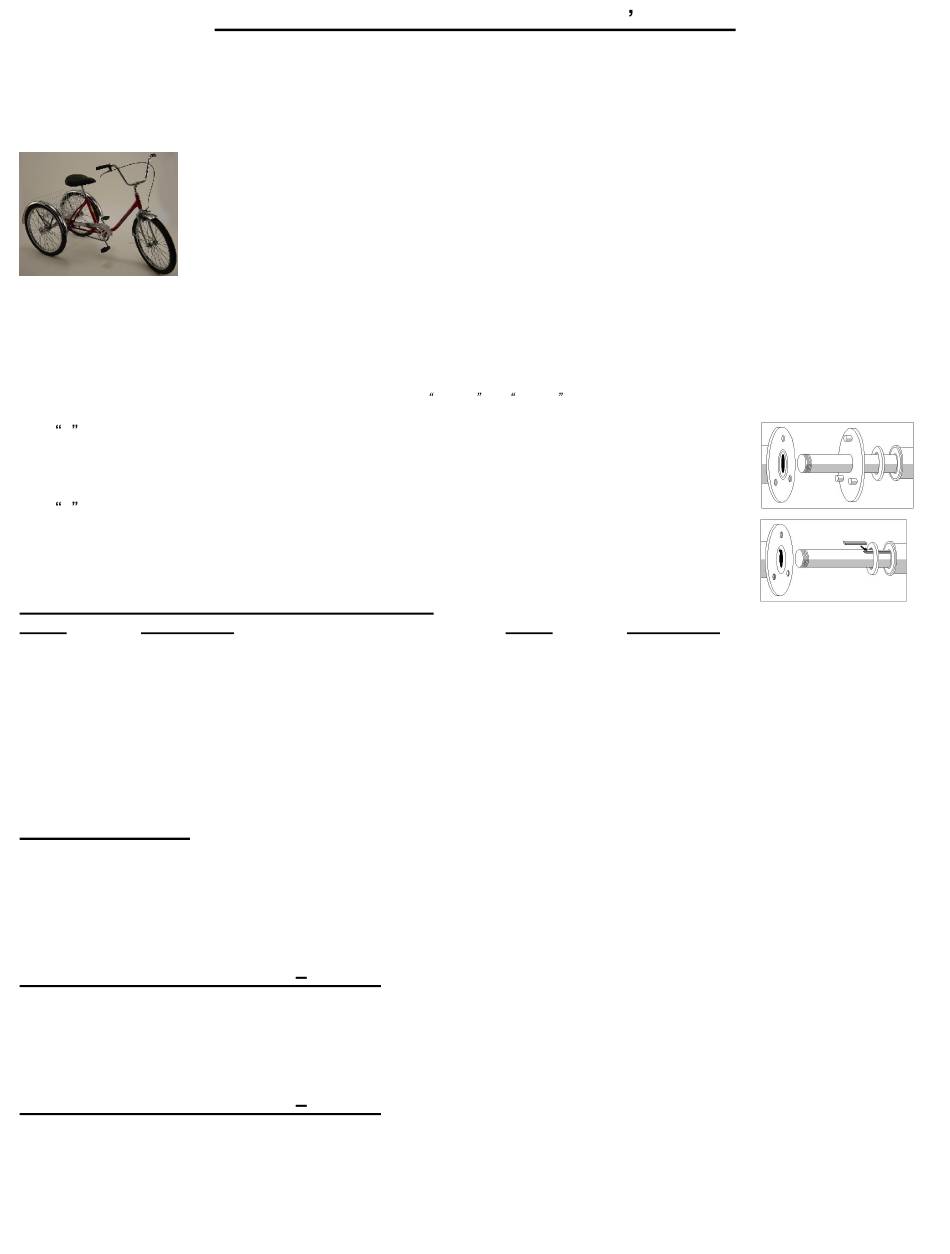

This manual references two different versions of the Executive trike, Style A and Style B . A change was made to the way the rear axle turns the drive
wheel (right side). If you ordering replacement parts or are performing a repair, please be sure to reference the correct style.
Style A (Before August/2006)
IN THE PAST, THE DRIVE W HEEL W AS INST ALLED BY MATING THREE PINS ON THE DRIVE PLATE OF THE
AXLE W ITH THREE HOLES IN THE HUB. IT IS IMPORTANT TO HAVE THE AXLE W ASHER (SHOW N) BETW EEN
THE OUTER BEARING AND THE DRIVE PLATE.
Style B (After August, 2006)
THE CURRENT DESIGN USES A KEYWAY (62C) THAT SLIPS BETWEEN THE KEYW AY GROOVE IN THE AXLE
AND THE SLOT IN THE HUB. BE SURE TO CAREFULLY ALIGN THESE SLOTS BEFORE ATTEMPTING TO PRESS
THE WHEEL ALL THE W AY ON. THE FIT OF THESE PARTS IS INTENTIONALLY TIGHT, SO YOU MAY HAVE TO
TAP ON THE OUTSIDE OF THE W HEEL W ITH A RUBBER MALLET TO DRIVE IT ALL THE W AY IN.
Frame, Fork, Handlebars and Related Parts
Part # Description
3950X Executive Main Frame (specify color)
3950XF* Executive Rear Frame
3950XAK* Executive Rear Frame
48 Headset Cups (pair)
50A Headset Complete (48,49,52,53,54)
52 Top Adjusting Cone (threaded)
54 Fork Top Lock nut
55A Stem
5031 Front Reflector Bracket
Front Brake Parts
(The Executive comes standard with caliper brakes. Drum brakes are optional.)
G250 Drum Brake Hub
G815 Drum Brake Outside Axle Nut (each)
G269 Anchor Bolt Assembly for G219 Cable
2002A Caliper Brake w/ Pads
2002P Caliper Brake Pads (Pads only - pair)
L752R Brake Lever (Right) w/ Parking Lock
Rear Axle and Related Parts
59M Rear Axle Elastic Locknut
177 Rear Axle (29 ½ x ¾ w/ drive plate)
4129A Freewheel Sprocket (18 tooth)
62B Set screw for 69C and 61
93 Axle Spacer Washer
Rear Axle and Related Parts
57 Rear Axle Elastic Locknut
174HD Wheel Bearings (each)
69A Fixed Drive Sprocket
61 Bushing for 4129A (freewheel models)
62C Keyway for Rear Sprocket and Drive Wheel
Worksman Executive Tricycle Owner s Manual
94-15 100
(For all freewheel, coaster brake and three-speed coaster brake Executive Tricycles.)
(Freewheel-Style A)
(Freewheel-Style B)
Style A
Style B
th
Street Ozone Park, NY 11416
Part #
154
3950XCB*
3950KBX*
49
51
53
55F
55B
* Rear frames include rear axle and axle gear.
G219
F818
G270
G219A
F822
L752L
173
69A
61
62C
173
176K
4129A
62B
93
(718) 322-2000
Manual # EXEC11
Description
Fork (Silver)
Executive Rear Frame
(Coaster Style A)
Executive Rear Frame
(Coaster Style B)
Headset Bearings (pair)
Bottom Cone (Presses on fork)
Key Washer
Handlebar - Junior High Rise (9 )
Handgrips (pair)
Drum Brake Cable w/ G269 and G270
Arm Band Assembly for Brake Arm
Adjusting Barrel for G219 Cable
Caliper Brake Cable
Zip Tie
Brake Lever (Left) w/ Parking Lock
Wheel / Axle Bearings (each)
Fixed Drive Sprocket
Bushing for 4129A (freewheel models)
Keyway for Rear Sprocket
Axle Bearings (each)
Rear Axle (29 ½ x ¾ w/ key slot)
Freewheel Sprocket (18 tooth)
Set screw for 69C and 61
Axle Spacer Washer
