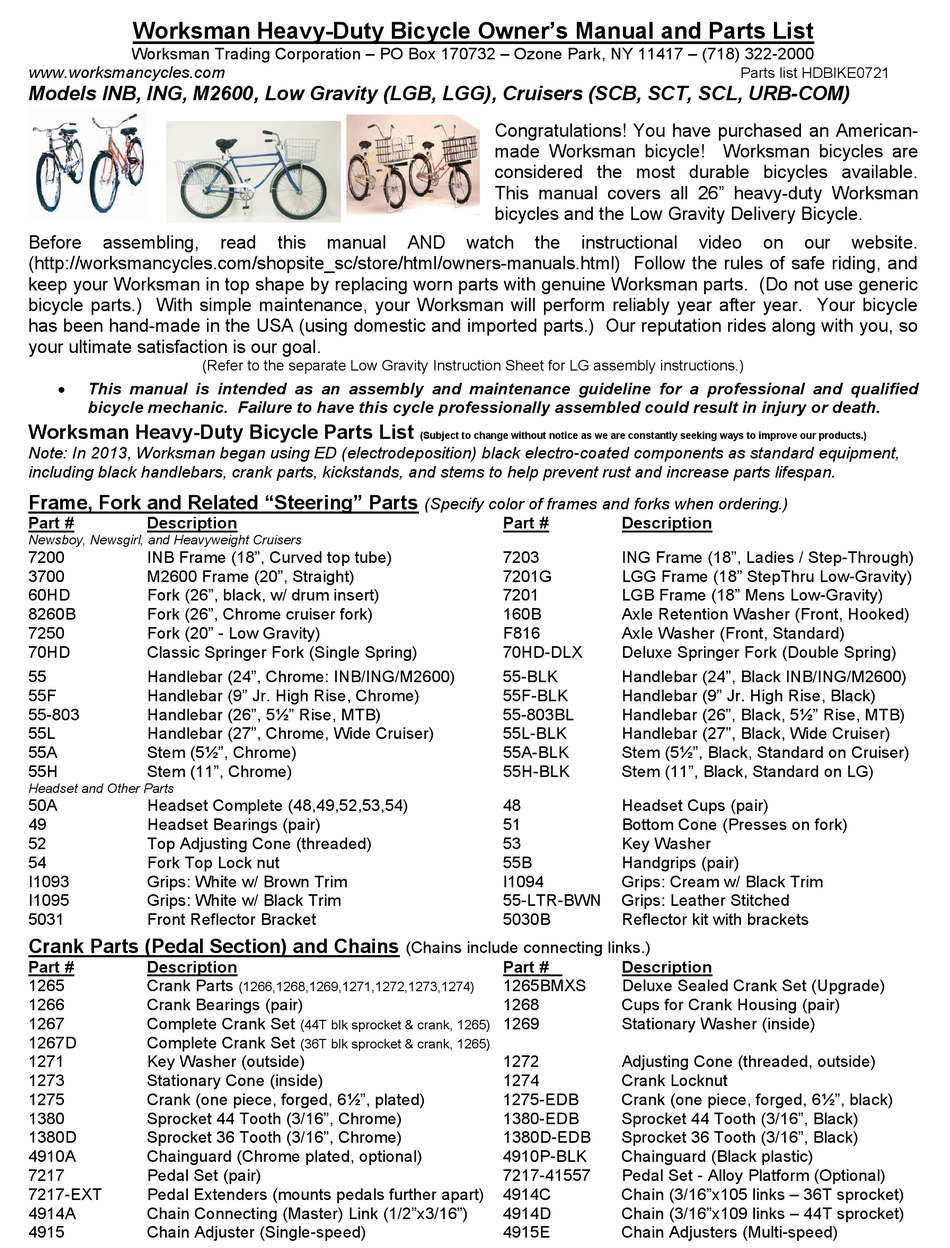

Worksman INB Owner's Manual And Parts List

Worksman Heavy-Duty Bicycle Owner's Manual and Parts List
Worksman Trading Corporation – PO Box 170732 – Ozone Park, NY 11417 – (718) 322-2000
www.worksmancycles.com
Models INB, ING, M2600, Low Gravity (LGB, LGG), Cruisers (SCB, SCT, SCL, URB-COM)
Before assembling,
(http://worksmancycles.com/shopsite_sc/store/html/owners-manuals.html) Follow the rules of safe riding, and
keep your Worksman in top shape by replacing worn parts with genuine Worksman parts. (Do not use generic
bicycle parts.) With simple maintenance, your Worksman will perform reliably year after year. Your bicycle
has been hand-made in the USA (using domestic and imported parts.) Our reputation rides along with you, so
your ultimate satisfaction is our goal.
(Refer to the separate Low Gravity Instruction Sheet for LG assembly instructions.)

This manual is intended as an assembly and maintenance guideline for a professional and qualified
bicycle mechanic. Failure to have this cycle professionally assembled could result in injury or death.
Worksman Heavy-Duty Bicycle Parts List
Note: In 2013, Worksman began using ED (electrodeposition) black electro-coated components as standard equipment,
including black handlebars, crank parts, kickstands, and stems to help prevent rust and increase parts lifespan.
Frame, Fork and Related "Steering" Parts
Part # Description
Newsboy, Newsgirl, and Heavyweight Cruisers
7200 INB Frame (18", Curved top tube)
3700 M2600 Frame (20", Straight)
60HD Fork (26", black, w/ drum insert)
8260B Fork (26", Chrome cruiser fork)
7250 Fork (20" - Low Gravity)
70HD Classic Springer Fork (Single Spring)
55 Handlebar (24", Chrome: INB/ING/M2600)
55F Handlebar (9" Jr. High Rise, Chrome)
55-803 Handlebar (26", 5½" Rise, MTB)
55L Handlebar (27", Chrome, Wide Cruiser)
55A Stem (5½", Chrome)
55H Stem (11", Chrome)
Headset and Other Parts
50A Headset Complete (48,49,52,53,54)
49 Headset Bearings (pair)
52 Top Adjusting Cone (threaded)
54 Fork Top Lock nut
I1093 Grips: White w/ Brown Trim
I1095 Grips: White w/ Black Trim
5031 Front Reflector Bracket
Crank Parts (Pedal Section) and Chains
Part # Description
1265 Crank Parts
1266 Crank Bearings (pair)
1267 Complete Crank Set
1267D Complete Crank Set
1271 Key Washer (outside)
1273 Stationary Cone (inside)
1275 Crank (one piece, forged, 6½", plated)
1380 Sprocket 44 Tooth (3/16", Chrome)
1380D Sprocket 36 Tooth (3/16", Chrome)
4910A Chainguard (Chrome plated, optional)
7217 Pedal Set (pair)
7217-EXT Pedal Extenders (mounts pedals further apart)
4914A Chain Connecting (Master) Link (1/2"x3/16")
4915 Chain Adjuster (Single-speed)
read this manual
(1266,1268,1269,1271,1272,1273,1274)
(44T blk sprocket & crank, 1265)
(36T blk sprocket & crank, 1265)
Congratulations! You have purchased an American-
made Worksman bicycle! Worksman bicycles are
considered the most durable bicycles available.
This manual covers all 26" heavy-duty Worksman
bicycles and the Low Gravity Delivery Bicycle.
AND watch the instructional
(Subject to change without notice as we are constantly seeking ways to improve our products.)
(Specify color of frames and forks when ordering.)
Part #
7203
7201G
7201
160B
F816
70HD-DLX
55-BLK
55F-BLK
55-803BL
55L-BLK
55A-BLK
55H-BLK
48
51
53
55B
I1094
55-LTR-BWN
5030B
(Chains include connecting links.)
Part #
1265BMXS
1268
1269
1272
1274
1275-EDB
1380-EDB
1380D-EDB
4910P-BLK
7217-41557
4914C
4914D
4915E
Parts list HDBIKE0721
video on
Description
ING Frame (18", Ladies / Step-Through)
LGG Frame (18" StepThru Low-Gravity)
LGB Frame (18" Mens Low-Gravity)
Axle Retention Washer (Front, Hooked)
Axle Washer (Front, Standard)
Deluxe Springer Fork (Double Spring)
Handlebar (24", Black INB/ING/M2600)
Handlebar (9" Jr. High Rise, Black)
Handlebar (26", Black, 5½" Rise, MTB)
Handlebar (27", Black, Wide Cruiser)
Stem (5½", Black, Standard on Cruiser)
Stem (11", Black, Standard on LG)
Headset Cups (pair)
Bottom Cone (Presses on fork)
Key Washer
Handgrips (pair)
Grips: Cream w/ Black Trim
Grips: Leather Stitched
Reflector kit with brackets
Description
Deluxe Sealed Crank Set (Upgrade)
Cups for Crank Housing (pair)
Stationary Washer (inside)
Adjusting Cone (threaded, outside)
Crank Locknut
Crank (one piece, forged, 6½", black)
Sprocket 44 Tooth (3/16", Black)
Sprocket 36 Tooth (3/16", Black)
Chainguard (Black plastic)
Pedal Set - Alloy Platform (Optional)
Chain (3/16"x105 links – 36T sprocket)
Chain (3/16"x109 links – 44T sprocket)
Chain Adjusters (Multi-speed)
our website.
