Summary of Contents for SifWeld Evolution MTS500 ROBOT
- Page 1 Peters House The Orbital Centre Icknield Way Letchworth Garden City Hertfordshire SG6 1ET Tel. +44 (0) 845 130 7757 M IG TI G SifWeld Evolution MTS500 ROBOT Operation Manual Approved TSXE3D500RMTS...
- Page 2 The RoSH Directive 2011/65/EC, entering into force 2 January 2013 Type of Equipment Welding power source for MIG/MAG, TIG/TAG, MMA welding Brand name or trade mark SifWeld® Evolution Type designation etc. MTS500 ROBOT Manufacturer or his authorised representative established within the EEA...
- Page 3 Safety Guidelines These general safety norms cover both arc welding machines and plasma cutting machines unless otherwise noted. The equipment must only be used for the purpose it was designed for. Using it in any other way could result in damage or injury and in breach of the safety rules. Only suitably trained and competent persons should use the equipment.
- Page 4 Wear suitable protective flame resistant clothing. The sparks and spatter from welding, hot work pieces, and hot equipment can cause fires and burns. Welding on closed containers, such as tanks, drums, or pipes, can cause them to explode. Accidental contact of electrode to metal objects can cause arcs, explosion, overheating, or fire.
- Page 5 LF Declaration Consult the data plate on the equipment for the power supply requirements. Due to the elevated absorbency of the primary current from the power supply network, high power systems affect the quality of power provided by the network. Consequently, connection restrictions or maximum impedance requirements permitted by the network at the public network connection point must be applied to these systems.
-
Page 6: Table Of Contents
Contents Preface General Introduction Technical Specifications Overview of Machine Control Panels MMA Display MIG Display MIG Dual Pulse SYN Display MIG Manual Display MIG MAG SYN Display Installation Wire Feed Roller Wire Installation MIG Torch Liner Operation Spool Gun Troubleshooting Maintenance Warranty... -
Page 7: Preface
For your own safety and that of your working environment, pay particular attention to the safety instructions in the manual. For more information on SifWeld products, consult an authorised SifWeld dealer, or visit the SifWeld web site at www.sifweld.com. The specifications presented in this manual are subject to change without prior notice. -
Page 8: Introduction

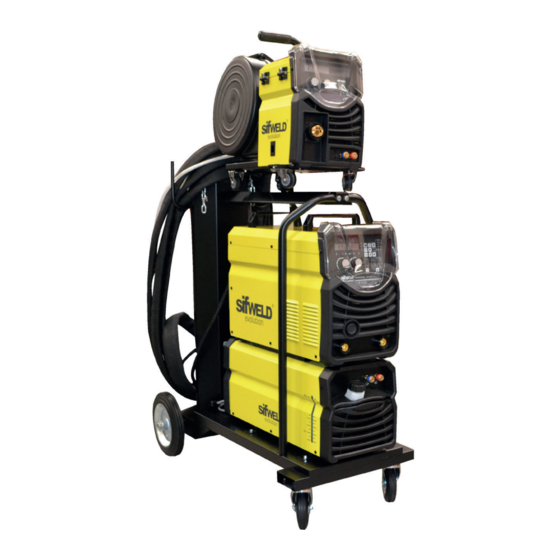

1.2 Introduction The SifWELD MTS500 Robot is a professional, microprocessor-controlled inverter welding package for MIG, MMA & Lift-TIG applications. With 100% Duty Cycle at 400A this machine is the ideal work horse for high production manufacturing in air cooled or water cooled versions. Ideally suited for robotic welding... -
Page 9: Technical Specifications
1.3 Technical Specifications SifWeldEvolution MTS500 ROBOT Input Voltage (V) 3~400±10% Frequency (HZ) 50/60 Input Current (A) 33.1 41.8 Input Power (KW) 28.4 22.9 28.9 Welding Current (A) 40~500 10~500 10~500 Welding Voltage (V) 14.8~39 10.4~30 20.4~40 No-load Voltage (V) 58.1 92.9 92.8 Duty cycle (40... -
Page 10: Overview Of Machine
PANEL FUNCTIONS & DESCRIPTIONS Panel Functions & Descrip Machine Layout Description Front and rear panel layout of welding machine 1.4 Overview of Machine Front View Power Source Front Panel Layout 1. Output cathode 2. Output anode PANEL FUNCTIONS & DESCRIPTIONS Panel Functions &... - Page 11 PANEL FUNCTIONS & DESCRIPTIONS PANEL FUNCTIONS & DESCRIPTIONS Front and rear panel layout of water cooling Front and rear panel layout of water cooling Front View Water Cooler Front Panel Layout 1. Intake 2. Water outlet for TIG (blue). 3. Backwater inlet for TIG (red). Intake: From here, water or coolant, antifreeze, etc.
- Page 12 PANEL FUNCTIONS & DESCRIPTIONS Front Panel Functions and Descriptions Front Panel Functions Front Panel Functions of welder 1. Indicated LED: Rotate to “ON”, power on; rotate to “OFF”, power off. 1. Indicated LED: Rotate to “ON”, power on; rotate to “OFF”, power off. 2.
- Page 13 Further Functions Explained Function key (4) Implicit parameter menu and parameter adjustment method for import and export a) Press the function button (18) indicator light “ON” indicates in parameter adjusting mode. b) Scroll through parameter codes turning knob (14). Codes are shown on meter (3). Once parameter is selected, adjust the knob (15) with selection shown on the meter (8).
- Page 14 Welding process select key (9) Synergic Function The operator simply sets the welding current like MMA or TIG welding and the machine calculates the optimal voltage and wire speed for the material type, wire type and size and shielding gas being used. Obviously other variables such as welding joint type and thickness, air temperature affect the optimal voltage and wire feed setting, so the program provides a voltage fine tuning function for the synergic program selected.
- Page 15 DUAL PULSE FREQUENCY Set pulse frequency, as shown in Figure regulating the value of time T, namely, ripple pattern of density regulation. Higher Hz produces many short ripples with slightly lower penetration. DUAL PULSE DUTY Set strong pulse time T1 (peak) for penetration and low-frequency cycle T2 ratio (cooling), namely the regulation of the proportion of the ripple pattern on weld puddle surface and resulting depth in groove.
-
Page 16: Control Panels
2. Control Panels PANEL FUNCTIONS & DESCRIPTIONS 2.1 MMA Display ront Panel Description Force parameter code ent /Arc Force /Hot Start nt LED n Select Force parameter select Force parameter code nt /Arc Force /Hot Start Set 1. Hot Start/Arc Force parameter code display ront Panel Description 2. -
Page 17: Mig Display
tart/Arc Force parameter code g Current /Arc Force /Hot Start Set 2.2 MIG Display ion - Front Panel Description se SYN Function gic programs select e/ Arc length/ Inductance al thickness /Current/ Wire AG Pulse SYN Function al Wire Select / S4T/ Spot Weld Select Air Cooling Mode Select on Select... -
Page 18: Mig Dual Pulse Syn Display
PANEL FUNCTIONS & DESCRIPTIONS 2.3 MIG Dual Pulse SYN Display AG Dual Pulse SYN Function Synergic programs select Voltage/ Arc length/ Inductance Material thickness /Current/ Wire Speed Set MIG-MAG Dual Pulse Function Select Manual Wire Select 2T/ 4T/ S4T/ Spot Weld Select Water/Air Cooling Mode Select Function Select Air Check Select... -
Page 19: Mig Manual Display
Current/ Wire Speed / Material Thickness Display Programs Numbers/ Voltage/ Arc length/ Inductance Display AG Manual Function Voltage/ Inductance Set 2.4 MIG Manual Display Material thickness /Current/ Wire Speed Set MIG-MAG Manual Function Select Manual Wire Select 2T/4T /Spot Weld Select Water/Air Cooling Mode Select Function Select Air Check Select... -
Page 20: Mig Mag Syn Display
PANEL FUNCTIONS & DESCRIPTIONS 2.5 MIG SYN Display tion rams select ctance Set ness /Current/ Wire N Function Select Select pot Weld Select ling Mode Select ness /Current/ Wire Speed Display 1. Synergic programs select mbers /Voltage/ Inductance Display 2. Voltage/ Inductance Set 3. -
Page 21: Installation
3. Installation Unpacking Check the packaging for any signs of damage. Carefully remove the machine and retain the packaging until the installation is complete. Location The machine should be located in a suitable position and environment. Care should be taken to avoid moisture, dust, steam, oil or corrosive gases. - Page 22 INSTALLATION & OPERATION §4 Installation & Operation MMA Welding Two sockets are available on this welding machine, One Positive (+) and one Negative (-) polarity, to connect MMA/Electrode holder cable and earth clamp cable. Various electrodes require different §4.1 Installation & Operation for MMA Electrode Welding polarity for optimum results and careful attention should be paid to the polarity, refer to the electrode §4.1.1 Set-Up Installation manufacturers information for the correct polarity.
- Page 23 MIG Welding 1. Insert the earth cable plug into the negative socket on the front of the machine and tighten it. 2. Plug the welding torch into the MIG torch connection socket on the front panel of the wire feeder, and tighten it.
- Page 24 (9) Connect the power cable of welding machine with the output switch in electric box on site. NOTE: Air cooling mode without cooling device，and the water pipe is not needed for the air cooling mode. (10) Place wire onto spool holder - (spool (11) Feed wire over the drive roller into the 10.
- Page 25 INSTALLATION & OPERATION 15. Fit the correct size contact tip over the wire (11) Fit the correct sized contact tip and feed and fasten tightly into the tip holder. the wire through it, screw the contact tip into the tip holder of the torch head and nip it up tightly.
-
Page 26: Wire Feed Roller
3.1 Wire Feed Roller The importance of smooth consistent wire feeding during MIG welding cannot be emphasized enough. Simply put the smoother the wire feed then the better the weld. Feed rollers or drive rollers are used to feed the wire mechanically through the length of the welding gun cable. -
Page 27: Wire Installation
DIAGRAM FOR GUN DIAGRAM FOR GUN Wire Installation and Set Up Guide Wire Installation and Set Up Guide Again the importance of smooth consistent wire feeding during MIG welding cannot be 3.2 Wire Installation & Setup Again the importance of smooth consistent wire feeding during MIG welding cannot be emphasized enough. - Page 28 DIAGRAM FOR GUN DIAGRAM FOR GUN INSTALLATION & OPERAT 5. Feed the wire through the drive roller and 6. Lock down the top pressure roller and into the outlet guide tube of the wire feeder. apply a medium amount of pressure using the tension adjustment knob.
-
Page 29: Mig Torch Liner
3.3 MIG Torch liner Types MIG Torch Liners The liner is both one of the simplest and most important components of a MIG gun. Its sole purpose is to guide the welding wire from the wire feeder, through the gun cable and up to the contact tip. Steel Liners Most MIG gun liners are made from coiled steel wire also known as piano wire, which provides the liner with good rigidity and flexibility and allows it to guide the welding wire smoothly through the welding... -
Page 30: Operation
4. Operation Before starting any welding activity ensure that you have suitable eye protection and protective clothing. Also take the necessary steps to protect any persons within the area. • Connect the ground wire with the machine directly. • Ensure that the input is three-phase: 50/60Hz, 400V ±10%. •... -
Page 31: Spool Gun
4.1 Spool Gun Set up installation for Spool Gun 1. Insert the earth cable plug into the negative (-) socket on the front of the machine and twist to tighten. 2.Connect the Spool Gun to the MIG torch connection socket on the front panel of the wire feeder, and tighten it. - Page 32 INSTALLATION & OPERATION (7) Connect the gas line to gas connector on the rear panel. INSTALLATION & OPERATION (8) Connect the power cord of welding machine with the outlet on electrical box. (7) Connect the gas line to gas connector on the rear panel. (8) Connect the power cord of welding machine with the outlet on electrical box.
-
Page 33: Troubleshooting
5. Troubleshooting Error Type Code Description Over-heating (1st thermal relay) Thermal relay Over-heating (2nd thermal relay) Over-heating (Program default) Phase loss Welding machine No water Connection problem between wire feeder and power source Communication Communication error) Communication cord is not connected Communication Communication cord has problem in connected Robot MIG... -
Page 34: Maintenance
6. Maintenance The utilisation level of the power source and its working environment should be taken into consideration in planning the frequency of maintenance of the machine. Appropriate use and preventive maintenance guarantee the best trouble-free use of the equipment. This allows you to avoid interruptions in use and increases the productivity of the machine. -
Page 35: Warranty
Weldability Sif or an Authorised SifWeld Service Centre, in order to maintain validity of the extended warranty. Service visits can be booked online at www.sifweld.com or by calling 0870 330 7757 and will be charged at an average of £65 net per hour of travel/ servicing time. - Page 36 ® Peters House, The Orbital Centre, Icknield Way, Letchworth Garden City, Hertfordshire, SG6 1ET Tel. +44 (0) 845 130 7757 | Fax. +44 (0) 800 970 7757 | Email. sales@weldability-sif.com | www.sifweld.com www.sifweld.com...
