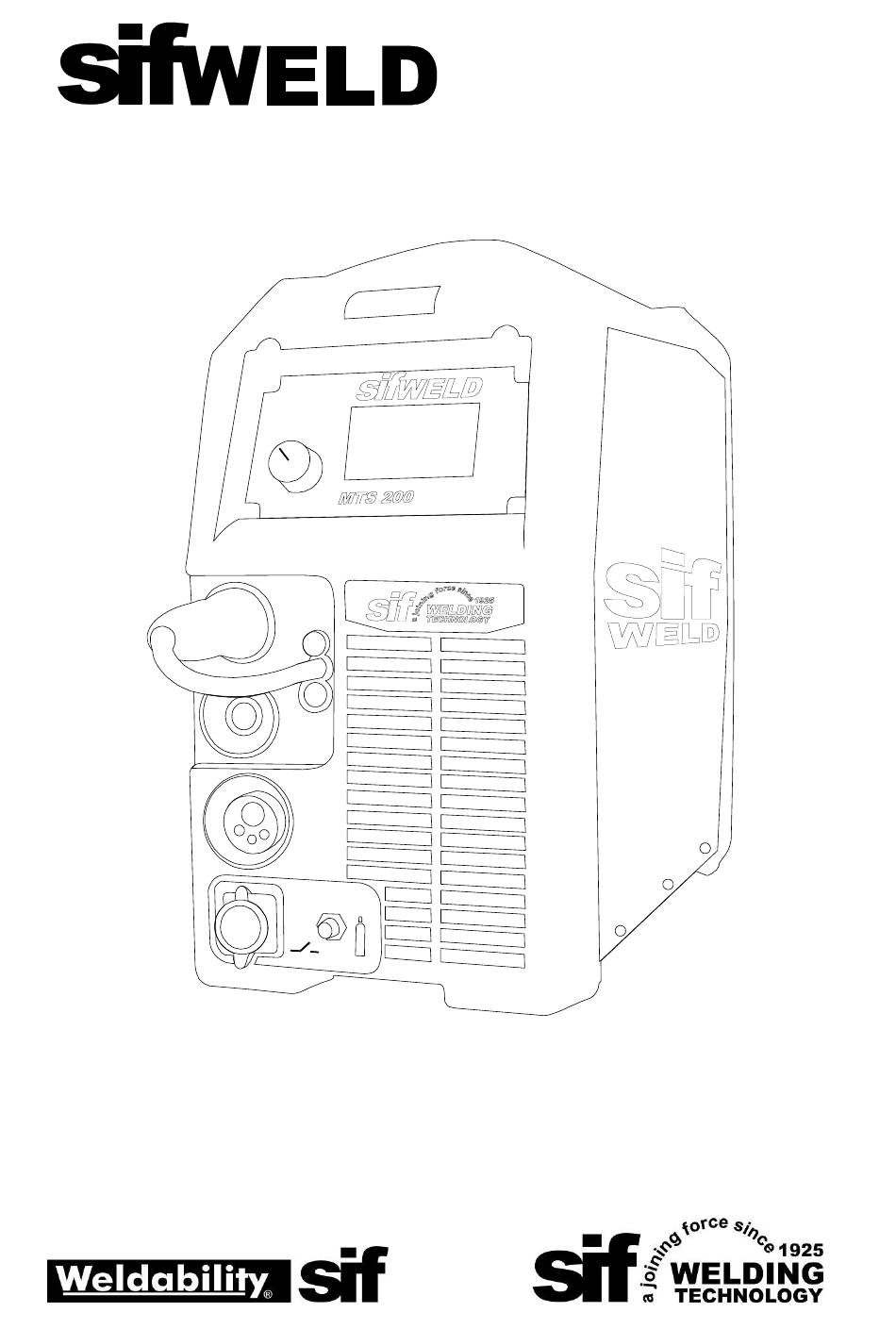

  • Page 1 MTS 200 User Manual TSX1D200MTS SWMTS001...

  • Page 2: Declaration Of Conformity

    Welding power source for MIG/MAG, TIG/TAG, MMA welding Brand name or trade mark Type designation etc. SifWeld MTS200 Manufacturer or his authorised representative established within the EEA Name, address, telephone no, fax no Weldability Sif, Peters House, The Orbital Centre, Icknield Way, Letchworth, Hertfordshire,. SG6 1ET...

  • Page 3: Operation

    1 SAFETY 2 INTRODUCTION 3 TECHNICAL DATA 4 INSTALLATION 4.1 MIG Installation 4.2 TIG Installation 4.3 MMA Installation 5 OPERATION 5.1 Connection and Control Devices 5.2 Display Function Diagram 5.3 Operating Functions 5.4 MIG Function Set Up 5.5 TIG Function Set Up 5.6 MMA Function Set Up 6 RECOMMENDED WELD PARAMETERS 7 DAILY CHECKLIST &...
  • Page 4 1 Safety Weldability Sif does not accept any liability for damage to the product or personal injury caused by ignoring the safety instructions in this manual, or by negligence during installation, use, maintenance, and repair of the product mentioned on the cover of this document and any corresponding accessories. Specific working conditions or used accessories may require additional safety instructions.
  • Page 5 Introduction The SifWeld MTS200 is an inverter welder which adopts the latest Insulated Gate Bipolar Transistor (IGBT) technology. The working principle is to use a single tube IGBT switching device rectifying input power into a DC output then inverted to a high frequency, then stepped-down through the pulse width modulator (PWM) to produce the welding output.

  • Page 6: Technical Data

    Technical Data Model SifWeld MTS200 Item Power Voltage (V) 1ph AC 230/240V Frequency (Hz) 50/60 Rated Input Current (A) I-1max 40.6 Rated Input Current (A) I-1eff 20.3 5-200 Rated Current 5-200 Range 30-200 Recommended Fuse Rating No Load Voltage 20.2-28...

  • Page 7: Installation

    Installation The SifWeld MTS200 is equipped with a network voltage compensation device, this ensures that when the network voltage changes within the 15% range, the machine can still continue to work. The cross-sectional area of any extension cable must be above the cross-sectional area of the machines mains input cable to minimise voltage drop.
  • Page 8 4. Install wire spool, by unscrewing the plastic retainer and placing the wire spool onto the spool hub. 5. Release the pressure arm. 6. Feed the wire into the guide tube, and through the wire feed roll. Set the correct pressure on the arm, and fit back into place.
  • Page 9 Diagram for Installation for MIG Applications TSX1D200MTS - 9 - V1 FEB13...
  • Page 10 Installation for Spool-On Gun MIG Applications 1. Connect to a suitable cylinder with required regulator and gas hose. Select desired polarity via the quick-connect sockets on the front of the machine. Select the Spool-on Gun function via the switch inside the machine. Plug the spool-on torch into the front of the machine.
  • Page 11 Open the spool gun and mount the wire spool onto the spindle. Secure the spool with the retaining screw. Feed wire into the guide tube. Release the pressure of the feed rolls, and feed the wire through into the tip of the torch. TSX1D200MTS - 11 - V1 FEB13...
  • Page 12 Diagram for Installation for Spool-On Gun MIG Applications TSX1D200MTS - 12 - V1 FEB13...
  • Page 13 Installation for TIG Applications 1. Connect to a suitable cylinder with required regulator and gas hose. 2. Screw gas adaptor onto the gas fitting. 3. Insert the TIG adaptor into the negative polarity socket, and screw onto the gas fitting. 4.
  • Page 14 Diagram for Installation for TIG Applications TSX1D200MTS - 14 - V1 FEB13...
  • Page 15 2. Insert the earth clamp control plug into the desired polarity socket for application. The SifWeld MTS200 machine allows for two welding modes, DC + and DC -. In DC positive applications, ensure the electrode holder is connected to the positive polarity socket.
  • Page 16 Diagram for Installation for MMA Applications TSX1D200MTS - 16 - V1 FEB13...

  • Page 17: Connection And Control Devices

    Operation Connection and Control Devices 1. LCD Display Gas Socket 2. MCP- Mono Control Point Input Hose 3. Welding Current Connectors Mains Switch 4. Euro Block Mains Input Cable 5. Control Socket WELD MTS200 Display Function Diagram 1. Mains Supply Switch 2.
  • Page 18 Operating Fuctions 1. Switch the SifWeld MTS 200 machine on via the mains plug, and then the switch on the rear on the machine. 2. Upon turning on, the welcome screen will display on the front panel, showing the SifWeld logo, and then turning into welding standby mode after 5 seconds.
  • Page 19 MIG Function Set Up The settings parameters for MIG welding include: 1. Wire speed The adjusting range of wire speed depends on different types of machine 2. Welding Voltage 3. Inductance 4. Trigger Speed 5. Pre Gas Time In default situations, the pre-gas time and post-gas time should be 0.1 second and the max value 5 seconds. 6.
  • Page 20 MIG SetUp Burn Back Medium 1 Gas Test Wire Test Cancel TIG Function Set Up The settings parameters for TIG welding include: 1. Current Upon adjustment of the welding current, the voltage will change, however you are unable to change the voltage independently.
  • Page 21 7. Gas Test The gas test is mainly to confirm whether the gas circuit is free. MMA Function Set Up The settings parameters for TIG welding include: 1. Current Upon adjustment of the welding current, the voltage will change, however you are unable to change the voltage independently.
  • Page 22 4. Hot Start TSX1D200MTS - 22 - V1 FEB13...

  • Page 23: Recommended Welding Parameters

    Recommended Welding Parameters MIG Welding Parameters Plate Wire Welding Gas Flow Current Voltage Stick Out Thickness Diameter Speed Rate (mm) (mm) (mm) (cm/mi) (LPM) 60 - 70 16 - 16.5 50 - 60 75 - 85 17 - 17.5 50 - 60 10 - 15 80 - 90 16 - 16.5...

  • Page 24: Daily Checklist

    Daily Checklist and Routine Maintenance Daily Checklist These checks should be performed each time prior to using the SifWeld MTS200 unit, to ensure the unit is it perfect condition to avoid any issues Power Source Section To Check Note 1. Switch operation, all connections and...

  • Page 25: Internal Unit

    Internal Unit Section To Check Note 1. Ensure the pressure arm is at the correct Pressure Arm pressure for the wire diameter used 1. Whether savings have accumulated in the Sweep away the shavings and guide tube and wire feed mechanism investigate the problem 2.

  • Page 26: Routine Maintenance

    Routine Maintenance WARNING All maintenance and checks must be performed after shutting off the power supply, and ensure the plug is removed from the mains supply before opening the machine. Using dry compressed air, clear the inside of the welding machine at least once a month, ensuring •...

  • Page 27: Parts Diagram

    Parts List & Circuit Diagram Parts Diagram TSX1D200MTS - 27 - V1 FEB13...

  • Page 28: Parts List

    Parts List Diagram Diagram Part Name Part Name Number Number Plastic rear panel Quick socket Front air connection Wire dish shaft Aviation plug Sheet metal Sheet metal support article clapboard Electromagnetic value Radiator Retifier bridge Plastic support bar Sheet metal B3 Europe joint clapboard Plastic handle...

  • Page 29: Circuit Diagram

    Circuit Diagram TSX1D200MTS - 29 - V1 FEB13...

  • Page 30: Troubleshooting

    Ensure the workplace is clean from oil ,dust, rust and paint • Troubleshooting If a fault should occur with the SifWeld MTS200, please check the diagnostic table, and check all options before attempting to repair the unit. This table can be found on the next page. WARNING The following operations require the operator to have competent electrical knowledge, comprehensive safety knowledge, and hold the required qualification to repair this unit.
  • Page 31 Weldability Sif Technical Department on 0870 330 7757 Initial Diagnostic Table Below is the initial diagnostics table of welding faults. If you experience any faults with the SifWeld MTS200, please refer to this chart initially before any attempt at repair.
  • Page 32 Fault Check points & maintenance items • Loose connection • Gas Hose • Damaged gas tube • Correct size feed roll & • • • • • guide tube for wire diameter • • • • Clean groove in drive roll •...
  • Page 33 Accessories The SifWeld MTS200 unit is suitable for use in the MIG, TIG and MMA applications. Therefore for ease we have listed a range of useful accessories below. Image Part No Item Description 1S 2G Argon Single stage, two gauge Argon...
