- Page 1 Peters House The Orbital Centre Icknield Way Letchworth Garden City Hertfordshire SG6 1ET Tel. +44 (0) 345 130 7757 TI G SifWeld Evolution TS200DC Approved Operation Manual TSXE1T200DC...
- Page 2 The RoSH Directive 2011/65/EC, entering into force 2 January 2013 Type of Equipment Welding power source for TIG/TAG, MMA welding Brand name or trade mark SifWeld® Evolution Type designation etc. TS200DC Manufacturer or his authorised representative established within the EEA...
- Page 3 Safety Guidelines These general safety norms cover both arc welding machines and plasma cutting machines unless otherwise noted. The equipment must only be used for the purpose it was designed for. Using it in any other way could result in damage or injury and in breach of the safety rules. Only suitably trained and competent persons should use the equipment.
- Page 4 Wear suitable protective flame resistant clothing. The sparks and spatter from welding, hot work pieces, and hot equipment can cause fires and burns. Welding on closed containers, such as tanks, drums, or pipes, can cause them to explode. Accidental contact of electrode to metal objects can cause arcs, explosion, overheating, or fire.
- Page 5 LF Declaration Consult the data plate on the equipment for the power supply requirements. Due to the elevated absorbency of the primary current from the power supply network, high power systems affect the quality of power provided by the network. Consequently, connection restrictions or maximum impedance requirements permitted by the network at the public network connection point must be applied to these systems.
-
Page 6: Table Of Contents
Contents Preface General Introduction Technical Specifications Overview of Machine Control Panels MMA Display HF/Lift TIG Display TIG SPOT Display Installation Torch Switch Control Pedal switch Control Operation Troubleshooting Maintenance Warranty... -
Page 7: Preface
For your own safety and that of your working environment, pay particular attention to the safety instructions in the manual. For more information on SifWeld products, consult an authorised SifWeld dealer, or visit the SifWeld web site at www.sifweld.com. The specifications presented in this manual are subject to change without prior notice. -
Page 8: Introduction

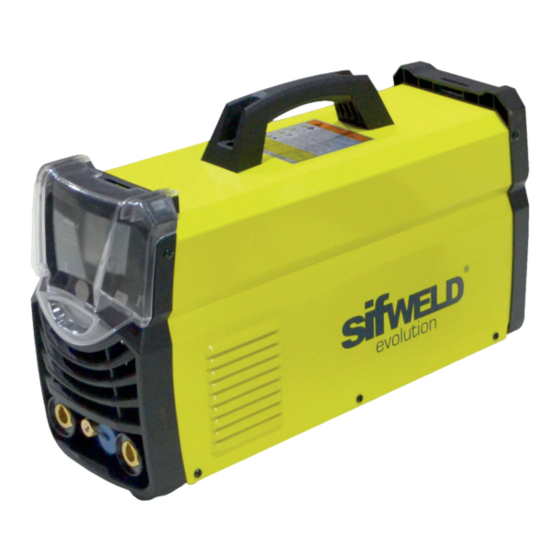

1.2 Introduction A professional, microprocessor-controlled inverter welding power source for DC TIG & MMA applications. The use of IGBT technology providing a compact and lightweight machine that is feature rich. High Frequency ignition and High Speed Pulse and the complete range of fully adjustable parameters normally expected on a professional TIG welding machine. -
Page 9: Technical Specifications
1.3 Technical Specifications SifWeld Evolution TS200DC Power source 1-110V±10%, 50/60Hz 1-230V±10%, 50/60Hz Rated input current (A) 24.1 31.9 19.8 29.6 Rated input power (KW) Power factor 0.99 Welding current range (A) 10~130 10~200 Max no load voltage (V) 66.9 67.2... -
Page 10: Overview Of Machine
INSTALLATION & OPERATION §3 Installation & Opera §3.1 Layout for Front and Rear panel 1.4 Overview of Machine Front View Power Source Front Panel Layout 1 Negative output 2 Shield gas connector 3 Control socket 4 Positive output INSTALLATION & OPERATION §3 Installation &... -
Page 11: Control Panels
INSTALLATION & OPERATION 2. Control Panels §3.2 Layout for Control panel §3.2.1 Control panel 1. Screen: It will show all welding parameters, such as welding voltage, welding current 1. Screen and other parameters set. It will show all welding parameters, such as welding voltage, welding current and other parameters set. 2. -
Page 12: Mma Display
INSTALLATION & OPERATION 2.1 MMA Display §3.2.2 MMA display introduction 1. SETTING button: Press it to lock “SETING” interface, then turn the Parameters 1. SETTING button select/adjust knob to select MMA welding mode. Press it to lock “SETTING” interface, then turn the Parameters select/adjust knob to select 2. -
Page 13: Hf/Lift Tig Display
INSTALLATION & OPERATION 2.2 HF/LIFT TIG Display §3.2.3 HF/LIFT TIG display introduction 1. SETING button: Press it to lock “SETING” interface, then turn the Parameters 1. SETTING button select/adjust knob to select TIG LIFT or TIG HF welding mode. Press it to lock “SETTING” interface, then turn the Parameters select/adjust knob to select TIG LIFT or TIG 2. - Page 14 4T Mode This is known as ’latching’ mode. The trigger is pulled once and released to activate the welding circuit, pulled and released again to stops the welding circuit. This function is useful to longer welds as the trigger is not required to be held on continuously. TIG series of welding machines also has more current control options that can be used in 4T mode.
-
Page 15: Tig Spot Display
Post current setting Available in 4T trigger mode only, sets a welding current 5~100% of the peak welding current activated when the trigger is held on to ‘unlatch’ the trigger before the weld is finished. If downslope is set, the current will go through the downslope period before going to the end current set. - Page 16 INSTALLATION & OPERATION 2T Mode 2T MODE The trigger is pulled and held on to activate the welding circuit, when the trigger is The trigger is pulled and held on to activate the welding circuit, when the trigger is released, the released, the welding circuit stops.
- Page 17 PANEL FUNCTIONS & DESCRIPTIONS 4T MODE This is known as ’latching’ mode. The trigger is pulled once and released to activate the welding circuit, welding circuit, pulled and released again to stops the welding circuit. This function is pulled and released again to stops the welding circuit. This function is useful to longer welds as the useful to longer welds as the trigger is not required to be held on continuously.
-
Page 18: Installation
3. Installation Unpacking Check the packaging for any signs of damage. Carefully remove the machine and retain the packaging until the installation is complete. Location The machine should be located in a suitable position and environment. Care should be taken to avoid moisture, dust, steam, oil or corrosive gases. - Page 19 panel (0.0～10S); (12) t7: Electromagnetic valve is closed and stop argon flowing. Welding is finished. §3.3 Installation & Operation for MMA welding §3.3.1 Set up installation for MMA Welding Connection of Output Cables MMA Welding Two sockets are available on this welding machine. For MMA welding the electrode holder is shown be Two sockets are available on this welding machine.
- Page 20 INSTALLATION & OPERATION §3.4 Installation & Operation for TIG welding TIG Welding §3.4.1 Set up installation for TIG Welding 1. Insert the earth cable plug into the positive socket on the front of the machine and tighten it. 2. Plug the welding torch into the negative socket on the front panel, and tighten it. (1) Insert the earth cable plug into the positive socket on the front of the machine and 3.
-
Page 21: Torch Switch Control
3.1 Torch Switch Control INSTALLATION & OPERATION §3.4.6 Gun switch control current UP/DOWN GUN Adjust current button, Torch switch when it’s pushed up, the current increase, when it’s pushed down, the current decrease. Remote Control Socket Socket Pin Function Not connected Not connected Not connected Not connected... -
Page 22: Pedal Switch Control
INSTALLATION & OPERATION succeed. 3.3 Pedal Switch Control §3.4.8 Pedal switch control ● When plug the twelve-lead aero-socket of pedal switch in it. Welder will identify the pedal switch, the welding current knob on the front panel will can’t use，and only 2T can When plug the twelve-lead aero-socket of pedal switch in it. -
Page 23: Operation
4. Operation Before starting any welding activity ensure that you have suitable eye protection and protective clothing. Also take the necessary steps to protect any persons within the area. -
Page 24: Troubleshooting
5. Troubleshooting Error Type Code Description Over-heating (1st thermal relay) Over-heating (2nd thermal relay) Thermal relay Over-heating (3rd thermal relay) Over-heating (4th thermal relay) Over-heating (Program default) Phase loss No gas Welding machine Under voltage Over voltage Over current Wire feeder over load Button fault on operating panel when switch on the machine Other faults on operating panel when switch on the machine Switch... -
Page 25: Maintenance
6. Maintenance The utilisation level of the power source and its working environment should be taken into consideration in planning the frequency of maintenance of the machine. Appropriate use and preventive maintenance guarantee the best trouble-free use of the equipment. This allows you to avoid interruptions in use and increases the productivity of the machine. -
Page 26: Warranty
Weldability Sif or an Authorised SifWeld Service Centre, in order to maintain validity of the extended warranty. Service visits can be booked online at www.sifweld.com or by calling 0870 330 7757 and will be charged at an average of £65 net per hour of travel/ servicing time. - Page 27 Notes...
- Page 28 ® Peters House, The Orbital Centre, Icknield Way, Letchworth Garden City, Hertfordshire, SG6 1ET Tel. +44 (0) 345 130 7757 | Fax. +44 (0) 800 970 7757 | Email. sales@weldability-sif.com | www.sifweld.com www.sifweld.com...
