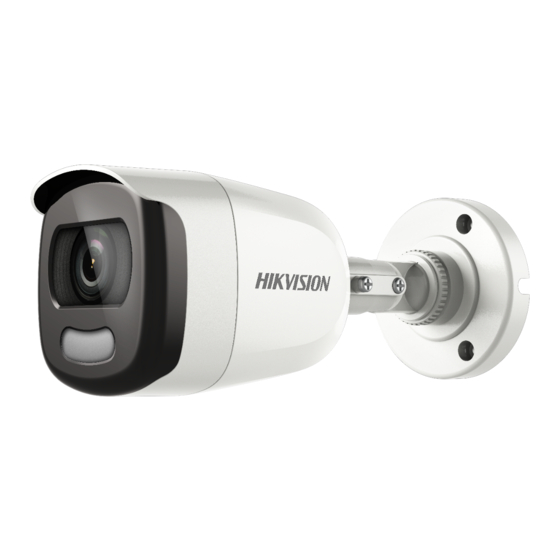

Turbo hd full time color series bullet camera

Advertisement

Quick Links

User Manual
Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual applies to the models below:
Type
Type I Camera
Type II Camera
This manual may contain several technical mistakes or
printing errors, and the content is subject to change
without notice. The updates will be added to the new
version of this manual. We will readily improve or
update the products or procedures described in the
manual.
Full Time Color Series
TURBO HD
Bullet Camera
User Manual
Model
DS-2CE10DFT-FC
DS-2CE10DFT-PFC
DS-2CE10DFT-FC28
DS-2CE10DFT-PFC28
DS-2CE12DFT-FC
DS-2CE12DFT-FC28
0100001090717

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-2CE10DFT-FC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HIKVISION DS-2CE10DFT-FC

  • Page 1 Thank you for purchasing our product. If there are any questions, or requests, do not hesitate to contact the dealer. This manual applies to the models below: Type Model DS-2CE10DFT-FC DS-2CE10DFT-PFC Type I Camera DS-2CE10DFT-FC28 DS-2CE10DFT-PFC28 DS-2CE12DFT-FC Type II Camera...
  • Page 2: Regulatory Information

    Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  • Page 3 Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions”. Warnings: Serious injury or death may occur if any of the warnings are neglected.
  • Page 4: Product Features

    Keep the camera away from liquid while in use for  non-water-proof device. While in delivery, the camera shall be packed in its  original packing, or packing of the same texture. Mark Description Table 0-1 Mark Description Mark Description DC Voltage 1 Introduction 1.1 Product Features...
  • Page 5: Installation

    2 Installation Before you start Make sure that the device in the package is in good  condition and all the assembly parts are included. Make sure that all the related equipment is power-off  during the installation. Check the specification of the products for the ...
  • Page 6 For cement wall/ceiling, expansion bolts are  required to fix the camera. For wooden wall/ceiling, self-tapping screws are required. 4. Route the cables through the cable hole, or the side opening. 5. Connect the corresponding power cord, and video cable. 6.
  • Page 7 Figure 2-5 Fix the Camera on the Junction Box’s Cover 5. Attach the junction box body to the ceiling/wall by aligning the screw holes of the junction box. 6. Secure the junction box’s body with supplied screws on the ceiling/wall. Junction Box Body Figure 2-6 Fix the Junction Box to the Wall/Ceiling...
  • Page 8 Figure 2-8 Drill Template Note: Drill the cable hole in the center of the drill template, when adopting ceiling outlet to route the cable. 3. Route the cables through the cable hole (optional) or the side opening. 4. Fix the camera to the ceiling with supplied screws. Figure 2-9 Fix the Camera to the Ceiling Note: The supplied screw package contains self-tapping...
  • Page 9 Loosen the No.3 adjusting screw to adjust the rotation position [0° to 360°]. Tighten the No.3 adjusting screw. Ceiling/Wall Mounting with Junction Box 2.2.2 Before you start: You need to purchase a junction box separately. Steps: 1. Paste the drill template on the ceiling/wall. 2.
  • Page 10: Menu Description

    8. Repeat the step 5 and 6 of 2.2.1 Ceiling/Wall Mounting without Junction Box to complete the installation. 3 Menu Description Follow the steps below to call the menu. Note: The actual display may vary with your camera model. Steps: 1.
  • Page 11: Video Settings

    3). Click left/right direction button to adjust the value of the selected item. 3.1 FORMAT You can set the video format to 2MP@25fps, or 2 MP@30fps. 3.2 EXPOSURE EXPOSURE describes the brightness-related parameters, which can be adjusted by EXPOSURE MODE, AGC, and SLOW SHUTTER.
  • Page 12: Image Mode

    VIDEO SETTINGS IMAGE MODE WHITE BALANCE BRIGHTNESS CONTRAST SHARPNESS SATURATION 3DNR MIRROR BACK EXIT SAVE & EXIT Figure 3-4 VIDEO SETTING IMAGE MODE IMAGE MODE is used to adjust the image saturation, and you can set it to STD (Standard) or HIGH-SAT (High Saturation).
  • Page 13 conditions, and delivering more accurate and sharper image. MIRROR OFF, H, V, and HV are selectable for mirror. OFF: The mirror function is disabled. H: The image flips 180° horizontally. V: The image flips 180° vertically. HV: The image flips 180° both horizontally and vertically.
  • Page 14: Factory Default

    MOTION In the user-defined motion detection surveillance area, the moving object can be detected and the alarm will be triggered. Up to 4 motion detection areas can be configured. MOTION MODE  AREA 0  AREA 1  AREA 2 ...
