Integra Padgett SB Manual

Slimline dermatome
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Integra
Padgett
®
®
Model SB
Slimline Dermatome

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Padgett SB and is the answer not in the manual?

Questions and answers

Related Manuals for Integra Padgett SB

Summary of Contents for Integra Padgett SB

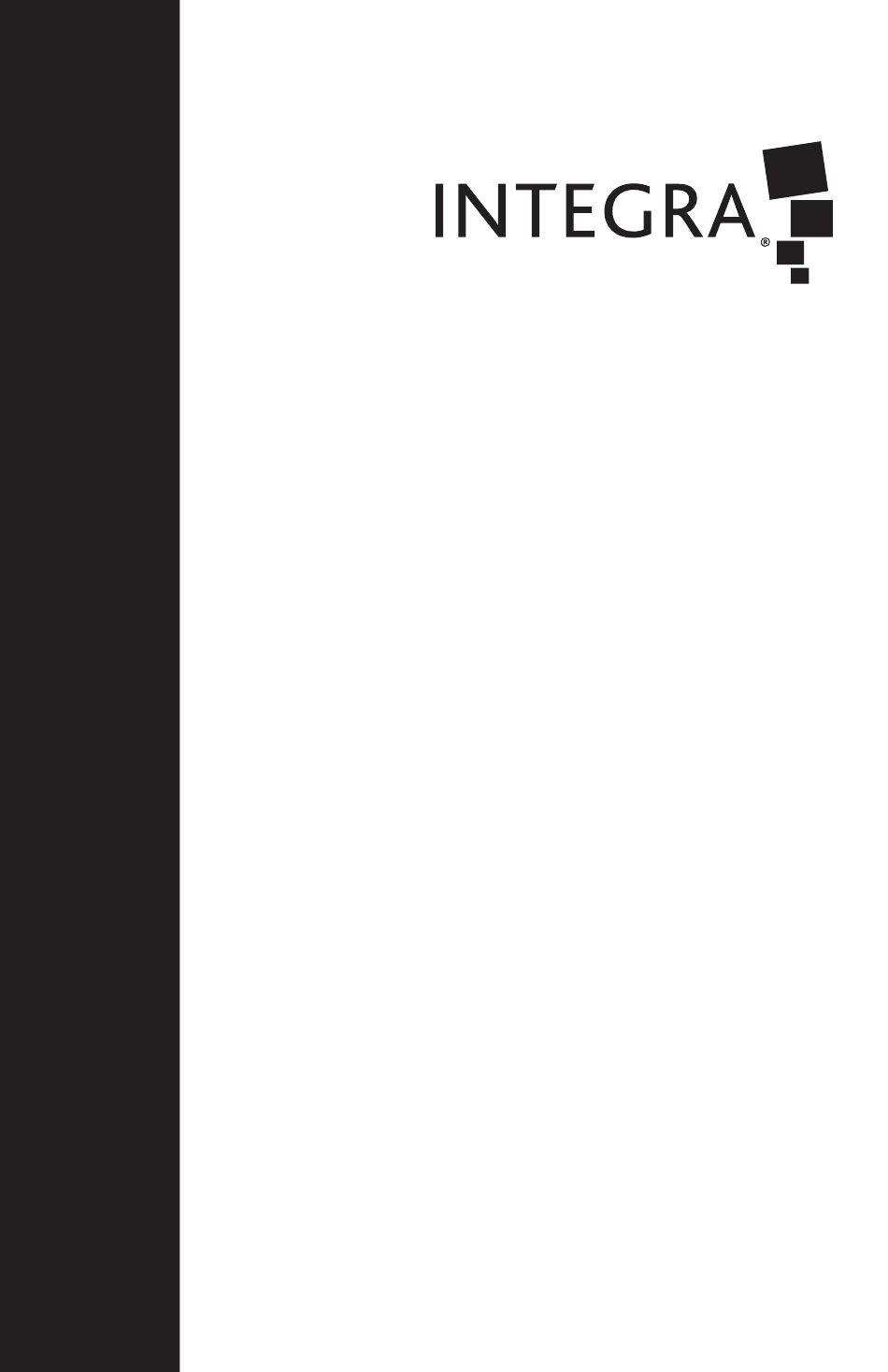

  • Page 1 Integra Padgett ® ® Model SB Slimline Dermatome...

  • Page 2: Table Of Contents

    Contents Introduction ..........................2 Features ............................. 2 Optional Features ........................2 Components—Model SB Slimline ..................3 Classifications .......................... 4 Specifications ........................... 4 Warnings ........................... 5 Precautions ..........................6 International Symbols ......................8 Calibration ..........................9 The Power Supply ........................10 How to Use the Model SB Slimline Dermatome ..............11 Maintenance And Servicing ....................13 Trade-In ...........................13 Cleaning And Decontamination ...................14...

  • Page 3: Introduction

    Integra Padgett representative to purchase the Sterilization Tray. • A 25 ft (7.62 m) hand piece power cord (part# 3539-715-25) may also be purchased. Warning: Read this manual thoroughly before using any parts of the Integra Padgett Model SB Slimline Dermatome.

  • Page 4: Components-Model Sb Slimline

    Box of blades (10 per box) 3539-715-13 13’ (3.96 m) Hand piece power cord 3539-799 Integra Padgett Universal 3539-240 Dermatome carry case Dermatome Sterilizing Tray The Model SB has no user serviceable parts! The complete unit must be returned to the authorized repair center to obtain repair or maintenance.

  • Page 5: Classifications

    Classifications In accordance with: 60601-1/IEC 60601-1, Class I, Type BF Continuous Operation with Short Term Loading Explosion hazard. DO NOT use in the presence of flammable anesthetics. Specifications Maximum Graft Width SB: 4" (10.16 cm) Input Voltage 100-250Vac Input Frequency 50 / 60Hz Output Volts 48Vac...

  • Page 6: Warnings

    To reduce the risk of electrical shock DO NOT remove power supply cover. Refer maintenance and servicing to the Integra Padgett Dermatome Repair Center. The movement of the blade generates heat which may cause a heat related injury to the patient.

  • Page 7: Precautions

    Prior to use visually inspect the dermatome hand piece and its cord for signs of physical damage or wear. Do not use the dermatome if damage is observed. The dermatome hand piece can only be serviced by the Integra Padgett Dermatome Repair Center (refer to Maintenance and Servicing Section, page 13). Dermatome hand piece cord damage may include cracks or discoloration of the cable jacket, exposed conductors, or distortion of the cord or connector.
  • Page 8 Note any unusual motor sounds. If issues are experienced with any of these system checks, do not use the dermatome and return the unit to the Integra Padgett Dermatome Service Center for service (see Maintenance and Servicing section).

  • Page 9: International Symbols

    International Symbols This symbol represents the international symbol for Type B Medical Equipment. This symbol represents the international symbol for Protective Earth (ground). This symbol represents the international symbol for Direct Current. This symbol represents the international symbol for cutting. This symbol represents the international symbol for “Caution, consult accompanying documents.”...

  • Page 10: Calibration

    Using the Calibration Guide (3539-259) Hold the Guide in your Right hand with the Integra logo facing up. Lower the LEFT side of the Guide Slot over the Oscillating Pin and against the top of the Blade Guides.

  • Page 11: The Power Supply

    The Power Supply The green light on the power supply is a “ready” light, indicating that the dermatome is ready for use whenever the light is on. Please note there may be up to a two-second delay when the power switch is first activated before the green light illuminates.

  • Page 12: How To Use The Model Sb Slimline Dermatome

    How to Use the Model SB Slimline Dermatome The Model SB Dermatome must be sterilized prior to use (refer to page 17 Sterilization Section for instructions). The Model SB Dermatome is equipped with a detachable cord. The detachable cord is color-coded. The silver end connects into the hand piece and the black end connects to the power supply.
  • Page 13 Excessively tightened screws may cause dermatome performance issues or permanent device damage. Only use the Integra Padgett supplied screwdriver to tighten the screws. The desired thickness of the graft is...

  • Page 14: Maintenance And Servicing

    Trade-In Any dermatome, regardless of its working order or manufacturer, may be traded in for credit against the purchase of a new dermatome. Contact your Integra Padgett Representative for details. The trade-in program is based on a one-for-one trade. If you choose to dispose of your unit follow your facility’s disposal protocols.

  • Page 15: Cleaning And Decontamination

    Further disassembly of the instrument is likely to cause permanent damage. The dermatome contains no user serviceable parts and must be returned to an approved Integra Padgett Dermatome repair center for repair and maintenance. Cutting Head Removal CAUTION: The dermatome’s cutting head should only be removed to perform the cleaning and decontamination process.
  • Page 16 Cleaning And Decontamination (Continued) Maintain Moisture: Immediately after the surgical procedure, place the dermatome hand piece, width clip, guard, and screw fasteners in an instrument container and apply a transport foam or gel product (e.g., Steris PRE-Klenz®) specifically intended to keep soil moist on surgical instruments. Also introduce some of the foam or gel product into the oscillating pin recess of the cutting head.
  • Page 17 If damage is observed do not use the dermatome and return immediately to the Integra Padgett Dermatome Repair Center for service (refer to Maintenance and Servicing section).

  • Page 18: Sterilization

    Sterilization The Model SB Slimline Dermatome is provided NON-STERILE and must be sterilized prior to use. The sterilization cycle parameters outlined below have been validated for the Model SB Slimline Dermatome. Steam Sterilization: Cycle Exposure Exposure Time Dry Time Conditions Temperature Wrapped Pre-Vacuum 132°C (270°F)

  • Page 19: Limited Warranty

    (1) year (except as otherwise expressly provided as to accessory items) from the date of delivery by INTEGRA to the first purchaser, but in no event beyond the expiration date stated on any product labeling.
  • Page 20 866-800-7742 fax integralife.com Integra, Padgett and the Integra logo are registered trademarks of Integra LifeSciences Corporation or its subsidiaries in the United States and/or other countries. AORN is a trademark of the Association of Operating Room Nurses, Inc. Pre-Klenz is a trademark of Steris Corporation. ASP, Enzol and Sterrad are trademarks of Johnson and Johnson.
