Mounting the panel
7.

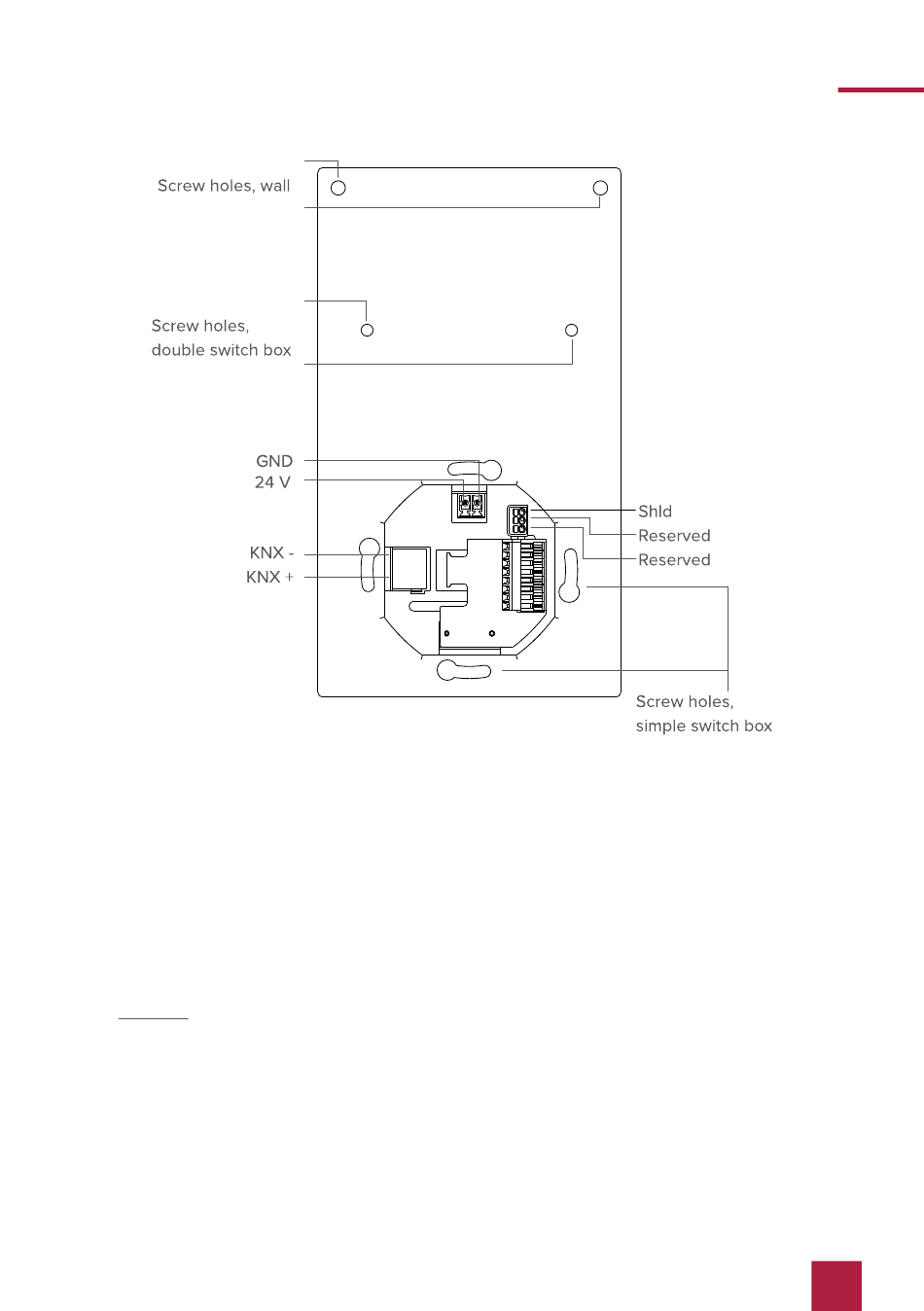

Screw the mounting plate to the switch box (suitable switch box for installation: standard
screw spacing 60 mm, depth min. 35 mm)
8.
Fasten the plate additionally in the upper two holes with two dowels in the wall. If you use a
double switch box, use the center holes of the mounting plate for mounting.
9.
Insert the panel into the mounting plate.
The logo should be at the bottom edge (portrait format).
The panel is held by magnets on the mounting plate.
10.
Optional: Secure the panel from the side or from below with the 4 grub screws included, see
chapter Touch panel elements Pos. 6. Use the included tool.
