EN Controlmicro, Getting started

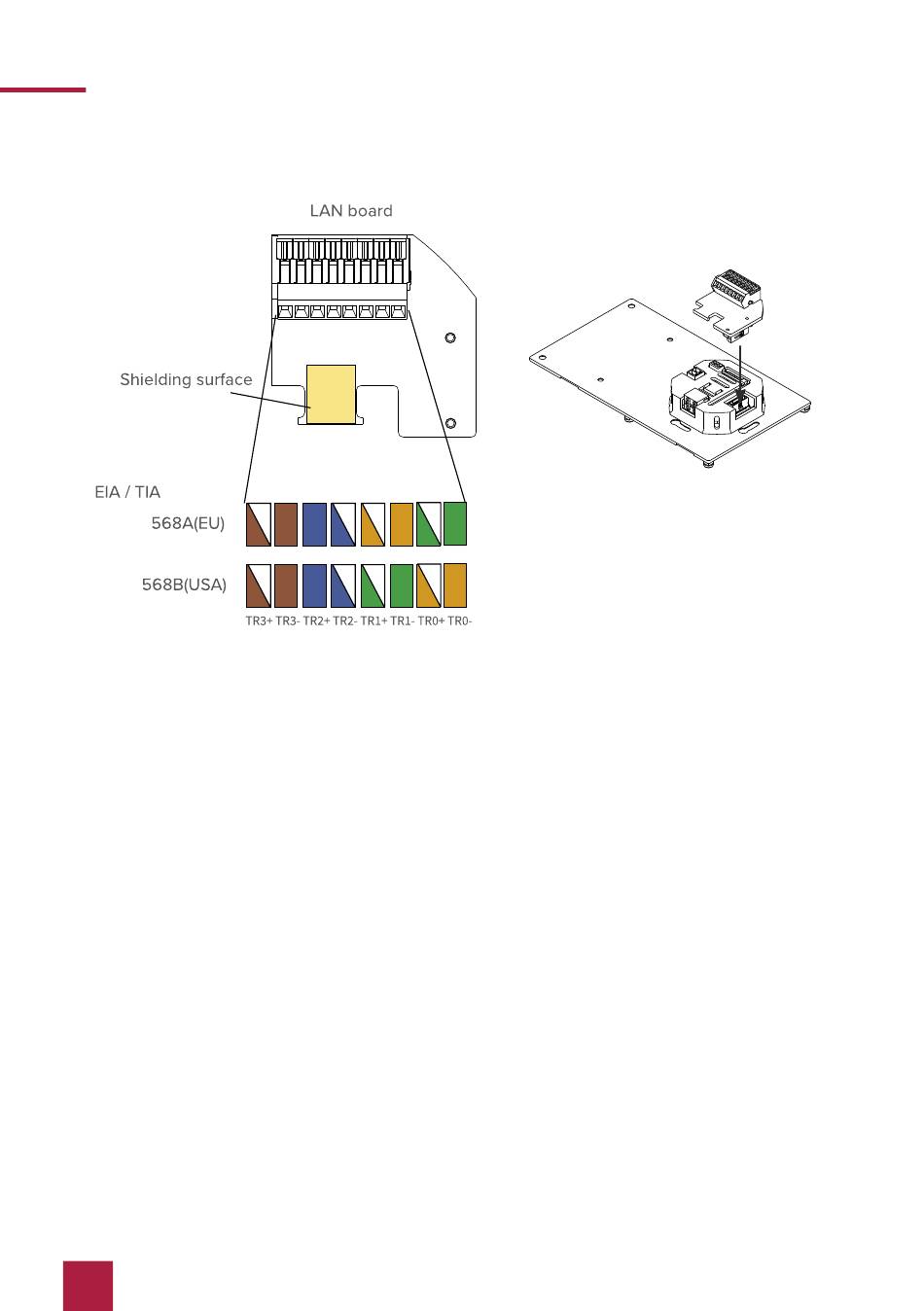

1. Connect the network cable to the LAN board as shown in the picture on the left.
2. Plug the LAN board onto the LAN connector as shown in the picture on the right.
3. Fasten the network cable to the black housing using a cable tie.
− While doing this, clamp the shielding between the cable and the designated area on the
board.
4. Connect the cable wires of the power supply unit with the pluggable screw terminal inclu-
ded in the scope of delivery.
5. Plug the KNX cable with the colors red (+) and black (-) into the pluggable KNX-terminal
Connecting the panel
6. Push the prepared plugs for
− KNX and
− Power supply
into the appropriate connections of the mounting plate, as shown in the
16
picture.
