2.3 Target connector

The CODEGRIP device can be used with any hardware, equipped with the
ICSP/EJTAG programming header. Packed in a sturdy casing with rubber
feet, it can be used independently, bringing all the powerful features to a
third-party hardware.
VCC-TGT
GND
GND
NC
NC
GND
GND
GND
GND
GND

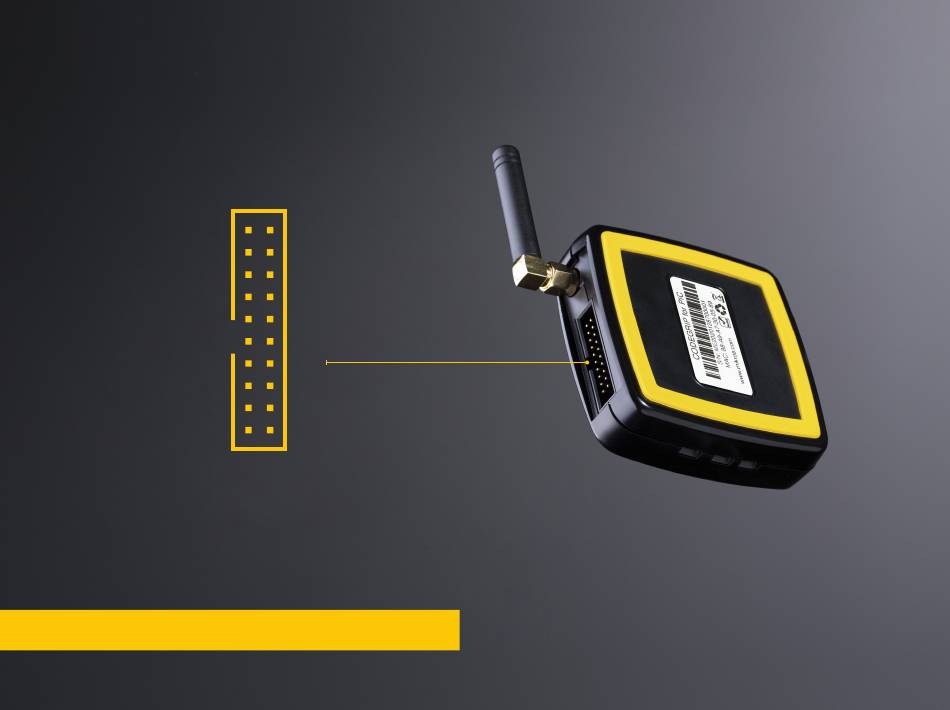

The CODEGRIP device is equipped with the target MCU connector, which
contains ICSP/EJTAG and power supply pins. This connector is used to
interface the CODEGRIP device with the target MCU, allowing it to perform
programming and debugging operations, to provide the power supply for
the target MCU, and to be used as the power input when the CODEGRIP
device is powered from the connected development board.
N O T E When the connected host board provides power to the CODEGRIP
device, CODEGRIP input voltage must be in range 2.5V to 10V.
TMS
TCK/PGC
TDO/PGD
TDI
MCLR
NC
NC
NC
NC
NC
On the bottom of the CODEGRIP device there is the sticker which contains
additional information.
∫ Supported MCU family/architecture
∫ Unique serial number
∫ Unique WiFi MAC address
CODEGRIP firmware
The CODEGRIP device is based on the powerful 32-bit MCU, which utilizes a
complex firmware to provide all the required functionalities. The firmware
will be continuously improved so that additional optimizations, functions,
and support for new MCU families might be added in the future. Therefore,
the complete CODEGRIP programming environment is designed so that
the firmware upgrade process is effortless and easy.
