  • Page 1 190 data logger Instruction manual...

  • Page 2: Table Of Contents

    Transport ....................7 Disposal ....................7 Description of the instrument ............. 8 Use ......................8 testo 190 data logger variants ..............9 testo 190 data logger overview .............. 9 Power supply ..................10 Programming and readout unit ............. 11 testo 190 CFR software ................ 11 Commissioning ..................

  • Page 3: Safety And Disposal

    Maintenance work that is not described in this documentation must only be carried out by trained service engineers. • Use only original spare parts from Testo. • External circuits may only be supplied with output voltages below the limits of 30 V RMS and 42.4 V peak or 60 V DC by a certified mains unit with reinforced or double insulation for protection against electric shock.
  • Page 4 1 Safety and disposal • Improper use of batteries may cause destruction of the batteries, injuries due to current surges, fire or the escape of chemicals. • Only use the battery supplied in accordance with the instructions in the instruction manual. •...
  • Page 5 1 Safety and disposal • Do not store unused batteries in the proximity of metal objects. • Do not use any damaged batteries. First-aid measures • If there is any contact with the skin or eyes, the areas must be rinsed with water for at least 15 minutes.

  • Page 6: Warning Notices

    1 Safety and disposal Warning notices Always pay attention to any information denoted by the following warnings. Implement the precautionary measures specified! DANGER Risk of death! WARNING Indicates possible serious injury. CAUTION Indicates possible minor injury. CAUTION Indicates possible damage to equipment. Symbols Display Explanation...

  • Page 7: Transport

    1 Safety and disposal Transport • Always transport and store the data loggers and accessories in the Testo cases. Disposal • Dispose of faulty and/or spent batteries in accordance with the valid legal specifications. • At the end of its useful life, deliver the product to the separate collection point for electric and electronic devices (observe local regulations) or return the product to Testo for disposal.

  • Page 8: Description Of The Instrument

    As is common practice, Testo generally excludes support, warranty or guarantee claims relating to functionality that has not been guaranteed by Testo as part of the product offered. Claims of this kind shall also be excluded in the event of improper use or handling of the products, e.g.

  • Page 9: Testo 190 Data Logger Variants

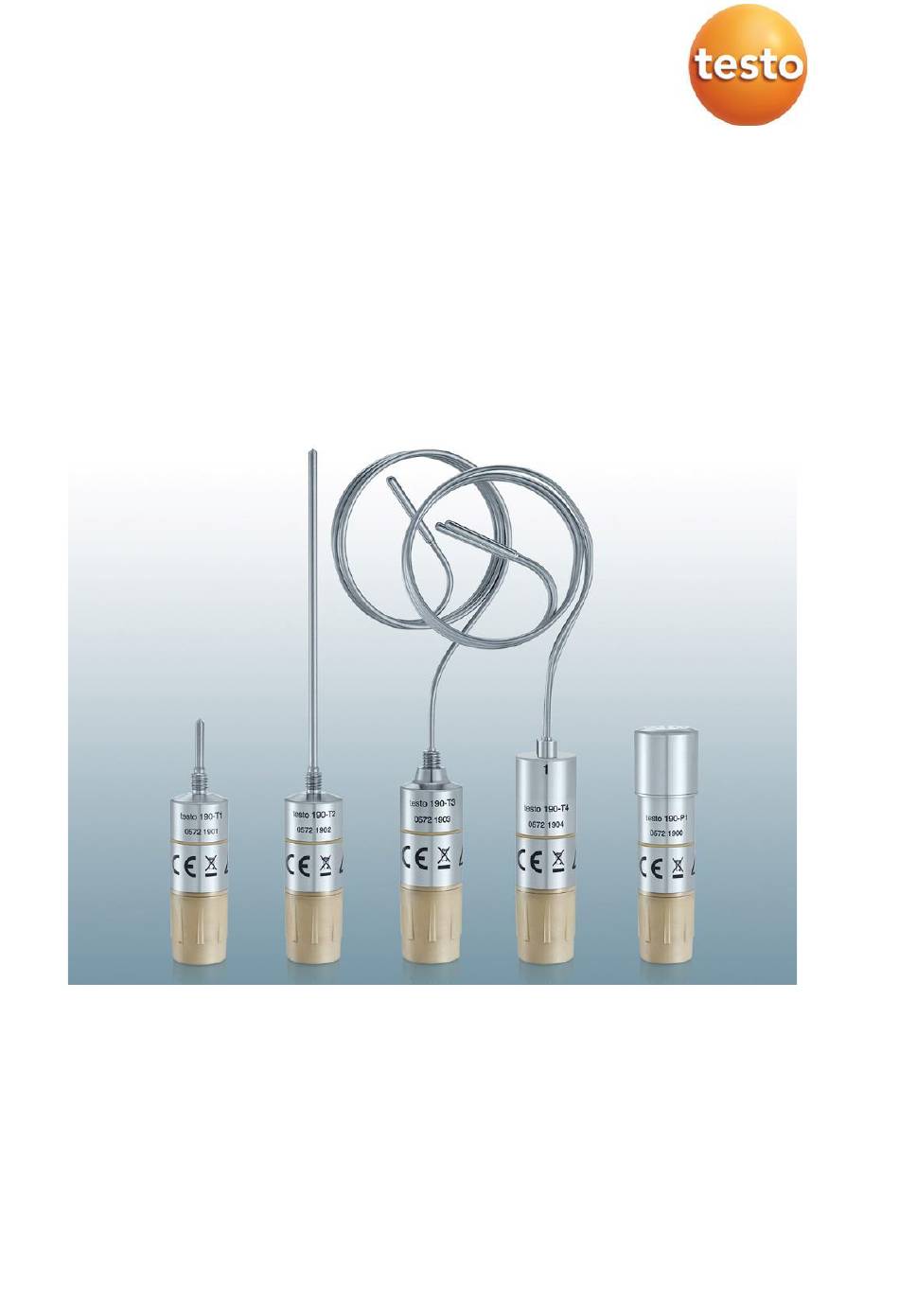

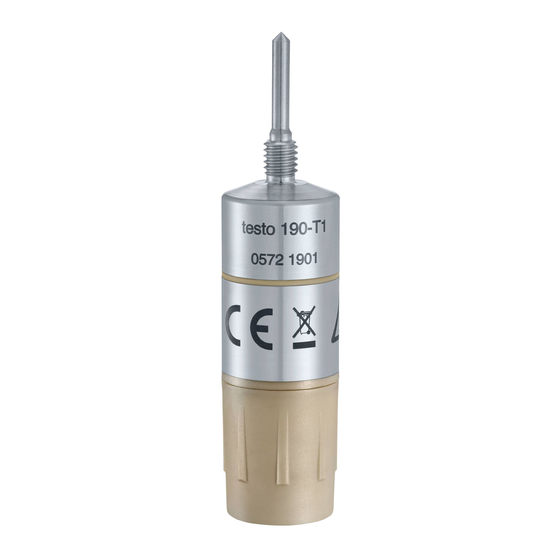

    2 Description of the instrument testo 190 data logger variants 1 testo 190-T1 2 testo 190-T2 3 testo 190-T3 4 testo 190-T4 5 testo 190-P1 testo 190 data logger overview 1 Probe shaft tip 2 Probe shaft 3 Thread 4 Programming and readout...

  • Page 10: Power Supply

    Section 6, Technical data. 2.4 Power supply Large and small battery types are available for all testo 190 data loggers. For information on installing and changing the batteries, please refer to Section 3.1 Installing the battery and 4.2 Changing the battery. Section 6 contains the Technical data for the batteries.

  • Page 11: Programming And Readout Unit

    190 CFR software The testo 190 CFR software can be used to program the testo 190 data loggers via the programming and readout unit (e.g. measuring cycle, measurement start, measurement stop, etc.) and to read them. It also offers calculation and analysis options for the measurement data acquired.

  • Page 12: Commissioning

    3 Commissioning 3 Commissioning Installing the battery The testo 190 data loggers are supplied with a large battery as standard. The data logger can therefore be used in the temperature range from -50 °C to +140 °C. The small battery, which can be used in the temperature range from - 20 °C to +140 °C, can be purchased as an accessory.
  • Page 13 3 Commissioning  The O-ring between the metal housing and the battery must no longer be visible. ATTENTION Inserting the battery incorrectly will cause damage! Ingress of moisture! - The rib must be positioned inside the position marking on the data logger. The service life of the batteries depends very much on the conditions in the area of use.

  • Page 14: Positioning The Distance Adapter In The Programming And Readout Unit

    The data loggers are supplied with the appropriate distance adapters. The testo 190-P1 data logger does not have a distance adapter and can be placed in the programming and readout unit without using one. Insert the distance adapter into the socket first.

  • Page 15: Connecting The Programming And Readout Unit To The Pc Via Usb

    PC via USB Please ensure that the case is securely positioned so that the case lid cannot fall onto the cable. The computer is started up and the testo 190 CFR software is ✓ enabled. The battery is connected to the data logger and is functional.
  • Page 16 Positioning the data logger in the programming and readout unit.  The data loggers can be programmed for the measurements using the testo 190 CFR software.

  • Page 17: Operation

    4 Operation 4 Operation Bending flexible probe shafts The testo 190-T3 and testo 190-T4 data loggers have flexible probe shafts. The testo 190-T1 and testo 190-T2 data loggers are equipped with rigid probe shafts, which must not be bent. ATTENTION...

  • Page 18: Changing The Battery

    Remove any dirt from the data logger and the contact pins. Connect new battery, see Section 3.1, Installing the battery. The battery replacement must be confirmed in the testo 190 Software CFR. This can be done under the menu item Programming of loggers.

  • Page 19: Installing The Freeze-Drying Probe Holder

    Installing the freeze-drying probe holder The freeze-drying probe holder can only be used in conjunction with the testo 190-T3 and testo 190-T4 data loggers. ATTENTION Damage to the instrument due to improper use! - The freeze-drying probe holder can only be used in a freeze-drying system.

  • Page 20: Mounting The Retaining Clamp

    4 Operation Mounting the retaining clamp The testo 190-T1, testo 190-T2 and testo 190-T3 data loggers have a thread on the probe shaft, which is intended for attaching the retaining clamp. The data logger can therefore be attached in systems or loading baskets without the use of adhesive tape.

  • Page 21: Maintenance

    Temperature data loggers: The testo 190 T1, testo 190 T2, testo 190 T3 and testo 190 T4 instruments must be completely immersed in a liquid bath during calibration, i.e. the probe, body and battery.

  • Page 22: Technical Data

    ± 5 s in 12 h Response time t-63 % Response time t-90 % Guideline 2014/30/EU (EMC) 2011/65/EU (RoHS) EU declaration of conformity You can find the EU declaration of conformity on the Testo website www.testo.com under the product-specific downloads.

  • Page 23: Testo 190-T2

    ± 5 s in 12 h Response time t-63 % Response time t-90 % Guideline 2014/30/EU (EMC) 2011/65/EU (RoHS) EU declaration of conformity You can find the EU declaration of conformity on the Testo website www.testo.com under the product-specific downloads.

  • Page 24: Testo 190-T3

    ± 5 s in 12 h Response time t-63 % Response time t-90 % Guideline 2014/30/EU (EMC) 2011/65/EU (RoHS) EU declaration of conformity You can find the EU declaration of conformity on the Testo website www.testo.com under the product-specific downloads.

  • Page 25: Testo 190-T4

    ± 5 s in 12 h Response time t-63 % Response time t-90 % Guideline 2014/30/EU (EMC) 2011/65/EU (RoHS) EU declaration of conformity You can find the EU declaration of conformity on the Testo website www.testo.com under the product-specific downloads.

  • Page 26: Testo 190-P1

    ± 5 s in 12 h Response time t-63 % 0.2 s Response time t-90 % 0.2 s Guideline 2014/30/EU (EMC) 2011/65/EU (RoHS) EU declaration of conformity You can find the EU declaration of conformity on the Testo website www.testo.com under the product-specific downloads.

  • Page 27: Small Case With Readout Unit

    6 Technical data Small case with readout unit Feature Value Order no. 0516 1901 Material ABS + ABS-GF17 Field of application +10 °C to +40 °C Storage temperature -20 °C to +70 °C Dimensions 340 x 270 x 60 mm (length/width/height) Colour White...

  • Page 28: Accessories And Spare Parts

    190-T4, CFR temperature data logger including 0572 1904 large battery, short distance adapter for programming and readout unit and calibration protocol testo 190-P1, CFR pressure data logger including large 0572 1900 battery and calibration protocol Small battery 0515 1900...
  • Page 29 Testo SE & Co. KGaA Celsiusstr. 2 79822 Titisee-Neustadt Germany Tel.: +49 7653 681-0 e-mail: info@testo.de www.testo.com 0970 1900 en 06...
