2 Description of the instrument ............... 6 2.1 Use ......................6 2.2 Overview ....................7 2.2.1 testo 160 TH, 160 THE, 160 THL, 160 E ........7 2.2.2 testo 160 IAQ ................8 3 Commissioning ..................9 3.1 Inserting into / removing from the wall bracket ........9 3.2 Starting up the data logger ..............
1 Safety and waste disposal Please read this instruction manual through carefully and familiarize yourself with the product before putting it to use. You will find detailed instructions in the login area of the respective Testo solution at: www.testo.com/login. 1 Safety and waste disposal 1.1 About this document...
• Only perform maintenance and repair work on this instrument that is described in the documentation. Follow the prescribed steps exactly. Use only original spare parts from Testo. Batteries • Improper use of batteries may cause destruction of the batteries, injuries due to current surges, fire or the escape of chemicals.
Dispose of spent batteries in accordance with the relevant legal specifications. • At the end of its useful life, send the product to the separate collection for electric and electronic devices (observe local regulations) or return the product to Testo for disposal.

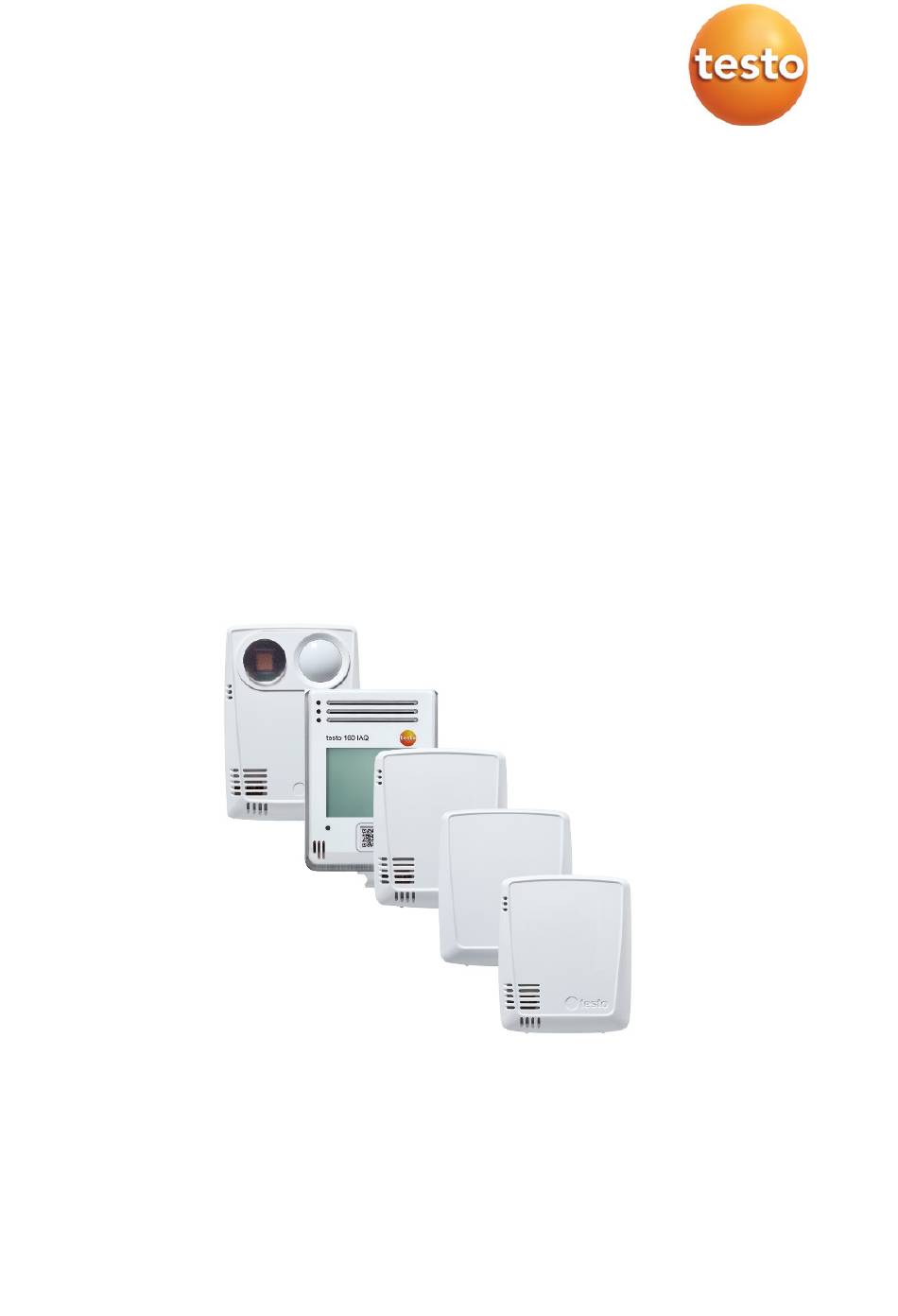

2 Description of the instrument 2 Description of the instrument 2.1 Use The testo 160 TH, THE, THL, THG, IAQ and E data loggers are handy measuring instruments for measuring temperature, humidity, CO concentration, illuminance and UV. The external probes S-TH, S-LuxUV and S-Lux are only approved in conjunction with the testo 160 THE and testo 160 E data loggers.
Use the testo 160 TH data logger to carry out temperature and humidity measurements. Use the testo 160 THE data logger to carry out temperature and humidity measurements. The external probes S-TH, S-LuxUV and S- Lux can also be connected.
2 Description of the instrument 2.2.2 testo 160 IAQ Use the testo 160 IAQ data logger to carry out temperature, humidity, carbon dioxide concentration and atmospheric pressure measurements. Element Element 1 Status LED 2 Display 3 Air quality light 4 CO...
3 Commissioning 3 Commissioning 3.1 Inserting into / removing from the wall bracket - Insert the unlocking tool into the unlocking opening. - Push back the locking pin using the unlocking tool. - Pull the data logger up and out of the wall bracket.
You need an account for the Testo Cloud. If you have not yet set this up, please sign up at https://www.museum.saveris.net. For your new testo 160 WiFi data logger to be able to connect to your account in the Testo Cloud, it requires the three following pieces of information at minimum: 1.
3 Commissioning 3.4 Status LED signals The following table provides an overview of the meaning of the various status LED signals of the testo 160 WiFi data logger. Signal Description LED does not flash (TH, E, THE, THL) Sleep mode...
In many applications, it is recommended that you recalibrate the loggers every 12 months. This can be carried out by Testo Industrial Services (TIS) or other certified service providers with the aid of easy-to-use service software. Please contact Testo for further information.
Damage to the humidity probe - The probe must never be exposed to a humidity level of 100 % RH for longer than 3 days. WiFi data loggers testo 160 TH testo 160 THE testo 160 E Order number 0572 2021 0572 2023...
Page 14
4 Technical data WiFi data loggers testo 160 IAQ testo 160 THL Temperature measurement Measuring range 0 °C to 50 °C -10 °C to 50 °C Accuracy ± 0.5 °C ± 0.5 °C Resolution 0.1 °C 0.1 °C Humidity measurement...
Page 15
WPA Personal, WPA2 (AES), WPA (TKIP), WEP Technical data for a secure wireless LAN Ports The testo 160 WiFi data loggers use the MQTT protocol, which communicates via port TCP 1883 and 8883. These UDP port approvals are also required: •...
Page 16
Static IP is used (select Expert mode for the corresponding information). (Not possible in the Setup assistant.) testo 160 application The testo 160 application is accessible via a normal, up-to-date browser (www). The standard TCP ports http (80) and https (443) are used.
Page 17
4 Technical data WiFi data testo 160 IAQ testo 160 E loggers Storage 0 °C to 50 °C -20 °C to 50 °C temperature Protection class IP20 Measuring cycle Depends on the Cloud Depends on the Cloud licence licence Basic: 15 min to 24 h /...
Page 20
Country Comments Europa + EFTA The EU Declaration of Conformity can be found on the testo homepage www.testo.com under the product specific downloads. EU countries: Belgium (BE), Bulgaria (BG), Denmark (DK), Germany (DE), Estonia (EE), Finland (FI), France (FR), Greece (GR), Ireland...
Page 21
5 Authorizations Country Comments Wi-Fi-Module Feature Values WLAN Range 100 m WLAN type LSD4WF0459-01D0 WLAN radio class Accord with the standard of IEEE 802.11b/g/n Company Lierda Technology Group co., LTD RF Band 2412-2472MHz Transmitter Power 13.42dBm IC Warnings: This instrument complies with Part 15C of the FCC Rules and Industry Canada RSS-210 (revision 8).
Page 22
5 Authorizations However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •...
