Part 2 Embroidery Design Input Operation

The embroidery design management interface is to input embroidery designs from the USB
drive into memory. It can be operated in both the embroidery preparation status and operation
status.
The system supports reading both Tajima DST and Barudan DSB formats of embroidery
design files.
Before reading the embroidery design, insert the USB device into the USB interface.

2.1 Input USB Drive Design to Memory

After USB drive is inserted, press
management interface. It will read the contents in USB drive, as in the following Fig. 1.
Select the embroidery design to input. Multi-option is available (which requires software
support.) Design stitch number (ST), number of color change (CO), size (+X,-X, +Y,-Y) and
other related information and thumbnail are displayed on the right side. Press
key to save into the memory of the machine. A text box that reads "Loading" pops up
automatically. After input is completed, it returns to design management interface automatically
and it can continue taking input operation.
Once it enters into subdirectory of input operation, press
PTCS-7S Computerized Embroidery Machine Operation Manual V2.1
key to enter into embroidery design

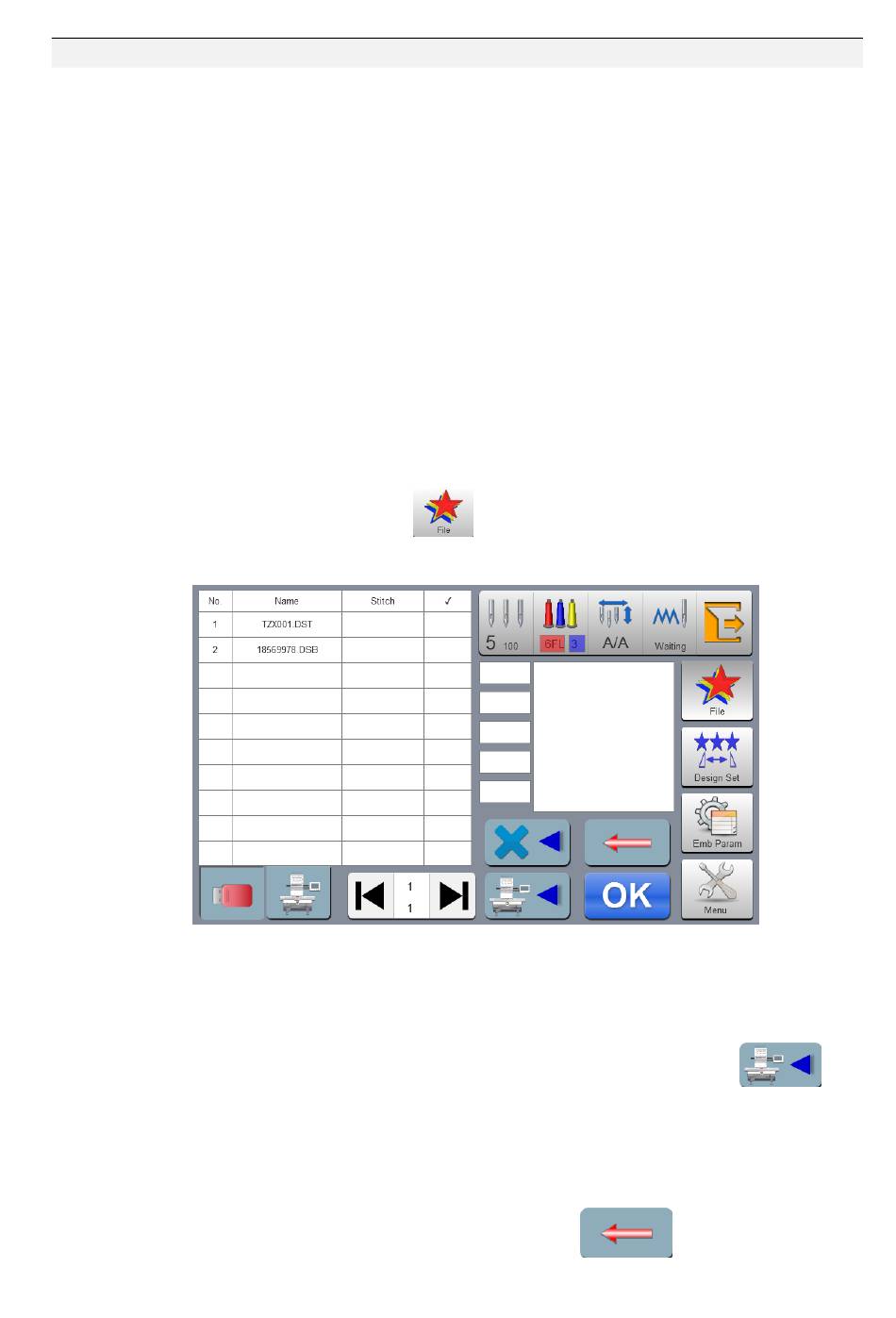

Figure 1
key to return to
