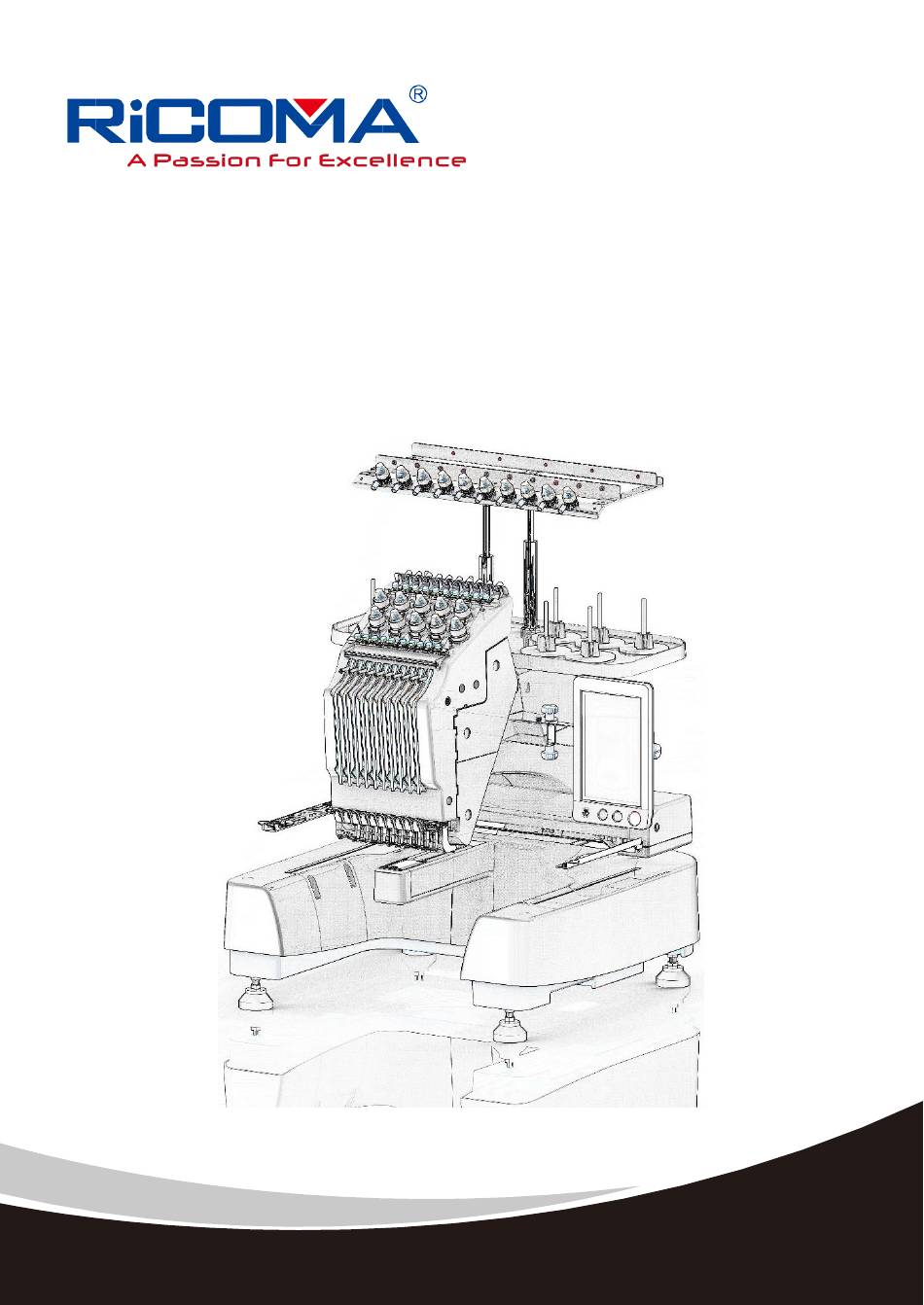

- Page 1 E M - 1 0 1 0 Operation Manual...
-
Page 2: Table Of Contents
EM Series Home Embroidery Machine Operation Manual Contents IMPORTANT ............................04 INTRODUCTION ...........................04 SAFETY NOTES .............................04 Danger-To prevent electric shock ......................04 Warning-To prevent burn, fire, electric shock or personal injury .............04 1.Before applying with lubrication oil or conducting other maintenance and adjustment operation specified herein, please pull out power plug from socket .......................04 2.Stop operating the machine in case power lines or plugs are damaged. -
Page 4: Insert Storage Medium (To Usb Port On The Side Of Operation Head) Enter Pattern Selection Interface By Touching , As Shown Below
EM Series Home Embroidery Machine Operation Manual Removal of bobbin case ...........................1 8 1.Open bobbin case ..........................18 2.If thread hook is not forward, pull it forward ..................18 3.Grab bobbin case bolt, and take out bobbin case ..................19 4.Add oil for machine ..........................19 5.After adding engine oil, insert bobbin case into bobbin and screw on ............19 Bobbin installation ..........................19 1.Put bobbin into bobbin case........................19... - Page 5 EM Series Home Embroidery Machine Operation Manual VIII. CHECK EMBROIDERY AREA ......................27 IX. BOTTOM THREADING........................27 1.Pull out thread from bobbin, and lead thread respectively through the thread guide hole , raise tension regulating clip to press thread beneath, as shown below .............28 ，clamp thread with the clip on threader and pull thread out to ensure 2.Lead threader through thread guide...
-
Page 6: Important
EM Series Home Embroidery Machine Operation Manual ©Copyright 2012 RiCOMA (SHENZHEN) CO., LTD. All right reserved. Add: Baochangli Industry Park, Jinlong Road 3,Baolong Community, Longgang District,Shenzhen, PRC Tel: +86-755-2585 7772 Fax: +86-755-2585 7773 IMPORTANT: READ BEFORE DOWNLOADING, COPYING, INSTALLING OR USING. -
Page 7: Keep Work Area Clean
•In case of machine failure or necessary adjustment, please refer to the Trouble Removal Table in the operating instruction, check and adjust the machine and if failed to solve the problem, please consult with local authorized RiCOMA dealer. For detailed product information or upgrade, please visit our websites: www.ricoma.us... -
Page 8: License Agreement
RiCOMA patented product data, software and document (collectively the “Content”) is provided together with the machine. The use of the contents shall mean acceptance of clauses herein. RiCOMA shall reserve the right to the contents accompanied and the copies related and in accordance with clauses herein, you (“User”) are authorized with the right relating to contents (not sale). -
Page 9: Chapter I Machine Structure And Functions
EM Series Home Embroidery Machine Operation Manual Chapter I Machine structure and functions 1.Ten-needle embroidery machine The machine is designed with 10 needles, each specifically for embroidery thread of different color. By setting color and automatic color change for each needle bar, user may embroider the design of various colors. The device that enables needle moving upward or downward is called needle bar in needle bar box. -
Page 10: Move Needle Bar At Any Time Or Thread The Selected Needle Bar
EM Series Home Embroidery Machine Operation Manual Move needle bar at any time or thread the selected needle bar When the design is selected, edited or embroidered, user may randomly thread any needle bar or move needle bar to current embroidery position. Safety device The machine is equipped with a locking feature to prevent personal injury caused by accidental operation. -
Page 11: Chapter Ii Machine Part Name And Corresponding Functions
EM Series Home Embroidery Machine Operation Manual Chapter II Machine part name and corresponding functions The name and functions of embroidery machine parts are provided below. Before using embroidery machine, please read carefully instructions to know embroidery machine parts. Front view Functional description Name Threading mechanism... -
Page 12: Operation Panel
EM Series Home Embroidery Machine Operation Manual Right/rear view Functional description Name Able to input or output embroidery design vis USB by directly USB port inserting USB media into USB port Support embroidery design transmission after multiple units are Network port connected with computer Able to turn off/on the machine by controlling main power source Power switch... -
Page 13: Chapter Iii Accessories
EM Series Home Embroidery Machine Operation Manual Chapter III Accessories The following accessories are provided. Please only use the accessories specifically designed for the machine. After unpacking, please find the following accessories. If anything is missing or damaged, please contact your RiCOMA dealer. Tubular Tubular Tubular... -
Page 14: Installation Position
EM Series Home Embroidery Machine Operation Manual Installation position Please install machine at a place compliant with the following requirements: •Machine shall be positioned at least 50mm (2 inches) away from wall. •Sufficient space shall be reserved around the machine. •Do not place any object within the movement range of embroidery frame. -
Page 15: Machine Installation
EM Series Home Embroidery Machine Operation Manual Machine installation During installation, keep the machine stable by adjusting four anchors. 1.Ensure all protection films on the machine and all packing materials have been removed. 2.Leave sufficient space for machine installation. 3.Keep machine stable by adjusting the four anchors. Adjust the screw on the anchor with a wrench. - Page 16 EM Series Home Embroidery Machine Operation Manual 1: Manual screw 6.Assemble thread rack & base 1.Take the thread base and combine them in 2.Tighten thread base with four M4x8 screws. place according to the arrow shown below. 1：Thread base M4x8 screws 3.Select thread base reinforcing plate #2, connect 4.Select 10 bobbin columns 2 and install them on the plate with thread base with 8 M4x8 screws and...
- Page 17 EM Series Home Embroidery Machine Operation Manual 5.Take 10 cone mats #2 and put them on thread nails. 6.Take and put 10 cone mats on thread nails at the central position properly. 1.Thread base 1.Thread base 2.Cone mat 2.Cone sleeve 7.Loosen two screws 2 on thread rack guide tube with 8.Install thread rack module on thread base, and Allen wrench, pull out thread rack guide tube upward...
- Page 18 EM Series Home Embroidery Machine Operation Manual 7.Install embroidery frame stand Align the hole of embroidery frame stand with the dowel on connecting plate. 1.Embroidery frame stand 2.Embroidery frame connecting plate Lock embroidery frame connecting plate with embroidery frame with two M4x8 screws. 1.M4x8 screw 2.Embroidery frame stand Preparation before embroidery is finished.
-
Page 19: Chapter Vi Operation Precautions
EM Series Home Embroidery Machine Operation Manual Chapter VI Operation precautions Notes for correct machine operation are described below. 1.Precautions for power supply Please observe the following precautions for power supply. 1.AC 90~240V for the machine, and other power sources may give rise to fire, electric shock or machine damage. 2.Be sure power plugs are securely inserted into embroidery machine's power socket. -
Page 20: Chapter Vii Basic Steps
EM Series Home Embroidery Machine Operation Manual Chapter VII Basic steps Basic embroidery steps are described below. Before embroidery machine operation, please confirm the following steps. Step Operation Reference page Bobbin installation Refer to page 28 Turning on Refer to page 30 Input design Refer to page 32 Select embroidery design... -
Page 21: Grab Bobbin Case Bolt, And Take Out Bobbin Case
EM Series Home Embroidery Machine Operation Manual 3.Grab bobbin case bolt, and take out bobbin case. 4.Add oil for machine After removal of bobbin case, add oil for machine and then add oil to rotary hook. 1.Open a small hole on oil pot. 2.Add oil here. -
Page 22: Bobbin Case Installation
EM Series Home Embroidery Machine Operation Manual Bobbin case installation 1.Insert bobbin case in rotary hook Align the protruding part of bobbin case with the grooving of rotary hook, and insert into rotary hook, as shown below. 2.Completely insert bobbin case until clamped in place 3.Close hook cover II. -
Page 23: (Namely Initial Position)
EM Series Home Embroidery Machine Operation Manual 4.When machine is turned on, needle bar rack will automatically move to the position of 5# needle bar (namely initial position). To prevent injury, keep hands and other objects away from needle bar rack. Operating interface description After machine is turned on, user may proceed with the following operations by using the operation panel Functional description... -
Page 24: Input Pattern
EM Series Home Embroidery Machine Operation Manual III. Input pattern Basic operating procedures are as follows: 1.Insert storage media (to USB port on the side of control panel) Enter design selection interface by touching , as shown below: 2.Access storage media list by touching 3.Select design by touching ,would display behind the design selected. -
Page 25: Select Embroidery Pattern
EM Series Home Embroidery Machine Operation Manual IV. Select embroidery design For instance, we select the design shown below. 1.View the design selected by touching to select design,confirm it by clicking 2.Select machine memory by touching ,and touch ,then the following page will show up. -
Page 26: Select Embroidery Frame
EM Series Home Embroidery Machine Operation Manual V. Select embroidery frame After selecting embroidery design, select and confirm the embroidery frame for the design in the system. 1.Enter design setting interface by touching 2.Enter frame selection screen by touching , and click on OK for confirmation. 3.Select embroidery frame D by touching Four sizes of frame are available. -
Page 27: Put Cloth In Embroidery Frame
EM Series Home Embroidery Machine Operation Manual VI. Put cloth in embroidery frame According to the frame size selected, select the cloth and the frame included in the machine, and put the cloth in embroidery frame. •If cloth is not tight, design would be skew and cloth would be wrinkled. Please stretch cloth in embroidery frame with the following steps. -
Page 28: Install Embroidery Frame On The Machine
EM Series Home Embroidery Machine Operation Manual VII. Install embroidery frame on the machine •If embroidery frame is not correctly installed, embroidery frame may affect presser foot and damage machine, or cause personal injury. •When embroidery frame is installed, be sure Start/Stop button shows red light. If embroidery machine accidentally starts operation, personal injury may be caused. -
Page 29: Move Toward The Machine, And Keep The Hole Of Embroidery Frame On The Location Pin Of Frame Stand
EM Series Home Embroidery Machine Operation Manual 4.Grab embroidery frame horizontally, align left and right side simultaneously with the embroidery frame support clamp, move toward the machine, and keep the hole of embroidery frame on the location pin of frame stand. Notes: To prevent embroidery frame from colliding with needle plate, keep needle plate beneath embroidery zone while installing the embroidery frame. -
Page 30: Tension Regulating Clip To Press Thread Beneath, As Shown Below
EM Series Home Embroidery Machine Operation Manual Place the thread cone of desired color on the thread base. Put thread cone in the center for correct thread feeding, and prevent thread from tangling. The number represents the threading path for each needle bar. ，... -
Page 31: Pull Downward By Force To Cut Thread By The Cutter Inside
EM Series Home Embroidery Machine Operation Manual Lead thread through take-up-lever hole from right to the left as shown below. 5.When thread is led through thread distribution plate 6.Lead thread through needle bar guide groove in the following figure, then as shown below, ensure thread bypass thread at the position distribution plate from right to the left, then through... -
Page 32: Off, Needle Bar Case Will Automatically Move To The Position Of 2Nd Color And Start Embroidery
EM Series Home Embroidery Machine Operation Manual 2.After the first color is embroidered, machine will automatically stop and the thread is trimmed, and needle bar case will automatically move to the position of the 2 color and start embroidery. 3.It will continue until the last color is completed, and then the embroidery machine will automatically stop. -
Page 33: Take Off Embroidery Frame And Cloth
EM Series Home Embroidery Machine Operation Manual Notes: •Under normal condition, user should temporarily stop embroidery mac h i n e a n d c h e c k t h r e a d t e n s i on after first 100 stitches of each color. -
Page 34: Quick Reference Guide For Interface
EM Series Home Embroidery Machine Operation Manual VIII. Quick reference guide for interface The description of buttons in the figure and other information is provided in the following table. 1.Main interface Display Embroidery Function Remarks mode Name switchover Embroidery Display parameter design S e t t i n g k e y... -
Page 35: Design Selection And Management Interface
EM Series Home Embroidery Machine Operation Manual One-step tracing Control frame key to check movement in Left key X direction embroidery range Switch over Control frame high/low speed movement in of frame movement and raise/lower Lower key Selection key Y direction machine speed Return to Control frame... -
Page 36: Comprehensive Setting Interface
EM Series Home Embroidery Machine Operation Manual 4.Pattern setting interface Display Function Remark Name X-direction scaling Design rotation angle Number of X-direction array X-direction array space Satin stitch compensation Y-direction scaling Design rotation angle Number of Y-direction array X-direction array space Status of current embroidery frame... -
Page 37: Other Basic Steps
EM Series Home Embroidery Machine Operation Manual IX. Other basic steps 1.Needle replacement •In case of needle bending or needle point breakage, please replace with a new one by using the screwdriver included. •Shut down embroidery machine • Loos en needle p o s i t i o n i n g s crew and •Keep the flat side at needle remove the needle point facing the front of machine,...
Need help?
Do you have a question about the EM-1010 and is the answer not in the manual?
Questions and answers
Drop needle and won't move, The machine is on 100. I turn machine off and on to see if it center self all it did was make noise. you can't reach screw to level up.
The needle on the Ricoma EM-1010 may be dropping and not moving due to incorrect positioning or installation. Ensure the needle scarf is facing the back of the machine. If the needle is not positioned correctly, the machine will not function properly. Additionally, check for broken needle pieces in the bobbin area and replace the needle if necessary. If the issue persists, consider contacting a qualified technician.
This answer is automatically generated
I have a Ricoma EM 1010 with less than 100 hours on it that i bought new from Ricoma. It embroiders fine until it makes this noise then it stops. I will say axis not at 100 degrees, so I push button and it says no needle found. When it stops the needle will stay down. So shut machine off and the hand wheel in the back will not turn until I can get the needle pushed back up by hand. I will turn the machine back on and push the button and it find the needle and goes back to the 100 degree mark and run until it stops again. Some times it runs for 100 stitches and sometime 100,000 stitches before it does it again. Any suggestions on how to fix this? I have reached out to Ricoma with no responses. Thank you!
To troubleshoot a Ricoma EM-1010 that stops embroidering and displays a "no needle found" error, follow these steps:
1. Remove any broken needle pieces using tweezers.
2. Loosen the needle screw with a screwdriver.
3. Remove the broken or missing needle.
4. Insert a new needle, making sure the big groove and needle hole face forward.
5. Tighten the screw securely.
6. Thread the needle from front to back and under the presser foot.
These steps ensure the needle is correctly installed and detected by the machine.
This answer is automatically generated
