Ricoma EM-1010 Operation Manual
  1. Manuals
  2. Brands
  3. Ricoma Manuals
  4. Sewing Machine
  5. EM-1010
  6. Operation manual

Ricoma EM-1010 Operation Manual

Home embroidery machine
Hide thumbs Also See for EM-1010:
Table of Contents

Advertisement

Quick Links

Address: str. Teatralnaya 2 / 202A,
Dnipro, UKRAINE
Website: www.Overlock.com.ua
Phone: 0800 210 034
Mail: brother1034@ukr.net

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EM-1010 and is the answer not in the manual?

Questions and answers

delia
March 6, 2025

test embroidery machine check head will move

0
1 comments:
Mr. Anderson
March 6, 2025

To test if the Ricoma EM-1010 embroidery machine head will move, perform an embroidery design tracing:

1. Press the trace design icon.
- The embroidery hoop may automatically move within the maximum design range.
- If the needle position is incorrect, the machine will adjust itself.

2. A message stating, “Enter embroidery status?” will display.

3. Press OK.

This process verifies whether the embroidery machine head moves correctly.

This answer is automatically generated

0
delia
March 6, 2025

test embroidery machine to see if the hrad

0
1 comments:
Mr. Anderson
March 6, 2025

To test if the Ricoma EM-1010 embroidery machine's head is functioning properly, follow these steps:

1. Check Thread Path – Ensure the thread follows the correct path from the thread cone to the needle.
2. Inspect Needles – Verify that the needles are not defective and are inserted properly.
3. Check Thread Tension – Ensure the tension is not too tight or too loose to prevent thread breaks or looping.
4. Examine Hook Timing – If thread breaks occur frequently on all needles, adjust the hook timing.
5. Verify Bobbin Installation – Ensure the bobbin is installed correctly and the supply is adequate.
6. Clean Bobbin Case – Remove any lint or dirt buildup from the bobbin case.
7. Check Thread Trimmer – Ensure the thread trimmer knife is fully retracted.
8. Perform a Manual Trim – If no thread break is apparent, manually trim the thread.
9. Rotate Degree Knob – Turn the degree knob at the back of the machine to 100 degrees and press the 100-degree button.

If issues persist, contact the dealer where the machine was purchased.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Ricoma EM-1010

Summary of Contents for Ricoma EM-1010

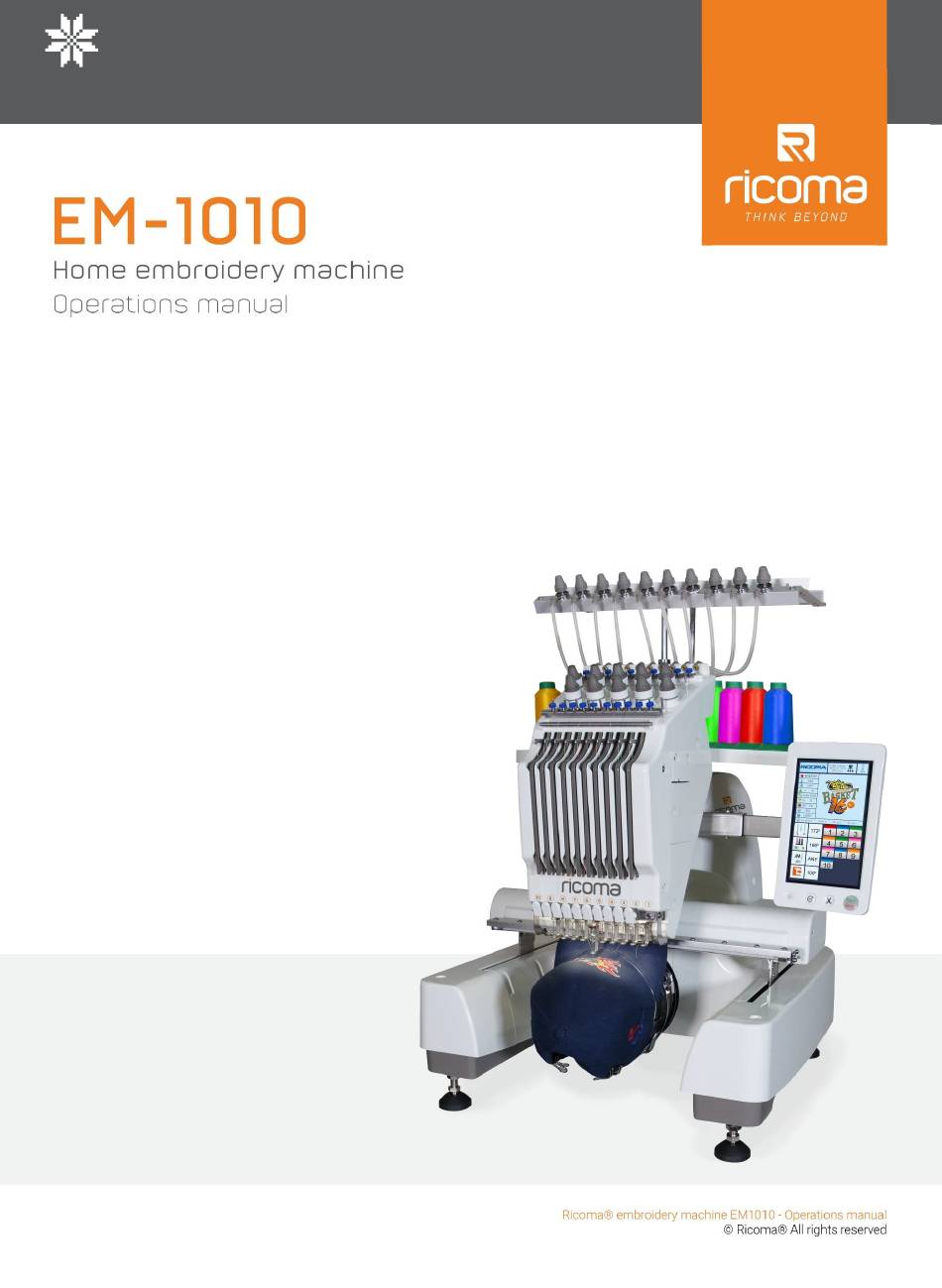

  • Page 1 Address: str. Teatralnaya 2 / 202A, Dnipro, UKRAINE Website: www.Overlock.com.ua Phone: 0800 210 034 Mail: brother1034@ukr.net...
  • Page 2 © 2016 Ricoma® All rights reserved. Ricoma® and Ricoma® logo are registered trademarks of Ricoma® (SHENZHEN) CO., LTD. Products mentioned herein are for identification purposes only and may be registered trademarks or trademarks of their respective companies. All other brand names, trademarks or registered trademarks are...

  • Page 3: Table Of Contents

    Introduction ..............................8 Intel® license agreement ..........................9 Compliance & wattage ..........................9 Customer service & support & training ...................... 10 Read all instructions prior to operating ....................11 Important safeguards and warnings ....................12 Tool box & spare parts ..........................15 Embroidery machine assembly ........................
  • Page 4 Threading a needle ..........................42 Changing the spool ..........................43 Knot tying ..............................44 Trimming ..............................44 Thread fiber choices ..........................45 Rayon thread ............................45 Polyester thread ..........................45 Metallic thread ............................ 46 Cotton thread ............................46 Thread consumption ..........................46 Backing ................................
  • Page 5 Sweater knit ............................51 Sweatshirt ............................... 51 T-shirt ..............................51 Terry cloth ............................... 51 Before getting started ..........................52 Getting started ............................53 Turning on ............................... 53 Turning off ............................... 53 Control panel overview ..........................54 Home page .............................. 55 Logo selection page ..........................
  • Page 6 How to abort a job ..........................70 How to adjust speed ..........................70 How to bring the frame out ........................71 Embroidery hoop & flat frame support ...................... 72 Flat frame support installation ....................... 73 Installing embroidery hoop & adjusting flat frame support ..............74 Framing fabric ............................
  • Page 7 Light ballpoint ............................. 87 Medium ballpoint..........................87 Needle replacement ..........................88 Completing a flat design (start to finish) ....................89 Prepare ..............................89 Embroider ............................89 Completing a caps design (start to finish)....................90 Prepare ..............................90 Embroider ............................90 Maintenance &...

  • Page 8: Introduction

    Miami, Florida. With these quality standards, Ricoma is proud of and recognized for its quality products. Commitment to service...

  • Page 9: Intel® License Agreement

    All information provided related to future Intel® products and plans is preliminary and subject to change at any time, without notice. Than ISO Compliant 110V/60Hz or 220V/50Hz available Page 9 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 10: Customer Service & Support & Training

    At Ricoma®, we are dedicated to providing the best customer service, support and training. Our trained and certified technical staff is ready to help you. Whether you are a beginner or veteran embroiderer, our professional instructors have years of experience in the industry and can help you understand and operate your embroidery machine at your own pace and schedule.

  • Page 11: Read All Instructions Prior To Operating

    To address any questions relating to ordering parts, operating the 10-needle home embroidery  machine with the 7-inch HD LCD touch-screen panel, troubleshooting, maintenance or service, please contact your local dealer. Page 11 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 12: Important Safeguards And Warnings

    Do NOT leave the embroidery machine unattended while in use, and press “Stop” in the case of an emergency.  See the Turning off section for more information. Page 12 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 13 Do NOT use the embroidery machine on an unstable surface. Place the embroidery machine on a stable,  leveled, and durable surface or use the EM-1010 embroidery machine stand. Do NOT use the EM-1010 embroidery machine stand to store anything else but the embroidery machine and  its accessories.
  • Page 14 Three-prong plug: The EM-1010 embroidery machine has a 3-prong plug. To reduce the risk of electric shock,  this plug is intended to fit into the outlet only one way. If the plug does not fully fit into the outlet, contact a qualified electrician.

  • Page 15: Tool Box & Spare Parts

    Thread post Thread disc pad Thread disc sponge pad Threading pipe set-270 Threading steel – ￠1.4 mm by 400 mm Spare parts box-D type Multi-functional open wrench Page 15 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 16: Embroidery Machine Assembly

     2 table legs  2 connection plates  Hex head nuts 1 table  Washers Screws Casters Lock washers Figure 1 MODEL: ST-10 Figure 2 Page 16 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 17 At the same time, insert the second Allen wrench into the hex head nut end and begin to turn the Allen wrench clockwise. 9. Repeat step eight (8) for the remaining eleven (11) screws. Page 17 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 18 12. Turn the stand around and place the table on top of the connecting plates. See Figure 8. Table location (not shown) Connecting plate Caster Plastic protection Level peg Figure 8 Page 18 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 19: Thread Rack Assembly

    TRPs. See Figure 13.  No. 1 – Screw locations No. 2 – Reinforcement plate   No. 3 – Thread rack plates Figure 13 Page 19 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 20: Thread Stand Assembly

    6. Turn the thread rack around, add the lock nuts previously removed, and tighten them. See Figure 16.  No. 1 – Thread stand column  No. 2 – Thread rack  No. 3 – Lock nut location Figure 16 Page 20 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 21 15. Place the sponge cushions on top of all ten thread pins, then push them through to the end. See Figure 19. Sponge cushion Figure 19 Page 21 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 22 20. Remove the thread knot found on all ten (10) thread spools and allow the threads to hang. 21. See the Threading the embroidery machine/top threading section for instructions on how to thread your machine. This section intentionally left blank. Page 22 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 23: Unpacking Your Embroidery Machine

    Use caution. Align the embroidery base feet with the rivets found on top of the embroidery machine stand. See Figure Rivets Figure 22 Remove the protection film. Page 23 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 24: Adjust & Secure Your Embroidery Machine

    4. Tilt the color LCD touch-screen panel by loosening the panel adjusting knob, then tighten it again to hold the panel in place. See Figure 24. Page 24 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 25: Embroidery Machine & Embroidery Hoops Overview

    11. Lower thread tension knob 12. Lower thread tension clip 13. Needle bar frame 14. Flat frame support 15. Lower threading mechanism 16. Bobbin housing unit Page 25 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 26: Rear View

    1. Thread guide rack 2. Plastic thread reel 3. 10 thread spool base 4. Manual wheel 5. Power cord 6. Power switch (On/Off) Figure 26 Page 26 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 27 1. Left embroidery frame holder  Adjusts to fit different embroidery frames 2. Right embroidery frame holder 3. Embroidery hoop location Figure 27 Page 27 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 28: Embroidery Hoop Specifications

    70 by 50 mm Embroidery hoop A 110 by 110 mm Embroidery hoop B 190 by 140 mm Embroidery hoop C 310 by 210 mm Embroidery hoop D Page 28 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 29: Touch Screen

    5. Color LCD touch-screen panel Figure 28 1. Computer network interface (insert internet cable) 2. USB port 3. Panel adjusting knob 4. Panel arm adjusting knobs Figure 29 Page 29 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 30 Displays embroidery machine software version, date, time Embroidery machine and embroidery machine’s IP address networking process Page 30 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 31: Bobbin Overview

    On average, bobbins usually last for about 35,000 to 42,000 stitches depending on the  stitch length of your design. Figure 31 Page 31 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 32: Placing The Bobbin Into The Bobbin Case

    Ensure the bobbin rotates in a clockwise direction. See No. 4 in Figure 33. Figure 33 Wrap the thread around the pigtail twice. See Figure 34. Figure 34 Page 32 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 33: Placing The Bobbin Case Into The Rotary Hook

    Push in the bobbin case slightly and ensure the bobbin case clicks into place. See Figure 36. Figure 36 Close the bobbin housing unit. See Figure 37. Figure 37 Page 33 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 34: Bobbin Removal

    4. Gently remove the bobbin case from the machine. Release Latch 5. Remove the empty or nearly empty bobbin from the bobbin case and discard or rewind. Figure 40 Page 34 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 35: Bobbin Fiber Choices

    Allows 127 yards to be held on a standard style “L” bobbin  Can run a higher tension on both the top and bottom  More expensive  Page 35 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 36: Spun Polyester

    When using this type of bobbin, a gunmetal colored pieced in the bobbin case, called the brake, might need to be removed. This section intentionally left blank. Page 36 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 37: Thread Overview

    Spool #1 Back metal rack Front metal rack Figure 41 Raised lines (10) Top tensioners #s 1-10 Bottom tensioners/Thread break sensor wheel #s 1-10 Figure 42 Page 37 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 38 Machine head Bottom thread course area Figure 44 Figure 43 Presser foot Start Threaded embroidery machine Example: Needle 1 Figure 45 Page 38 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 39 Grab the remaining plastic end and pull up and  then out. 8. Grab the threading tool. Figure 49 Page 39 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 40 18. Continue the thread to the lower pressing clip. Place the thread underneath the clip so the thread stays in place. See No. 4 in Figure Figure 51 Page 40 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 41: Threading A Needle

    24. Take the thread back down and through the bottom eyelet. See No. 2 in Figure 54. 25. Proceed with the Threading a needle section to complete the threading process. Page 41 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 42 4. Pull the thread up and around the bottom thread course, from the left to the right. See No. 3 in Figure 55. The extra thread will be cut.  Figure 55 This section intentionally left blank. Page 42 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 43: Changing The Spool

    Figure 59 If the knot does not make it past the needle, cut the thread and try passing it through the needle and presser foot again Page 43 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 44: Knot Tying

    1. Locate the icon that displays the scissors icon. 2. Press the scissors icon button. 3. Watch your embroidery machine trim the thread. This section intentionally left blank. Page 44 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 45: Thread Fiber Choices

    Good choice for items that will be subjected to sunlight, chlorine or harsh laundering  Polyester is stiffer than rayon, and it may require some tension or spring adjustment  Page 45 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 46: Metallic Thread

    Bobbin thread yield is about 25,000 to 30,000 stitches per bobbin for style “L.”   The amount of yards per bobbin varies according to thread type. This section intentionally left blank. Page 46 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 47: Backing

    Best used on knits, since it prevents the design from stretching out with frequent washing or  wearing When choosing cut-away:  Lightweight for a design with a light stitch density  Heavyweight for dense designs  Page 47 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 48: Tear-Away

    Excess foam needs to be removed  Pieces that remain can be easily eliminated by applying a hot hair dryer over the area  Page 48 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 49: Poly Mesh Backing

    Cover up a finished piece of embroidery, such as an infant’s onesie, where the stitches and the  backing could irritate the baby’s skin This section intentionally left blank. Page 49 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 50: Backing & Needle Recommendations

    Use a light tear-away. We recommend using a 75/11 or 80/12 light ballpoint needle on stiff or spongy leather (upholstery luggage). We recommend using a 70/10 or 80/12 sharp needle on soft, supple garment leather. Page 50 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 51: Lingerie Or Silk

    Use a light, water-soluble tear-away or medium cut-away. We recommend using a 75/11 light ballpoint needle. Use a medium-weight, water-soluble tear-away and topping. We recommend using a 75/11 or 80/12 light ballpoint needle. This section intentionally left blank. Page 51 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 52 Do not plug the embroidery machine into the socket until the machine is set-up and ready to begin. Set the embroidery machine on a leveled, balanced and durable surface. Page 52 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 53 1. Move the main power switch to “O.” 2. Disconnect the power supply cord from the electrical outlet. 3. Disconnect the power supply cord from the embroidery machine. Figure 64 Page 53 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 54 Figure 65 Figure 66 Page #3 – Color sequence selection Page #4 – Design setting Page #5 – Comprehensive setting Figure 68 Figure 69 Figure 67 Page 54 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 55 Figure 70 Page 55 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 56 Display stitch floating mode direction One-step tracing key to check Embroidery parameter setting embroidery image Enter/exit ready status Contour tracing Comprehensive setting Go to end point Page 56 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 57 Save design in embroidery machine memory Figure 71 Icon Function Set offset point Low-speed embroidery Switching needle bar Color change mode Previous page Next page Figure 72 Page 57 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 58 X-direction array space Satin stitch compensation Y-direction scaling Design rotation angle Figure 73 Number of Y-direction array Y-direction array space Status of current embroidery frame Page 58 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 59 User restriction setting IP setting On-board lettering library Software information Origin operation Relieve user restriction Display color setting Power-on automatic Figure 74 resetting Language setting Embroidery machine testing Page 59 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 60 The embroidery machine will automatically stop. The Start/Stop button will illuminate red and a buzzer will sound. To stop 1. Press the Start/Stop button. Ensure the button illuminates RED Page 60 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 61 6. Press the transfer icon.  A message reading “Loading” will appear on the screen. 7. Press the OK button. This section intentionally left blank. Page 61 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 62 C hoop D Embroidery 260 by 60 mm 70 by 50 mm 110 by 110 mm 190 by 140 mm 310 x 210 mm Area Page 62 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 63 4. Repeat step two (2) until all colors and needle selections have been made. 5. Press the OK button. You will be taken back to the home screen.  This section intentionally left blank. Page 63 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 64 The EM-1010 has three (3) color change modes. The color change modes allow for a fully  automatic (A/A), semi-automatic (A/M) or manual (M/M) process. Color changes take place according to the color sequence selections made for the design. ...
  • Page 65 3. Once you have reached the desired position, press the stitch floating mode icon until you exit from the options. 4. Press the Start/Stop button to resume the embroidery. Page 65 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 66 Repeat steps three (3) and four (4) until all your needle selections have been made.  5. Press the OK button. You will be taken back to the home screen.  This section intentionally left blank. Page 66 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 67 This function is used for a manual trim of a desired thread.  1. Locate the icon that displays the scissors icon.  The thread is now trimmed. Page 67 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 68 The embroidery machine will now begin to trace the set design.  Follow the tracing needle to ensure that it stays within the embroidery hoop range. Page 68 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 69 7. Press OK. 8. Press the import to screen icon. 9. Press the escape button three (3) times.  You will be back at the home page. Page 69 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 70  If the increments button is displaying two (2) arrows, then the speed can be reduced or increased by 50 stitches per minute. Page 70 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 71 The embroidery hoop will move from underneath the needles. Press the frame offset icon.  The embroidery hoop will return the embroidery hoop back into position. This section intentionally left blank. Page 71 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 72 70 by 50 mm Embroidery hoop A Embroidery hoop B 110 by 110 mm Embroidery hoop C 190 by 140 mm Embroidery hoop D 310 by 210 mm Page 72 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 73 No. 1 – Screw to secure  the flat frame support to the embroidery frame connecting plate No. 2. Flat frame support  Figure 79 This section intentionally left blank. Page 73 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 74 Retighten the two (2) screws by turning them clockwise in order to secure the flat frame support. Grab the desired embroidery hoop. See the Flat frame support section for embroidery hoop details. Figure 80 Page 74 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 75 3. Lift and remove internal embroidery hoop. See Figure 83. Figure 83 Place the cloth with its top side up on the external embroidery frame. See Figure 84. Figure 84 Page 75 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 76 Make sure the cloth is stretched out and tight without any wrinkles.  Tap on the cloth and it should make a drum like sound.  This section intentionally left blank. Page 76 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 77 1. Remove the screw on the right side of the support. 2. Remove the screw on the left. 3. Pull the flat frame support up and release. This section intentionally left blank. Page 77 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 78 7. Match the outer holes of the set of holes. See Figure 89. Inner set of holes 8. Insert and tighten each screw. 9. Ensure the cap driver is tightly secured. Figure 89 Outer set of holes Page 78 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 79 11. Connect the clasp to the cap ring latch and snap it into place. 12. To remove from the cap station, release the three (3) latches positioned at 1 o’clock, 11 o’clock and 7 o’clock. Page 79 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 80 2. Disengage the cap driver from its connection to the metal stubs. Slide the cap driver away from the embroidery machine. This section intentionally left blank. Page 80 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 81 3. If the bobbin thread is more or less than one-third (1/3) of the stitch length, adjust the bobbin thread tension. See the Bobbin tension section for more information. Figure 90 Page 81 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 82 Experiment by making small quarter (1/4) turns until you feel comfortable with your design.   You can adjust the tension of your EM-1010 even while it is running. To have a great quality design make the following adjustments, if needed. ...
  • Page 83 For dark-colored rayon thread, rotate the top tension knob two to three (2-3) turns  counterclockwise. For black rayon thread, rotate the top tension knob three (3) turns counterclockwise.  Note: Correctly wound bobbin. Figure 94 Figure 93 Page 83 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 84 Look for performance changes on your machine such as thread breaks, poor stitch quality, fabric pulls, unusual noises or reduced stitching speed. Page 84 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 85: Sweatshirt

    Size 90/14 – Good needle for metallic thread. It has a larger eye. Used to sew canvases and belts, since it  is a very stiff needle. Page 85 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...
  • Page 86 100 – 130 100 – 130 0.32 0.34 50 – 60 60 – 70 80 – 100 130 – 150 0.36 This section intentionally left blank. Page 86 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 87: Light Ballpoint

    Designed to spread heavy yarns such as those used in heavy knitted fabrics.  Two (2) primary point types used for sewing and embroidering: sharp point and light ballpoint.   Medium ballpoint (SUK). Page 87 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 88: Needle Replacement

    6. Ensure the big groove and the needle scarf faces completely forward. See Figure 98. 7. Tighten the screw. See No. 2 in Figure 99. Figure 98 Figure 99 Page 88 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 89: Completing A Flat Design (Start To Finish)

    Embroider 6. Click on the file icon. 7. Select your design. 8. Press the EM-1010 icon alongside the blue arrow to import the design into the embroidery machine’s memory. 9. Now select the EM-1010 icon on the top row. 10. The last imported design will be the last one in the list. Select the desired design.

  • Page 90: Completing A Caps Design (Start To Finish)

    Embroider 7. Click on the file icon. 8. Select your design. 9. Press the EM-1010 icon alongside the blue arrow to import the design into the machine’s memory. 10. Now select the EM-1010 icon on the top row. 11. The last imported design will be the last one in the list. Select the desired design.

  • Page 91: Maintenance & Care

    #1, then to needle #10. Needle switch display icon  Figure 101 Apply lubrication oil to the level arms every week of continuous  use. Page 91 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 92: Head Rail

    Resist the temptation to blow the lint off the case – this deposits damaging saliva onto your bobbin case. You may use an air gun to blow/remove the lint from the bobbin case. Figure 104 Page 92 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 93: Troubleshooting

    Extremely short stitch lengths may cause the thread to pile up in one area. Known as nesting,  this issue causes thread to shred and break. Page 93 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 94: Prevention

    If the bobbin is not spinning freely, the odds are that it is not spinning freely in the embroidery machine either. Retest the case with another bobbin. This section intentionally left blank. Page 94 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 95: Timing Overview

    The space of the needle and the hook of 0.1 ~ 0.3 mm is proper. See Figure 106 for example.  Figure 106 This section intentionally left blank. Page 95 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 96: Error Messages

    5. Tighten the screw. 6. Thread the missing path. Figure 107 Make sure to thread the needle from  the front to the back and down presser foot. Page 96 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 97: Main Axis Not At 100 Degrees

    4. Press the 100-degree button. NOTE: If you are still experiencing issues, please contact your local dealer where you made your initial purchase. This section intentionally left blank. Page 97 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

  • Page 98: Quick Reference Guide/Checklist

    Select embroidery hoop Put cloth in embroidery hoop Install embroidery hoop onto the embroidery machine Check embroidery area Start embroidery Remove embroidery hoop and cloth Turning off Page 98 Ricoma® embroidery machine EM1010 – Operations manual © Ricoma® All rights reserved...

Table of Contents
